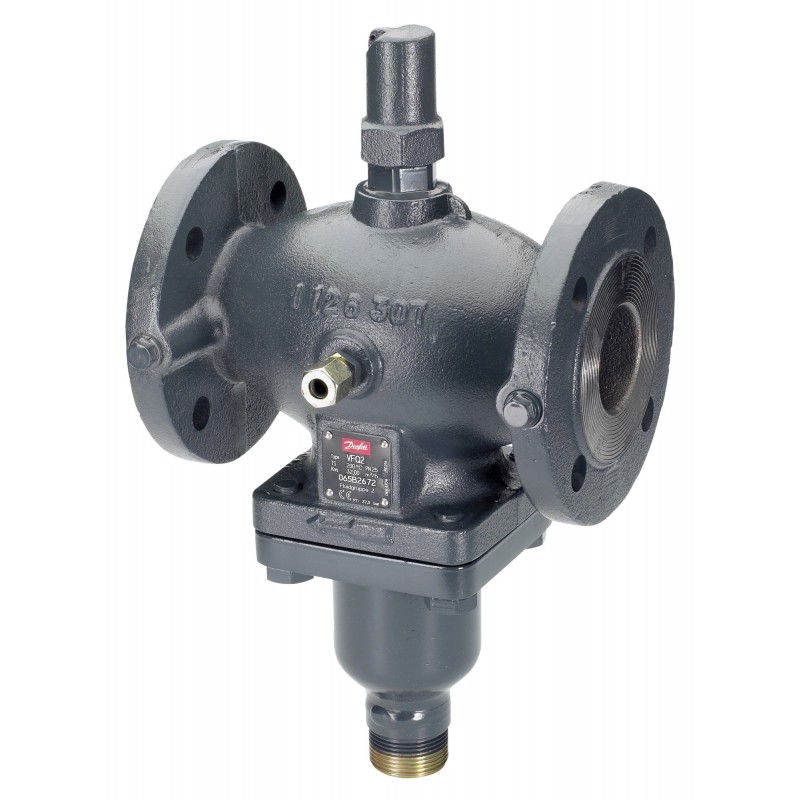

065B2675 DANFOSS HEATING VFQ2 PN25 100/125 2-way flange flow/ret
065B2675
DANFOSS HEATING
VFQ2 PN25 100/125 2-way flange flow/ret
VFQ 2, PN 25, DN 100, 125 m³/h, Flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VFQ2 PN25 100/125 2-way flange flow/ret
Product details
| Gross weight | 69 Kilogram |
| Net weight | 69 Kilogram |
| Volume | 90 Liter |
| EAN | 5702421809396 |
| Type | VFQ 2 |
| Product group | Pressure flow controllers |
| Gross weight | 69 Kilogram |
| Net weight | 69 Kilogram |
| Volume | 90 Liter |
| EAN | 5702421809396 |
| Type | VFQ 2 |
| Product group | Pressure flow controllers |
| Application | District Heating |
| Cavitation factor | 0.4 |
| Cavitation factor 100% | 0.35 |
| Cavitation factor 25% | 0.4 |
| Cavitation factor 50% | 0.62 |
| Cavitation factor 75% | 0.65 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | VFQ2 PN25 100/125 2-way flange flow/ret |
| Diameter [mm] | 100 mm |
| Differential pressure range [bar] [Max] | 15 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Linear optimized |
| Function | Pressure relief |
| Kvs values [m³/h] | 125 m³/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 25 |
| Pressure nominal [bar] | 25 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle position | Normally open |
| Stroke [mm] | 20 mm |
| Valve body material | GGG 40.3 |
| Valve cone material | Stainless steel, mat. No. 1.4404 |
| Valve size | DN 100 |
| Application | District Heating |
| Cavitation factor | 0.4 |
| Cavitation factor 100% | 0.35 |
| Cavitation factor 25% | 0.4 |
| Cavitation factor 50% | 0.62 |
| Cavitation factor 75% | 0.65 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | VFQ2 PN25 100/125 2-way flange flow/ret |
| Diameter [mm] | 100 mm |
| Differential pressure range [bar] [Max] | 15 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Linear optimized |
| Function | Pressure relief |
| Kvs values [m³/h] | 125 m³/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 25 |
| Pressure nominal [bar] | 25 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle position | Normally open |
| Stroke [mm] | 20 mm |
| Valve body material | GGG 40.3 |
| Valve cone material | Stainless steel, mat. No. 1.4404 |
| Valve size | DN 100 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065B2675 065B2675 EN_065B2675.pdf | 1 Mbytes |
|
