DANFOSS HEATING065B2670 DANFOSS HEATING VFQ2 PN25 32/16 2-way flange flow/return

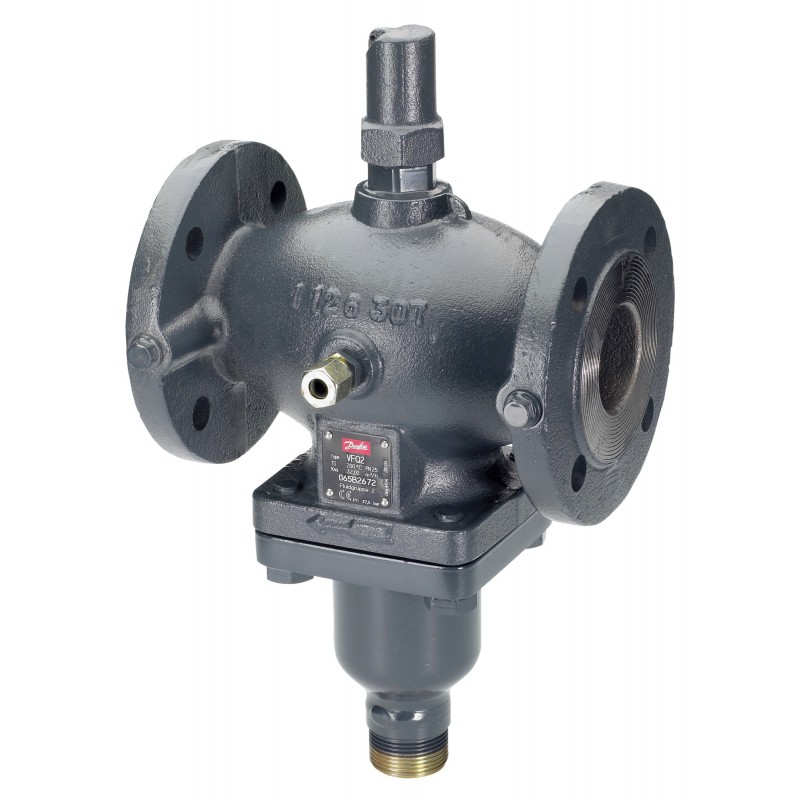

DANFOSS HEATING 065B2670 065B2670 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065B2670 DANFOSS HEATING VFQ2 PN25 32/16 2-way flange flow/return

Reference: 065B2670

Manufacturer: DANFOSS HEATING

Description:

VFQ2 PN25 32/16 2-way flange flow/return
VFQ 2, PN 25, DN 32, 16 m³/h, Flange

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.740,65 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

VFQ2 PN25 32/16 2-way flange flow/return

Product details

Gross weight13.535 Kilogram
Net weight12.455 Kilogram
Volume21.586 Liter
EAN5702421809341
TypeVFQ 2
Product groupPressure flow controllers
Gross weight13.535 Kilogram
Net weight12.455 Kilogram
Volume21.586 Liter
EAN5702421809341
TypeVFQ 2
Product groupPressure flow controllers

ApplicationDistrict Heating
Cavitation factor0.55
Cavitation factor 100%0.38
Cavitation factor 25%0.64
Cavitation factor 50%0.57
Cavitation factor 75%0.55
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
DescriptionVFQ2 PN25 32/16 2-way flange flow/return
Diameter [mm]32 mm
Differential pressure range [bar] [Max]20 bar
EU RoHS complianceOut of scope
Flow characteristicLinear optimized
FunctionPressure relief
Kvs values [m³/h]16 m³/h
Leakage through port max. [% Kvs]0.03
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]200 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 25
Pressure nominal [bar]25 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Spindle positionNormally open
Stroke [mm]9 mm
Valve body materialGGG 40.3
Valve cone materialStainless steel, mat. No. 1.4404
Valve sizeDN 32
ApplicationDistrict Heating
Cavitation factor0.55
Cavitation factor 100%0.38
Cavitation factor 25%0.64
Cavitation factor 50%0.57
Cavitation factor 75%0.55
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
DescriptionVFQ2 PN25 32/16 2-way flange flow/return
Diameter [mm]32 mm
Differential pressure range [bar] [Max]20 bar
EU RoHS complianceOut of scope
Flow characteristicLinear optimized
FunctionPressure relief
Kvs values [m³/h]16 m³/h
Leakage through port max. [% Kvs]0.03
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]200 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 25
Pressure nominal [bar]25 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Spindle positionNormally open
Stroke [mm]9 mm
Valve body materialGGG 40.3
Valve cone materialStainless steel, mat. No. 1.4404
Valve sizeDN 32

DATASHEET - PDF

Title
Size
Type
065B2670 065B2670 EN_065B2675.pdf
1 Mbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
