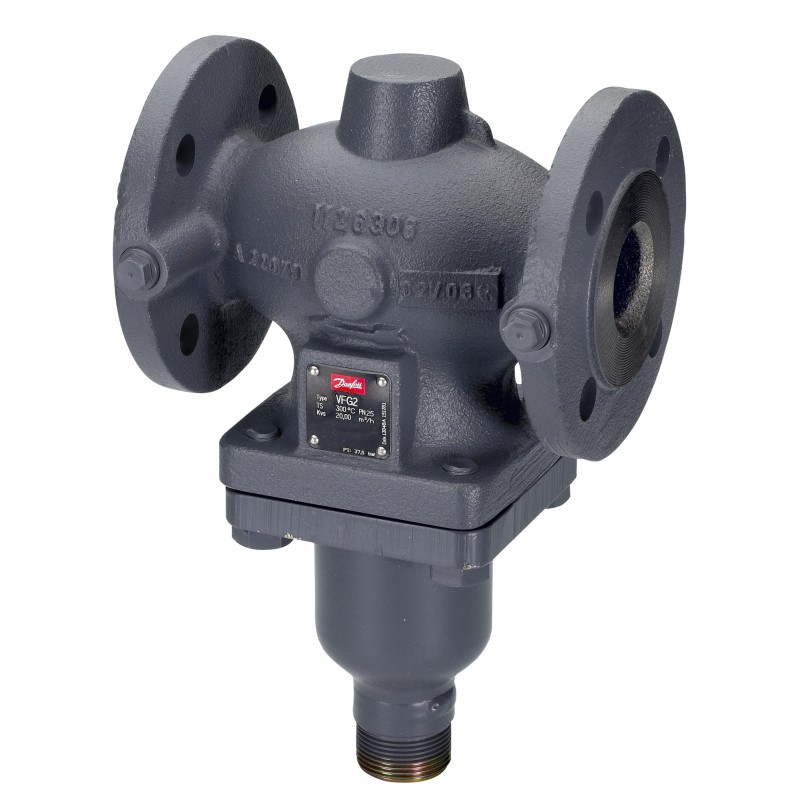

065B2444 DANFOSS HEATING VFGS2 PN25 20/6,3 2-way flange flow/ret
065B2444
DANFOSS HEATING
VFGS2 PN25 20/6,3 2-way flange flow/ret
VFGS 2, PN 25, DN 20, 6.3 m³/h, Flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VFGS2 PN25 20/6,3 2-way flange flow/ret
Product details
| Gross weight | 7.265 Kilogram |
| Net weight | 7.265 Kilogram |
| Volume | 12.312 Liter |
| EAN | 5702421803615 |
| Type | VFGS 2 |
| Product group | Pressure flow controllers |
| Gross weight | 7.265 Kilogram |
| Net weight | 7.265 Kilogram |
| Volume | 12.312 Liter |
| EAN | 5702421803615 |
| Type | VFGS 2 |
| Product group | Pressure flow controllers |
| Application | Steam |
| Cavitation factor | 0.6 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | VFGS2 PN25 20/6,3 2-way flange flow/ret |
| Diameter [mm] | 20 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Linear optimized |
| Function | Pressure relief |
| Kvs values [m³/h] | 6.3 m³/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 350 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Circulation water |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | Steam |
| Pressure class | PN 25 |
| Pressure nominal [bar] | 25 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle position | Normally open |
| Stroke [mm] | 6 mm |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material | Stainless steel, mat. No. 1.4021 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 20 |
| Application | Steam |
| Cavitation factor | 0.6 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | VFGS2 PN25 20/6,3 2-way flange flow/ret |
| Diameter [mm] | 20 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Linear optimized |
| Function | Pressure relief |
| Kvs values [m³/h] | 6.3 m³/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 350 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Circulation water |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | Steam |
| Pressure class | PN 25 |
| Pressure nominal [bar] | 25 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle position | Normally open |
| Stroke [mm] | 6 mm |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material | Stainless steel, mat. No. 1.4021 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065B2444 065B2444 EN_065B2388.pdf | 522 Kbytes |
|
