DANFOSS HEATING065B2417 DANFOSS HEATING VFG2 PN40 65/50 2-way flange flow/return

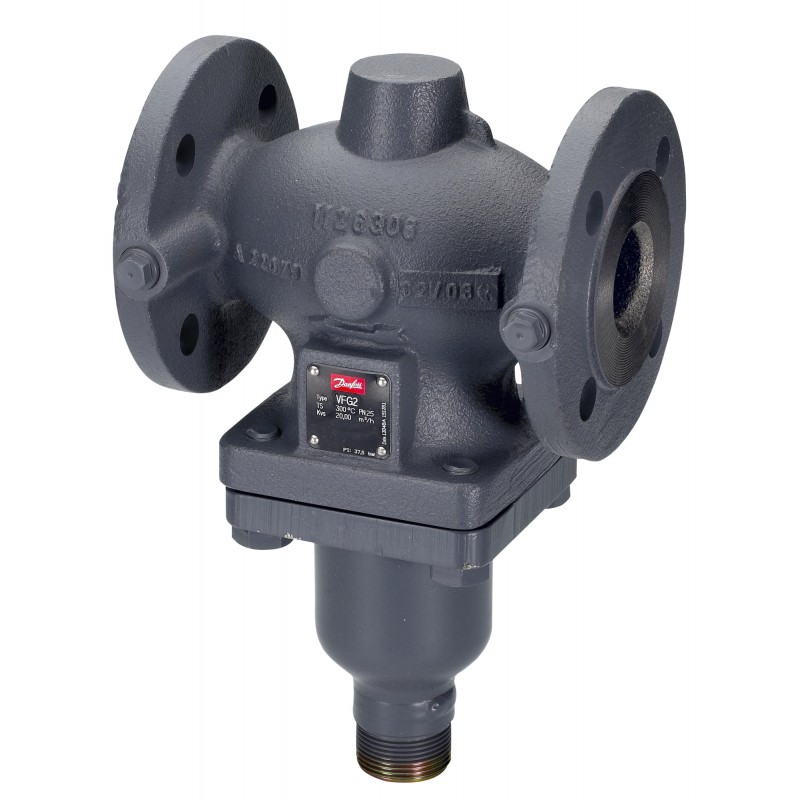

DANFOSS HEATING 065B2417 065B2417 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065B2417 DANFOSS HEATING VFG2 PN40 65/50 2-way flange flow/return

Reference: 065B2417

Manufacturer: DANFOSS HEATING

Description:

VFG2 PN40 65/50 2-way flange flow/return
VFG 2, PN 40, DN 65, 50 m³/h, Flange

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 4.336,29 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

VFG2 PN40 65/50 2-way flange flow/return

Product details

Gross weight37.5 Kilogram
Net weight37.5 Kilogram
Volume88.558 Liter
EAN5702421803349
TypeVFG 2
Product groupPressure flow controllers
Gross weight37.5 Kilogram
Net weight37.5 Kilogram
Volume88.558 Liter
EAN5702421803349
TypeVFG 2
Product groupPressure flow controllers

ApplicationDistrict Heating
Cavitation factor0.5
Cavitation factor 100%0.42
Cavitation factor 25%0.71
Cavitation factor 50%0.58
Cavitation factor 75%0.5
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
DescriptionVFG2 PN40 65/50 2-way flange flow/return
Diameter [mm]65 mm
Differential pressure range [bar] [Max]20 bar
EU RoHS complianceOut of scope
Flow characteristicLinear optimized
FunctionPressure relief
Kvs values [m³/h]50 m³/h
Leakage through port max. [% Kvs]0.03
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]200 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 40
Pressure nominal [bar]40 bar
REACH Candidate List substancesNo
Spindle positionNormally open
Stroke [mm]12 mm
Valve body materialCast steel GP240GH (GS-C 25)
Valve cone materialStainless steel, mat. No. 1.4404
Valve seat materialStainless steel, mat. No. 1.4021
Valve sizeDN 65
ApplicationDistrict Heating
Cavitation factor0.5
Cavitation factor 100%0.42
Cavitation factor 25%0.71
Cavitation factor 50%0.58
Cavitation factor 75%0.5
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
DescriptionVFG2 PN40 65/50 2-way flange flow/return
Diameter [mm]65 mm
Differential pressure range [bar] [Max]20 bar
EU RoHS complianceOut of scope
Flow characteristicLinear optimized
FunctionPressure relief
Kvs values [m³/h]50 m³/h
Leakage through port max. [% Kvs]0.03
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]200 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 40
Pressure nominal [bar]40 bar
REACH Candidate List substancesNo
Spindle positionNormally open
Stroke [mm]12 mm
Valve body materialCast steel GP240GH (GS-C 25)
Valve cone materialStainless steel, mat. No. 1.4404
Valve seat materialStainless steel, mat. No. 1.4021
Valve sizeDN 65

DATASHEET - PDF

Title
Size
Type
065B2417 065B2417 EN_065B2388.pdf
522 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
