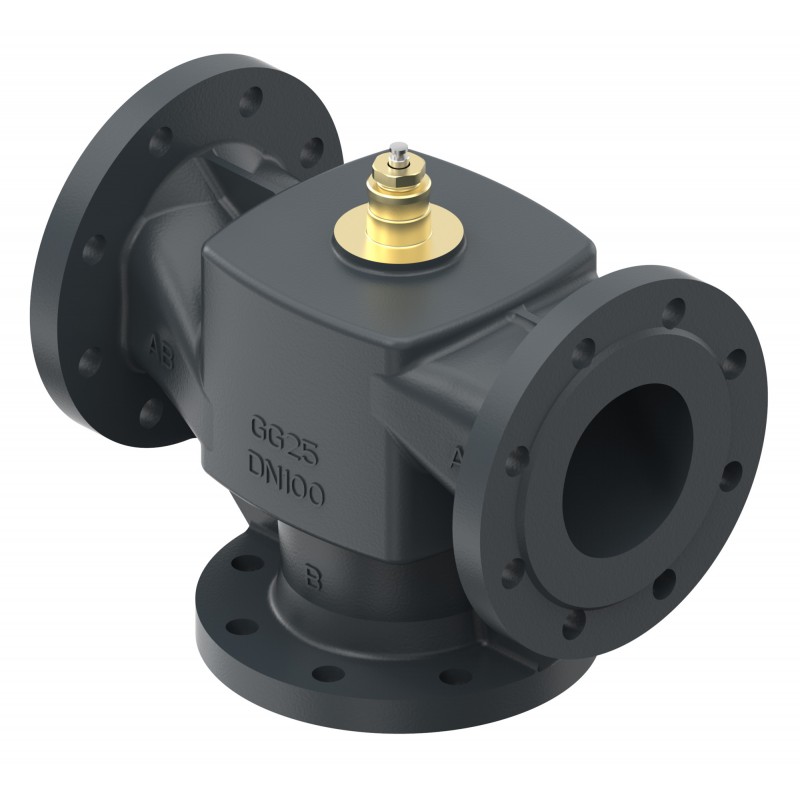

DANFOSS HEATING 065B1685 065B1685 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065B1685 DANFOSS HEATING VF 3 PN16 100/145 3-way seated flange

Reference: 065B1685

Manufacturer: DANFOSS HEATING

Description:

VF 3 PN16 100/145 3-way seated flange

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.735,99 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

VF 3 PN16 100/145 3-way seated flange

Product details

Gross weight38.6 Kilogram
Net weight38.6 Kilogram
Volume91.2 Liter
EAN5702421510933
TypeVF 3
Product groupOther valves
Gross weight38.6 Kilogram
Net weight38.6 Kilogram
Volume91.2 Liter
EAN5702421510933
TypeVF 3
Product groupOther valves

ApplicationHeating and cooling
Application alternative VSPDistrict heating
Cavitation factor0.4
China RoHS complianceOut of scope
Closing differential pressure (diverting) [bar] [Max]0.6 bar
Closing differential pressure (mixing) [bar] [Max]1.5 bar
Connection typesFlange
Contains batteriesNo
Control ratio100:1
DescriptionVF 3 PN16 100/145 3-way seated flange
Diameter [mm]100 mm
EU RoHS complianceOut of scope
Flow characteristicEqual percentage
FunctionMixing valve
Kvs values [m³/h]145 m³/h
Leakage through port max. [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]-10 °C
Medium alternativeGlycolic water up to 50%
Number of ports3
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.857da2cb-c3e1-4a88-9684-c1ee12d216c4
SCIP dossier product nameVF 3 PN16 100/145 3-WAY SEATED FLANGE
Stroke [mm]30 mm
Stuffing box sealing materialEPDM
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone materialRed bronze CuSn5Zn5Pb5 (Rg 6)
Valve stem materialStainless steel
ApplicationHeating and cooling
Application alternative VSPDistrict heating
Cavitation factor0.4
China RoHS complianceOut of scope
Closing differential pressure (diverting) [bar] [Max]0.6 bar
Closing differential pressure (mixing) [bar] [Max]1.5 bar
Connection typesFlange
Contains batteriesNo
Control ratio100:1
DescriptionVF 3 PN16 100/145 3-way seated flange
Diameter [mm]100 mm
EU RoHS complianceOut of scope
Flow characteristicEqual percentage
FunctionMixing valve
Kvs values [m³/h]145 m³/h
Leakage through port max. [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]-10 °C
Medium alternativeGlycolic water up to 50%
Number of ports3
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.857da2cb-c3e1-4a88-9684-c1ee12d216c4
SCIP dossier product nameVF 3 PN16 100/145 3-WAY SEATED FLANGE
Stroke [mm]30 mm
Stuffing box sealing materialEPDM
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone materialRed bronze CuSn5Zn5Pb5 (Rg 6)
Valve stem materialStainless steel
