DANFOSS HEATING065B0790 DANFOSS HEATING VGS PN25 25/6,3 2-way thread flow/ret

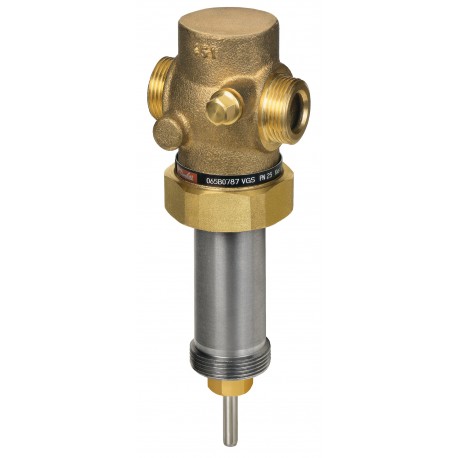

DANFOSS HEATING 065B0790 065B0790 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065B0790 DANFOSS HEATING VGS PN25 25/6,3 2-way thread flow/ret

Reference: 065B0790

Manufacturer: DANFOSS HEATING

Description:

VGS PN25 25/6,3 2-way thread flow/ret
VGS, PN 25, DN 25, 6.3 m³/h, G 1 1/4 A

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.218,89 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

VGS PN25 25/6,3 2-way thread flow/ret

Product details

Gross weight1.584 Kilogram
Net weight1.584 Kilogram
Volume1.365 Liter
EAN5702421543726
TypeVGS
Product groupMotorized control valves
Gross weight1.584 Kilogram
Net weight1.584 Kilogram
Volume1.365 Liter
EAN5702421543726
TypeVGS
Product groupMotorized control valves

ApplicationSteam
Cavitation factor0.6
China RoHS complianceOut of scope
Connection sizeG 1 1/4 A
Connection standardISO 228/1
Connection typesExternal Thread
Contains batteriesNo
DescriptionVGS PN25 25/6,3 2-way thread flow/ret
Diameter [mm]25 mm
Differential pressure range [bar] [Max]10 bar
EU RoHS complianceOut of scope
Flow characteristicApprox. linear
FunctionControl valve
Kvs values [m³/h]6.3 m³/h
Leakage through port max. [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]200 °C
Media temperature [°C] [Min]2 °C
Medium alternativeCirculation water
Mounting versionFree
Number of ports2
Permissible mediaSteam
PN alternative VSP16
Pressure classPN 25
Pressure nominal [bar]25 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.65895f52-3e32-45db-8318-8d3e5b5f455b
SCIP dossier product nameVGS PN25
Spindle positionNormally open
Stroke [mm]5 mm
Valve body materialRed bronze, mat. No. 2.1096.1 (RG5)
Valve cone materialStainless steel, mat. No. 1.4122
Valve seat materialStainless steel, mat. No. 1.4571
Valve sizeDN 25
ApplicationSteam
Cavitation factor0.6
China RoHS complianceOut of scope
Connection sizeG 1 1/4 A
Connection standardISO 228/1
Connection typesExternal Thread
Contains batteriesNo
DescriptionVGS PN25 25/6,3 2-way thread flow/ret
Diameter [mm]25 mm
Differential pressure range [bar] [Max]10 bar
EU RoHS complianceOut of scope
Flow characteristicApprox. linear
FunctionControl valve
Kvs values [m³/h]6.3 m³/h
Leakage through port max. [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]200 °C
Media temperature [°C] [Min]2 °C
Medium alternativeCirculation water
Mounting versionFree
Number of ports2
Permissible mediaSteam
PN alternative VSP16
Pressure classPN 25
Pressure nominal [bar]25 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.65895f52-3e32-45db-8318-8d3e5b5f455b
SCIP dossier product nameVGS PN25
Spindle positionNormally open
Stroke [mm]5 mm
Valve body materialRed bronze, mat. No. 2.1096.1 (RG5)
Valve cone materialStainless steel, mat. No. 1.4122
Valve seat materialStainless steel, mat. No. 1.4571
Valve sizeDN 25
