DANFOSS HEATING065B0782 DANFOSS HEATING VGF PN25 25/8 2-way flange flow

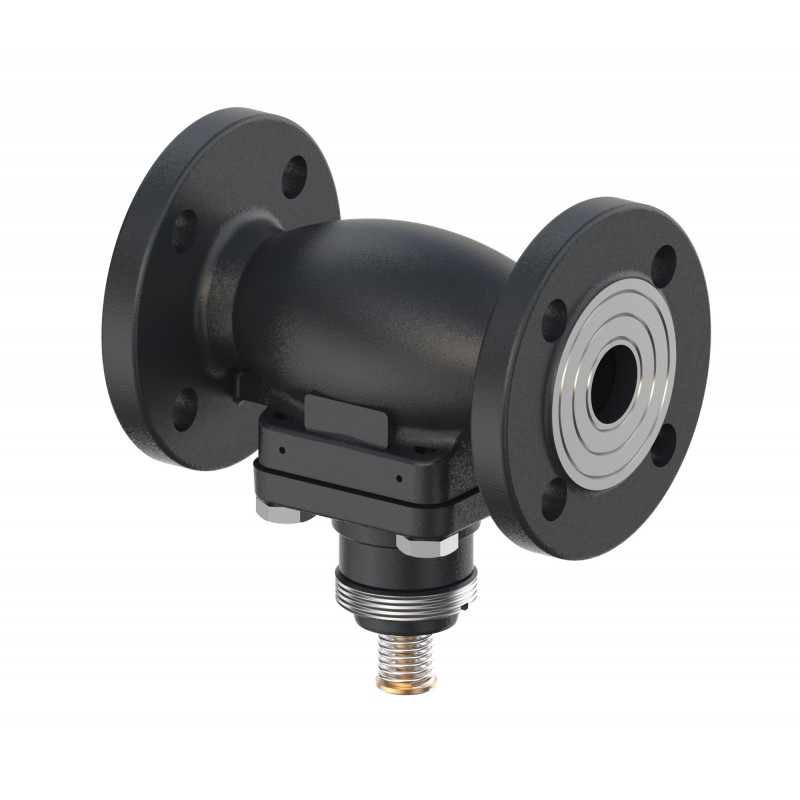

DANFOSS HEATING 065B0782 065B0782 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065B0782 DANFOSS HEATING VGF PN25 25/8 2-way flange flow

Reference: 065B0782

Manufacturer: DANFOSS HEATING

Description:

VGF PN25 25/8 2-way flange flow
VGF, PN 25, DN 25, 8 m³/h, Flange

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.004,66 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

VGF PN25 25/8 2-way flange flow

Product details

Gross weight4.907 Kilogram
Net weight4.687 Kilogram
Volume4.977 Liter
EAN5702421543641
TypeVGF
Product groupMotorized control valves
Gross weight4.907 Kilogram
Net weight4.687 Kilogram
Volume4.977 Liter
EAN5702421543641
TypeVGF
Product groupMotorized control valves

ApplicationDistrict Heating
Cavitation factor0.6
China RoHS complianceOut of scope
Connection size25
Connection standardEN 1092-2
Connection typesFlange
Contains batteriesNo
DescriptionVGF PN25 25/8 2-way flange flow
Diameter [mm]25 mm
Differential pressure range [bar] [Max]20 bar
EU RoHS complianceOut of scope
Flow characteristicApprox. linear
FunctionControl valve
Kvs values [m³/h]8 m³/h
Leakage through port max. [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP16
Pressure classPN 25
Pressure nominal [bar]25 bar
Pressure relieve systemPiston
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Spindle positionNormally open
Stroke [mm]5 mm
Valve body materialDuctile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone materialDZR brass CuZn36Pb2AS (CW 602N)
Valve seat materialStainless steel, mat. No. 1.4571
Valve sizeDN 25
ApplicationDistrict Heating
Cavitation factor0.6
China RoHS complianceOut of scope
Connection size25
Connection standardEN 1092-2
Connection typesFlange
Contains batteriesNo
DescriptionVGF PN25 25/8 2-way flange flow
Diameter [mm]25 mm
Differential pressure range [bar] [Max]20 bar
EU RoHS complianceOut of scope
Flow characteristicApprox. linear
FunctionControl valve
Kvs values [m³/h]8 m³/h
Leakage through port max. [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP16
Pressure classPN 25
Pressure nominal [bar]25 bar
Pressure relieve systemPiston
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Spindle positionNormally open
Stroke [mm]5 mm
Valve body materialDuctile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone materialDZR brass CuZn36Pb2AS (CW 602N)
Valve seat materialStainless steel, mat. No. 1.4571
Valve sizeDN 25
