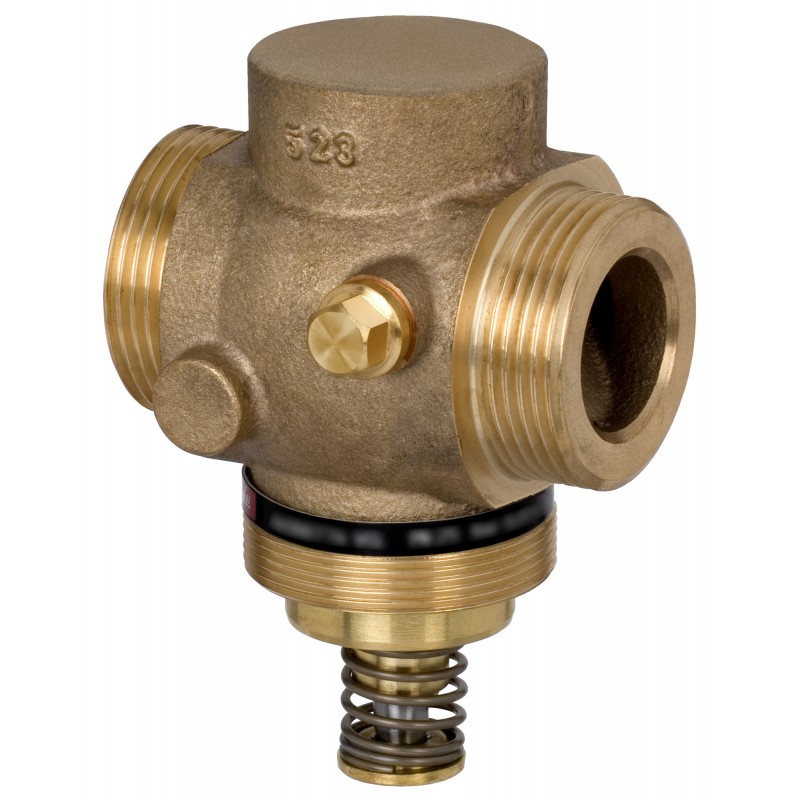

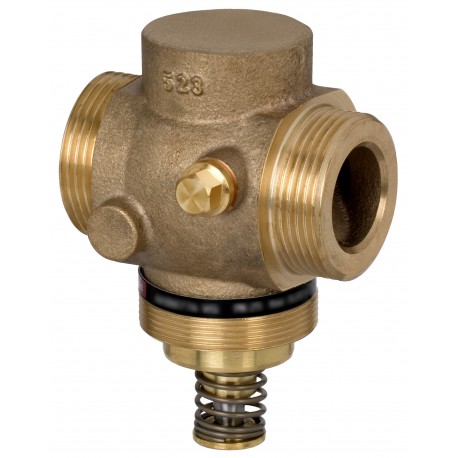

065B0773 DANFOSS HEATING VG PN25 15/2,5 2-way thread flow
065B0773
DANFOSS HEATING
VG PN25 15/2,5 2-way thread flow
VG, PN 25, DN 15, 2.5 m³/h, G 3/4 A
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VG PN25 15/2,5 2-way thread flow
Product details
| Gross weight | 0.799 Kilogram |
| Net weight | 0.774 Kilogram |
| Volume | 1.365 Liter |
| EAN | 5702421543559 |
| Type | VG |
| Product group | Motorized control valves |
| Gross weight | 0.799 Kilogram |
| Net weight | 0.774 Kilogram |
| Volume | 1.365 Liter |
| EAN | 5702421543559 |
| Type | VG |
| Product group | Motorized control valves |
| Application | District Heating |
| Cavitation factor | 0.6 |
| China RoHS compliance | Out of scope |
| Connection size | G 3/4 A |
| Connection standard | ISO 228/1 |
| Connection types | External Thread |
| Contains batteries | No |
| Description | VG PN25 15/2,5 2-way thread flow |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Approx. linear |
| Function | Control valve |
| Kvs values [m³/h] | 2.5 m³/h |
| Leakage through port max. [% Kvs] | 0.02 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure nominal [bar] | 25 bar |
| Pressure relieve system | Piston |
| REACH Candidate List substances | No |
| Sealing material | EPDM |
| Spindle position | Normally open |
| Stroke [mm] | 5 mm |
| Valve body material | Red bronze, mat. No. 2.1096.1 (RG5) |
| Valve cone material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 15 |
| Application | District Heating |
| Cavitation factor | 0.6 |
| China RoHS compliance | Out of scope |
| Connection size | G 3/4 A |
| Connection standard | ISO 228/1 |
| Connection types | External Thread |
| Contains batteries | No |
| Description | VG PN25 15/2,5 2-way thread flow |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Approx. linear |
| Function | Control valve |
| Kvs values [m³/h] | 2.5 m³/h |
| Leakage through port max. [% Kvs] | 0.02 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure nominal [bar] | 25 bar |
| Pressure relieve system | Piston |
| REACH Candidate List substances | No |
| Sealing material | EPDM |
| Spindle position | Normally open |
| Stroke [mm] | 5 mm |
| Valve body material | Red bronze, mat. No. 2.1096.1 (RG5) |
| Valve cone material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 15 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065B0773 065B0773 ES_065B0770.pdf | 2 Mbytes |
|
