DANFOSS HEATING065B0771 DANFOSS HEATING VG PN25 15/1 2-way thread flow

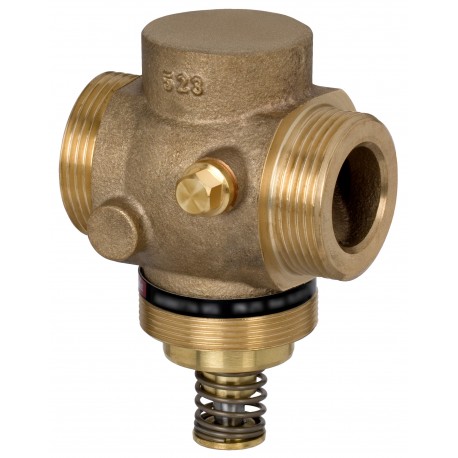

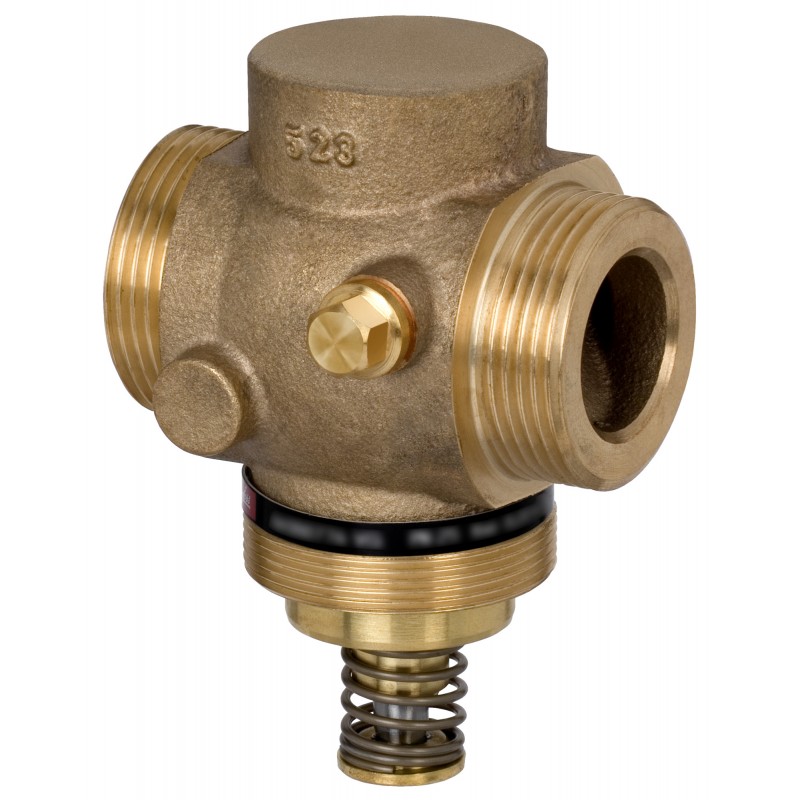

DANFOSS HEATING 065B0771 065B0771 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065B0771 DANFOSS HEATING VG PN25 15/1 2-way thread flow

Reference: 065B0771

Manufacturer: DANFOSS HEATING

Description:

VG PN25 15/1 2-way thread flow
VG, PN 25, DN 15, 1 m³/h, G 3/4 A

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 640,47 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

VG PN25 15/1 2-way thread flow

Product details

Gross weight0.764 Kilogram
Net weight0.721 Kilogram
Volume1.365 Liter
EAN5702421543535
TypeVG
Product groupMotorized control valves
Gross weight0.764 Kilogram
Net weight0.721 Kilogram
Volume1.365 Liter
EAN5702421543535
TypeVG
Product groupMotorized control valves

ApplicationDistrict Heating
Cavitation factor0.6
China RoHS complianceOut of scope
Connection sizeG 3/4 A
Connection standardISO 228/1
Connection typesExternal Thread
Contains batteriesNo
DescriptionVG PN25 15/1 2-way thread flow
Diameter [mm]15 mm
Differential pressure range [bar] [Max]20 bar
EU RoHS complianceOut of scope
Flow characteristicApprox. linear
FunctionControl valve
Kvs values [m³/h]1 m³/h
Leakage through port max. [% Kvs]0.02
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP16
Pressure classPN 25
Pressure nominal [bar]25 bar
Pressure relieve systemPiston
REACH Candidate List substancesNo
Sealing materialEPDM
Spindle positionNormally open
Stroke [mm]3 mm
Valve body materialRed bronze, mat. No. 2.1096.1 (RG5)
Valve cone materialDZR brass CuZn36Pb2AS (CW 602N)
Valve seat materialStainless steel, mat. No. 1.4571
Valve sizeDN 15
ApplicationDistrict Heating
Cavitation factor0.6
China RoHS complianceOut of scope
Connection sizeG 3/4 A
Connection standardISO 228/1
Connection typesExternal Thread
Contains batteriesNo
DescriptionVG PN25 15/1 2-way thread flow
Diameter [mm]15 mm
Differential pressure range [bar] [Max]20 bar
EU RoHS complianceOut of scope
Flow characteristicApprox. linear
FunctionControl valve
Kvs values [m³/h]1 m³/h
Leakage through port max. [% Kvs]0.02
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP16
Pressure classPN 25
Pressure nominal [bar]25 bar
Pressure relieve systemPiston
REACH Candidate List substancesNo
Sealing materialEPDM
Spindle positionNormally open
Stroke [mm]3 mm
Valve body materialRed bronze, mat. No. 2.1096.1 (RG5)
Valve cone materialDZR brass CuZn36Pb2AS (CW 602N)
Valve seat materialStainless steel, mat. No. 1.4571
Valve sizeDN 15
