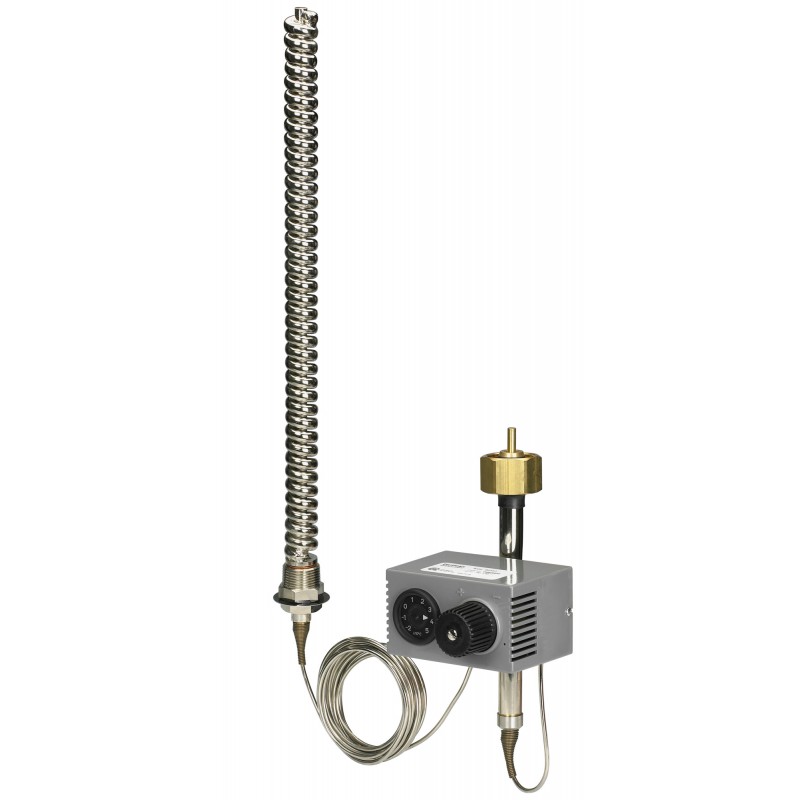

065-4402 DANFOSS HEATING AFT17 PN40 40-110°C/5m Spiral sensor
065-4402
DANFOSS HEATING
AFT17 PN40 40-110°C/5m Spiral sensor
AFT 17, 40 °C - 110 °C, 500 mm, 5 m
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲AFT17 PN40 40-110/5m Spiral sensor
Product details
| Gross weight | 5.103 Kilogram |
| Net weight | 5.103 Kilogram |
| Volume | 35.259 Liter |
| EAN | 5702421808054 |
| Type | AFT 17 |
| Product group | Actuators - Temperature |
| Gross weight | 5.103 Kilogram |
| Net weight | 5.103 Kilogram |
| Volume | 35.259 Liter |
| EAN | 5702421808054 |
| Type | AFT 17 |
| Product group | Actuators - Temperature |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | DIN EN 14597:2005-12 TR(TW)76107 |
| Capillary tube length [m] | 5 m |
| Contains batteries | No |
| Description | AFT17 PN40 40-110/5m Spiral sensor |
| Function | Temp. controller |
| Gain Ks | 0.8 |
| Impulse tube material | Copper mat. No 2.0090 |
| Media temperature at sensor [°C] [Max] | 210 °C |
| Mounting version | Free |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ed87ec22-a47b-4139-aab5-e30be62a5a68 |
| SCIP dossier product name | Selfacting Thermostats - AFT |
| Sensor connection | R1 conic male thread acc. to DIN 2999 |
| Temperature sensor diameter [mm] | 30 mm |
| Temperature sensor length [mm] | 500 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature setting range [°C] [Max] | 110 °C |
| Temperature setting range [°C] [Min] | 40 °C |
| Time constant [sec] | 20 " |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | DIN EN 14597:2005-12 TR(TW)76107 |
| Capillary tube length [m] | 5 m |
| Contains batteries | No |
| Description | AFT17 PN40 40-110/5m Spiral sensor |
| Function | Temp. controller |
| Gain Ks | 0.8 |
| Impulse tube material | Copper mat. No 2.0090 |
| Media temperature at sensor [°C] [Max] | 210 °C |
| Mounting version | Free |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ed87ec22-a47b-4139-aab5-e30be62a5a68 |
| SCIP dossier product name | Selfacting Thermostats - AFT |
| Sensor connection | R1 conic male thread acc. to DIN 2999 |
| Temperature sensor diameter [mm] | 30 mm |
| Temperature sensor length [mm] | 500 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature setting range [°C] [Max] | 110 °C |
| Temperature setting range [°C] [Min] | 40 °C |
| Time constant [sec] | 20 " |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065-4402 065-4402 EN_065B2388.pdf | 522 Kbytes |
|
