DANFOSS HEATING065-4401 DANFOSS HEATING AFT17 PN40 20-90/5m Spiral sensor
DANFOSS HEATING 065-4401 065-4401 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

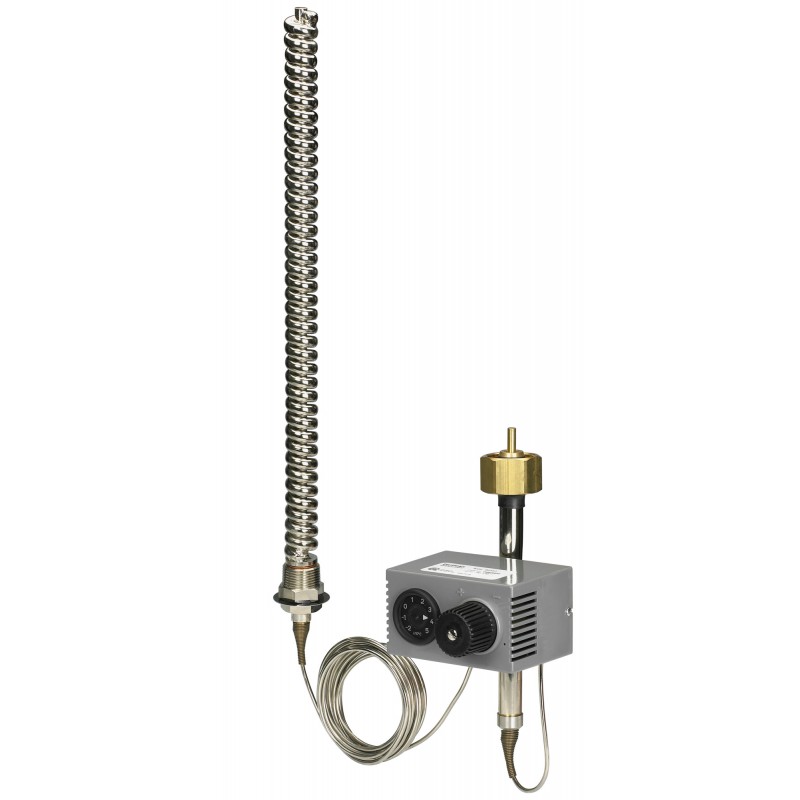

065-4401 DANFOSS HEATING AFT17 PN40 20-90/5m Spiral sensor

Reference: 065-4401

Manufacturer: DANFOSS HEATING

Description:

AFT17 PN40 20-90/5m Spiral sensor
AFT 17, 20 °C - 90 °C, 500 mm, 5 m

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.238,32 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

AFT17 PN40 20-90/5m Spiral sensor

Product details

Gross weight5.14 Kilogram
Net weight3.953 Kilogram
Volume34.32 Liter
EAN5702421808047
TypeAFT 17
Product groupActuators - Temperature
Gross weight5.14 Kilogram
Net weight3.953 Kilogram
Volume34.32 Liter
EAN5702421808047
TypeAFT 17
Product groupActuators - Temperature

Ambient temperature [°C] [max]70 °C
Ambient temperature [°C] [min]0 °C
Approval standardDIN EN 14597:2005-12 TR(TW)76107
Capillary tube length [m]5 m
Contains batteriesNo
DescriptionAFT17 PN40 20-90/5m Spiral sensor
FunctionTemp. controller
Gain Ks0.8
Impulse tube materialCopper mat. No 2.0090
Media temperature at sensor [°C] [Max]190 °C
Mounting versionFree
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.ed87ec22-a47b-4139-aab5-e30be62a5a68
SCIP dossier product nameSelfacting Thermostats - AFT
Sensor connectionR1 conic male thread acc. to DIN 2999
Temperature sensor diameter [mm]30 mm
Temperature sensor length [mm]500 mm
Temperature sensor materialCopper mat. No 2.0090
Temperature setting range [°C] [Max]90 °C
Temperature setting range [°C] [Min]20 °C
Time constant [sec]20 "
Transport temperature [°C] [Max]50 °C
Transport temperature [°C] [Min]-20 °C
Ambient temperature [°C] [max]70 °C
Ambient temperature [°C] [min]0 °C
Approval standardDIN EN 14597:2005-12 TR(TW)76107
Capillary tube length [m]5 m
Contains batteriesNo
DescriptionAFT17 PN40 20-90/5m Spiral sensor
FunctionTemp. controller
Gain Ks0.8
Impulse tube materialCopper mat. No 2.0090
Media temperature at sensor [°C] [Max]190 °C
Mounting versionFree
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.ed87ec22-a47b-4139-aab5-e30be62a5a68
SCIP dossier product nameSelfacting Thermostats - AFT
Sensor connectionR1 conic male thread acc. to DIN 2999
Temperature sensor diameter [mm]30 mm
Temperature sensor length [mm]500 mm
Temperature sensor materialCopper mat. No 2.0090
Temperature setting range [°C] [Max]90 °C
Temperature setting range [°C] [Min]20 °C
Time constant [sec]20 "
Transport temperature [°C] [Max]50 °C
Transport temperature [°C] [Min]-20 °C

DATASHEET - PDF

Title
Size
Type
065-4401 065-4401 EN_065B2388.pdf
522 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
