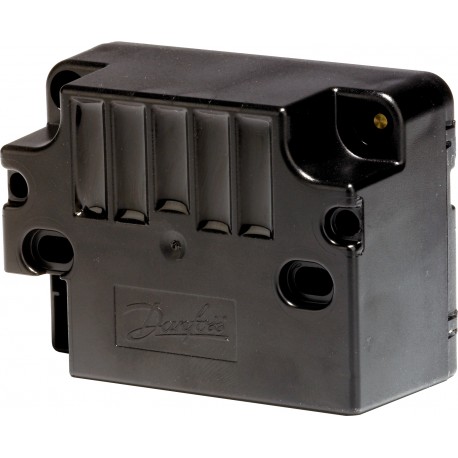

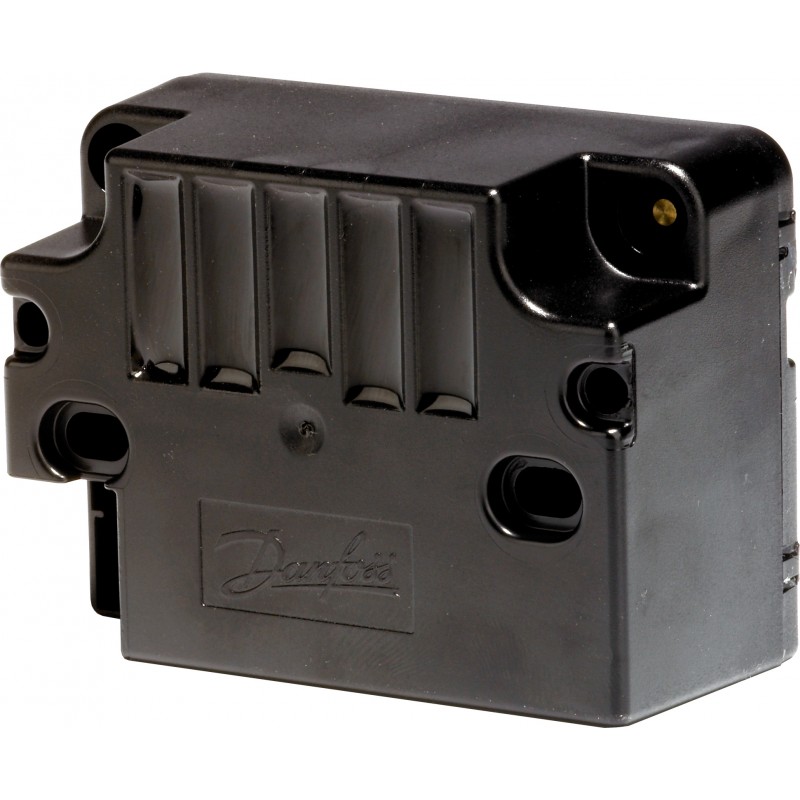

052F4231 DANFOSS HEATING Ignition unit EBI4 Satronic 230V
052F4231
DANFOSS HEATING
40
Ignition unit EBI4 Satronic 230V
Ignition Units, EBI4, Secondary peak voltage [kV]: 15, Supply voltage [V] AC: 187 - 255, 60 VA, Housing: Special
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲EBI4 SPECIAL HOUSING IGNITION UNIT 230 V OEM
Product details
| Gross weight | 0.253 Kilogram |
| Net weight | 0.243 Kilogram |
| Volume | 0.281 Liter |
| EAN | 5702425074967 |
| Type | EBI4 |
| Product group | Ignition Units |
| Gross weight | 0.253 Kilogram |
| Net weight | 0.243 Kilogram |
| Volume | 0.281 Liter |
| EAN | 5702425074967 |
| Type | EBI4 |
| Product group | Ignition Units |
| Ambient temperature [°C] [max] | 60 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Approval | CE UKCA |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Description | EBI4 SPECIAL HOUSING IGNITION UNIT 230 V OEM |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(c)-I |
| Grade of enclosure primary | IP40 |
| Housing | Special |
| Main fuse [A] [Min] | 10 A |
| Packing format | Industrial pack |
| Power consumption [VA] | 60 VA |
| Primary current [A] | 0.25 A |
| Primary frequency [Hz] | 50/60 |
| Quantity per packing format | 40 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 27c02f0b-4bf3-4159-b23b-0589ec23470c |
| SCIP dossier product name | Ignition unit EBI4 1P |
| Secondary connection, short circuit current [mA] | 40 mA |
| Secondary peak voltage [kV] | 15 |
| Storage temperature [°C] [Max] | 85 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 255 V |
| Supply voltage [V] AC [min] | 187 V |
| UL evaluated | Out of scope |
| Ambient temperature [°C] [max] | 60 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Approval | CE UKCA |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Description | EBI4 SPECIAL HOUSING IGNITION UNIT 230 V OEM |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(c)-I |
| Grade of enclosure primary | IP40 |
| Housing | Special |
| Main fuse [A] [Min] | 10 A |
| Packing format | Industrial pack |
| Power consumption [VA] | 60 VA |
| Primary current [A] | 0.25 A |
| Primary frequency [Hz] | 50/60 |
| Quantity per packing format | 40 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 27c02f0b-4bf3-4159-b23b-0589ec23470c |
| SCIP dossier product name | Ignition unit EBI4 1P |
| Secondary connection, short circuit current [mA] | 40 mA |
| Secondary peak voltage [kV] | 15 |
| Storage temperature [°C] [Max] | 85 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 255 V |
| Supply voltage [V] AC [min] | 187 V |
| UL evaluated | Out of scope |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 052F4231 052F4231 ES_052F4045.pdf | 2 Mbytes |
|
