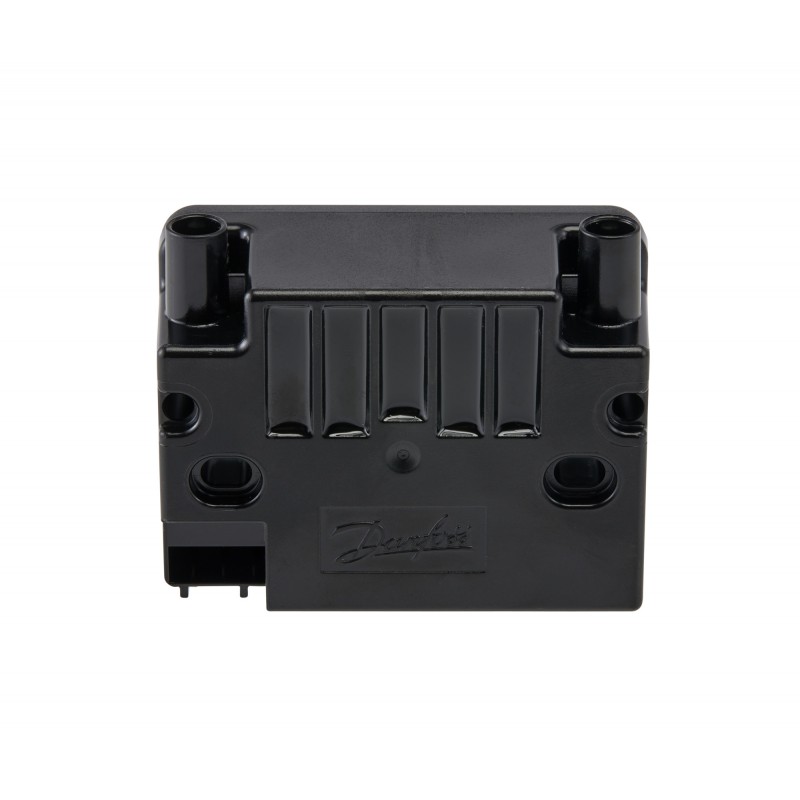

052F4062 DANFOSS HEATING Ignition unit EBI4 M 120V
052F4062
DANFOSS HEATING
Ignition unit EBI4 M 120V
Ignition Units, EBI4 M 120 V, Secondary peak voltage [kV]: 2 x 7.5, Supply voltage [V] AC: 102 - 132, 50 VA, Housing: Standard
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲EBI4 M STD. IGNITION UNIT 120 V
Product details
| Gross weight | 0.253 Kilogram |
| Net weight | 0.252 Kilogram |
| Volume | 0.392 Liter |
| EAN | 5702425080203 |
| Type | EBI4 M 120 V |
| Product group | Ignition Units |
| Gross weight | 0.253 Kilogram |
| Net weight | 0.252 Kilogram |
| Volume | 0.392 Liter |
| EAN | 5702425080203 |
| Type | EBI4 M 120 V |
| Product group | Ignition Units |
| Ambient temperature [°C] [max] | 60 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Approval | UKCA |
| CE evaluated | Out of scope |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Description | EBI4 M STD. IGNITION UNIT 120 V |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(c)-I |
| Grade of enclosure primary | IP40 |
| Housing | Standard |
| Main fuse [A] [Min] | 10 A |
| Packing format | Single pack |
| Power consumption [VA] | 50 VA |
| Primary current [A] | 0.4 A |
| Primary frequency [Hz] | 50/60 |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 9bbbc11e-e994-4b41-a315-907e4ca9cc5d |
| SCIP dossier product name | Ignition unit EB14 |
| Secondary connection, short circuit current [mA] | 40 mA |
| Secondary peak voltage [kV] | 2 x 7.5 |
| Storage temperature [°C] [Max] | 85 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] AC | 120 V |
| Supply voltage [V] AC [max] | 132 V |
| Supply voltage [V] AC [min] | 102 V |
| UL evaluated | Out of scope |
| Ambient temperature [°C] [max] | 60 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Approval | UKCA |
| CE evaluated | Out of scope |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Description | EBI4 M STD. IGNITION UNIT 120 V |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(c)-I |
| Grade of enclosure primary | IP40 |
| Housing | Standard |
| Main fuse [A] [Min] | 10 A |
| Packing format | Single pack |
| Power consumption [VA] | 50 VA |
| Primary current [A] | 0.4 A |
| Primary frequency [Hz] | 50/60 |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 9bbbc11e-e994-4b41-a315-907e4ca9cc5d |
| SCIP dossier product name | Ignition unit EB14 |
| Secondary connection, short circuit current [mA] | 40 mA |
| Secondary peak voltage [kV] | 2 x 7.5 |
| Storage temperature [°C] [Max] | 85 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] AC | 120 V |
| Supply voltage [V] AC [max] | 132 V |
| Supply voltage [V] AC [min] | 102 V |
| UL evaluated | Out of scope |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 052F4062 052F4062 ES_052F4062.pdf | 347 Kbytes |
|
