DANFOSS HEATING052F4035 DANFOSS HEATING Ignition unit EBI4 CM Satronic 230V

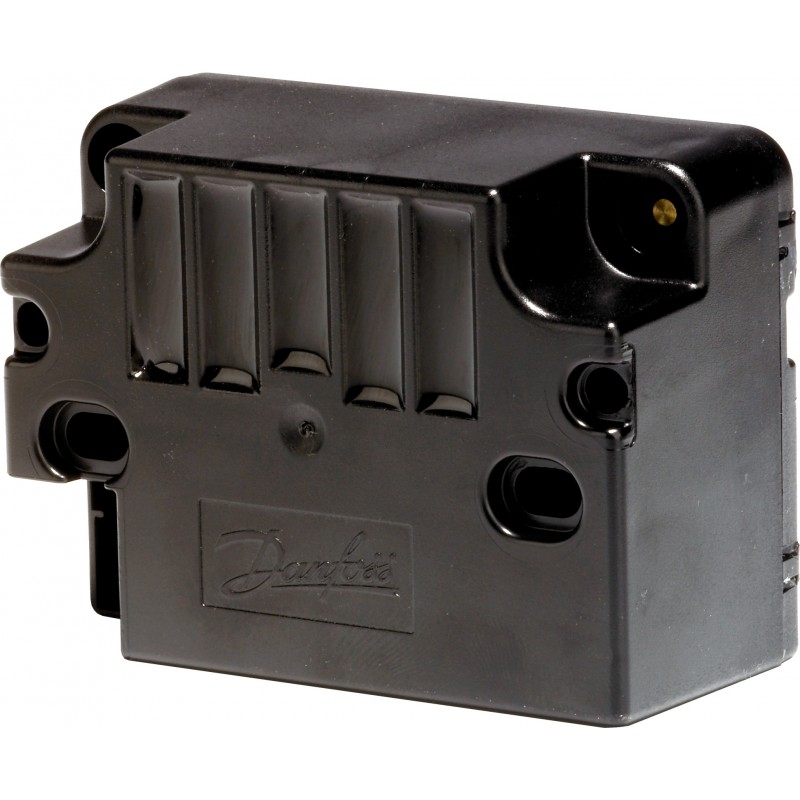

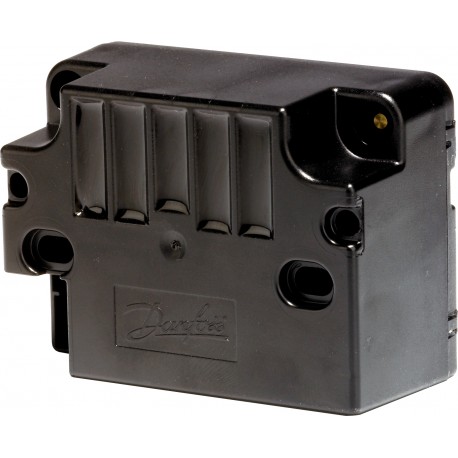

DANFOSS HEATING 052F4035 052F4035 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

052F4035 DANFOSS HEATING Ignition unit EBI4 CM Satronic 230V

Reference: 052F4035

Manufacturer: DANFOSS HEATING

Description:

Ignition unit EBI4 CM Satronic 230V
Ignition Units, EBI4 CM, Secondary peak voltage [kV]: 2 x 7.5, Supply voltage [V] AC: 187 - 255, 60 VA, Housing: Special

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 1.052,35 €

Unit Price: 105,235 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

EBI4CM SPECIAL HOUSING IGNITION UNIT 230 V

Product details

Gross weight0.315 Kilogram
Net weight0.314 Kilogram
Volume0.418 Liter
EAN5702425074899
TypeEBI4 CM
Product groupIgnition Units
Gross weight0.315 Kilogram
Net weight0.314 Kilogram
Volume0.418 Liter
EAN5702425074899
TypeEBI4 CM
Product groupIgnition Units

Ambient temperature [°C] [max]60 °C
Ambient temperature [°C] [min]-10 °C
ApprovalCE
UKCA
CE evaluatedYes
China RoHS complianceYes
Contains batteriesNo
DescriptionEBI4CM SPECIAL HOUSING IGNITION UNIT 230 V
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
7(c)-I
Grade of enclosure primaryIP40
HousingSpecial
Main fuse [A] [Min]10 A
Packing formatSingle pack
Power consumption [VA]60 VA
Primary current [A]0.25 A
Primary frequency [Hz]50/60
Quantity per packing format10 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.9bbbc11e-e994-4b41-a315-907e4ca9cc5d
SCIP dossier product nameIgnition unit EB14
Secondary connection, short circuit current [mA]30 mA
Secondary peak voltage [kV]2 x 7.5
Storage temperature [°C] [Max]85 °C
Storage temperature [°C] [Min]-25 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]255 V
Supply voltage [V] AC [min]187 V
UL evaluatedOut of scope
Ambient temperature [°C] [max]60 °C
Ambient temperature [°C] [min]-10 °C
ApprovalCE
UKCA
CE evaluatedYes
China RoHS complianceYes
Contains batteriesNo
DescriptionEBI4CM SPECIAL HOUSING IGNITION UNIT 230 V
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
7(c)-I
Grade of enclosure primaryIP40
HousingSpecial
Main fuse [A] [Min]10 A
Packing formatSingle pack
Power consumption [VA]60 VA
Primary current [A]0.25 A
Primary frequency [Hz]50/60
Quantity per packing format10 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.9bbbc11e-e994-4b41-a315-907e4ca9cc5d
SCIP dossier product nameIgnition unit EB14
Secondary connection, short circuit current [mA]30 mA
Secondary peak voltage [kV]2 x 7.5
Storage temperature [°C] [Max]85 °C
Storage temperature [°C] [Min]-25 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]255 V
Supply voltage [V] AC [min]187 V
UL evaluatedOut of scope
