DANFOSS HEATING052F4030 DANFOSS HEATING Ignition unit EBI4 Standard 230V

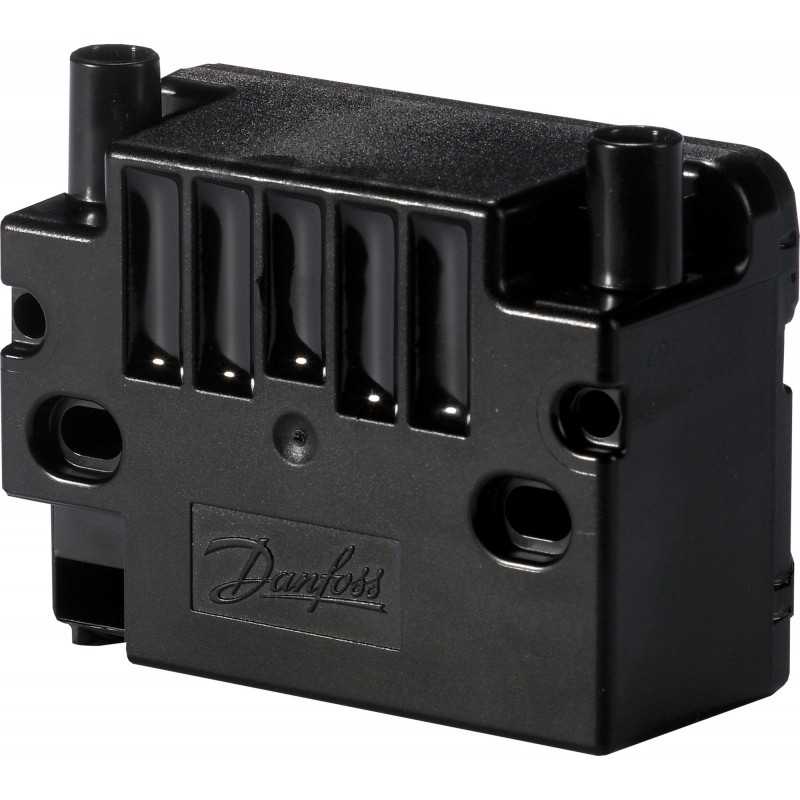

DANFOSS HEATING 052F4030 052F4030 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

052F4030 DANFOSS HEATING Ignition unit EBI4 Standard 230V

Reference: 052F4030

Manufacturer: DANFOSS HEATING

Description:

Ignition unit EBI4 Standard 230V
Ignition Units, EBI4, Secondary peak voltage [kV]: 15, Supply voltage [V] AC: 187 - 255, 60 VA, Housing: Standard

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 926,39 €

Unit Price: 92,639 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

EBI4 STD. IGNITION UNIT 230 V

Product details

Gross weight0.248 Kilogram
Net weight0.247 Kilogram
Volume0.386 Liter
EAN5702425074981
TypeEBI4
Product groupIgnition Units
Gross weight0.248 Kilogram
Net weight0.247 Kilogram
Volume0.386 Liter
EAN5702425074981
TypeEBI4
Product groupIgnition Units

Ambient temperature [°C] [max]60 °C
Ambient temperature [°C] [min]-10 °C
ApprovalCE
UKCA
UL
CE evaluatedYes
China RoHS complianceYes
Contains batteriesNo
DescriptionEBI4 STD. IGNITION UNIT 230 V
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
7(c)-I
Grade of enclosure primaryIP40
HousingStandard
Main fuse [A] [Min]10 A
Packing formatSingle pack
Power consumption [VA]60 VA
Primary current [A]0.25 A
Primary frequency [Hz]50/60
Quantity per packing format10 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.9bbbc11e-e994-4b41-a315-907e4ca9cc5d
SCIP dossier product nameIgnition unit EBI4
Secondary connection, short circuit current [mA]40 mA
Secondary peak voltage [kV]15
Storage temperature [°C] [Max]85 °C
Storage temperature [°C] [Min]-25 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]255 V
Supply voltage [V] AC [min]187 V
UL evaluatedYes
Ambient temperature [°C] [max]60 °C
Ambient temperature [°C] [min]-10 °C
ApprovalCE
UKCA
UL
CE evaluatedYes
China RoHS complianceYes
Contains batteriesNo
DescriptionEBI4 STD. IGNITION UNIT 230 V
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
7(c)-I
Grade of enclosure primaryIP40
HousingStandard
Main fuse [A] [Min]10 A
Packing formatSingle pack
Power consumption [VA]60 VA
Primary current [A]0.25 A
Primary frequency [Hz]50/60
Quantity per packing format10 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.9bbbc11e-e994-4b41-a315-907e4ca9cc5d
SCIP dossier product nameIgnition unit EBI4
Secondary connection, short circuit current [mA]40 mA
Secondary peak voltage [kV]15
Storage temperature [°C] [Max]85 °C
Storage temperature [°C] [Min]-25 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]255 V
Supply voltage [V] AC [min]187 V
UL evaluatedYes

DATASHEET - PDF

Title
Size
Type
052F4030 052F4030 ES_052F4045.pdf
2 Mbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
