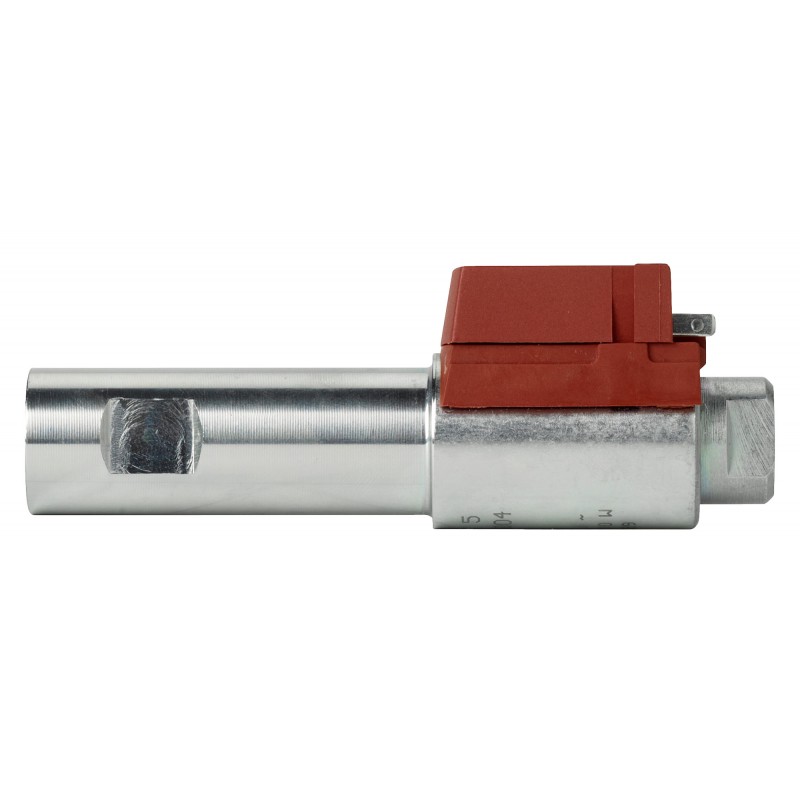

030N6013 DANFOSS HEATING Oil preheater FPHE 5 Service
030N6013
DANFOSS HEATING
40
Oil preheater FPHE 5 Service
Preheaters, FPHE 5, 6 kg/h, PTC element: 1 x 120, Thermostat: 60/32
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲FPHE 5 - SERVICE
Product details
| Gross weight | 0.113 Kilogram |
| Net weight | 0.112 Kilogram |
| Volume | 0.116 Liter |
| EAN | 5702425092336 |
| Type | FPHE 5 |
| Product group | Preheaters |
| Gross weight | 0.113 Kilogram |
| Net weight | 0.112 Kilogram |
| Volume | 0.116 Liter |
| EAN | 5702425092336 |
| Type | FPHE 5 |
| Product group | Preheaters |
| Approval | CE Intertek Semko |
| Capacity [kg/h] | 6 kg/h |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Closing valve | No |
| Connections | M16 x 1 |
| Contains batteries | No |
| Cut in temperature [°C] | 60 °C |
| Cut out temperature [°C] | 32 °C |
| Description | FPHE 5 - SERVICE |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a)-I 7(c)-I |
| Neck diameter [mm] | 18.5 mm |
| Packing format | Multi pack |
| PTC element | 1 x 120 |
| Quantity per packing format | 40 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a3d8754f-6209-413f-b077-51e1d3e96389 |
| SCIP dossier product name | Oil preheaters FPHE 5 other |
| Supply voltage [V] | 230 V |
| Supply voltage [V] [Max] | 255 V |
| Supply voltage [V] [Min] | 180 V |
| Thermostat | 60/32 |
| UL evaluated | Out of scope |
| Approval | CE Intertek Semko |
| Capacity [kg/h] | 6 kg/h |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Closing valve | No |
| Connections | M16 x 1 |
| Contains batteries | No |
| Cut in temperature [°C] | 60 °C |
| Cut out temperature [°C] | 32 °C |
| Description | FPHE 5 - SERVICE |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a)-I 7(c)-I |
| Neck diameter [mm] | 18.5 mm |
| Packing format | Multi pack |
| PTC element | 1 x 120 |
| Quantity per packing format | 40 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a3d8754f-6209-413f-b077-51e1d3e96389 |
| SCIP dossier product name | Oil preheaters FPHE 5 other |
| Supply voltage [V] | 230 V |
| Supply voltage [V] [Max] | 255 V |
| Supply voltage [V] [Min] | 180 V |
| Thermostat | 60/32 |
| UL evaluated | Out of scope |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 030N6013 030N6013 EN_030N5003.pdf | 850 Kbytes |
|
