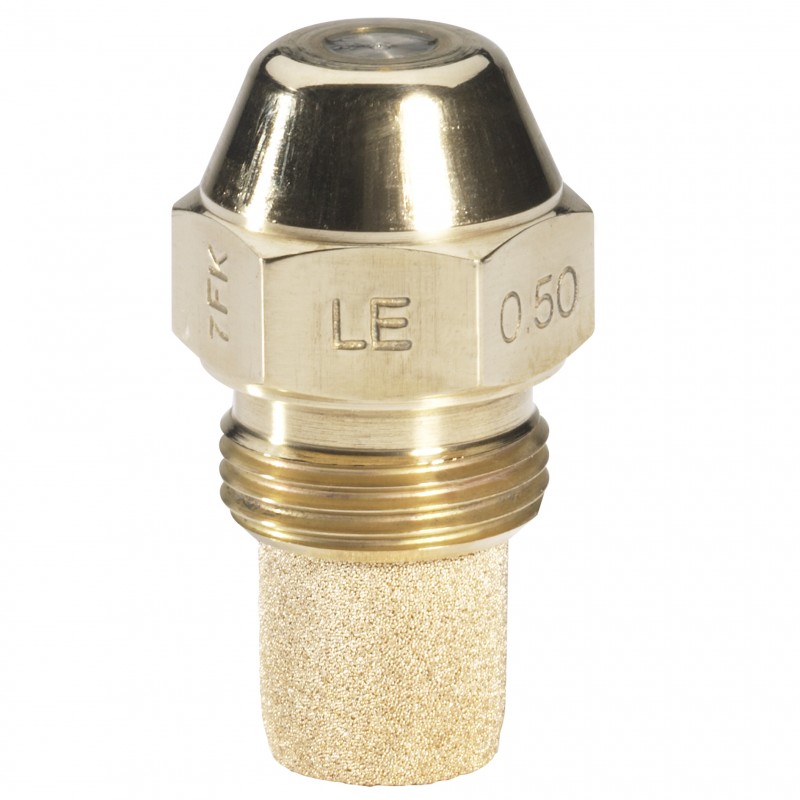

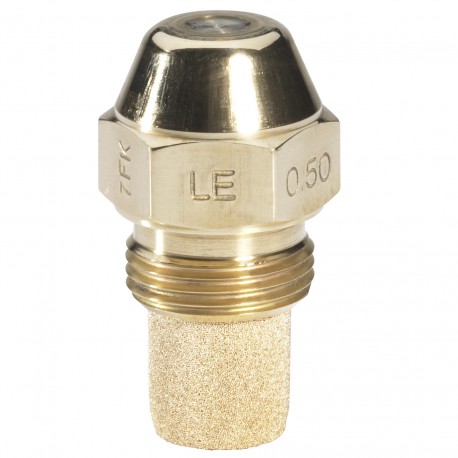

030F4714 DANFOSS HEATING Nozzle 0.65 gph 45° S LE
030F4714
DANFOSS HEATING
10
Nozzle 0.65 gph 45° S LE
Oil Nozzles, LE, 0.65 gal/h, 2.67 kg/h, 45 °, Solid
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲0.65GAL 45S LE
Product details
| Gross weight | 0.035 Kilogram |
| Net weight | 0.034 Kilogram |
| Volume | 0.02 Liter |
| EAN | 5702425015601 |
| Type | LE |
| Product group | Oil Nozzles |
| Gross weight | 0.035 Kilogram |
| Net weight | 0.034 Kilogram |
| Volume | 0.02 Liter |
| EAN | 5702425015601 |
| Type | LE |
| Product group | Oil Nozzles |
| Capacity [kg/h] | 2.67 kg/h |
| Capacity [l/h] | 0 L/h |
| Capacity [USgal/h] | 0.65 gal/h |
| CE evaluated | Out of scope |
| CEN | No |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Description | 0.65GAL 45S LE |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(a)-I 6(c) |
| Filter grade [µm] | 30 |
| Filter type | Sinter |
| LE anti-drip valve | Yes |
| Material type | Brass |
| Packing format | Industrial pack |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reference point | 7 bar, 3.4 cSt, 820 kg/m³ |
| SCIP dossier no. | 2e5b5d5c-a225-4f44-9a73-5b44abae4fe7 |
| SCIP dossier product name | LE Nozzles 0.40-1.75 gph |
| Shape | Conical |
| Specification point | 11.6 bar, 3.4 cSt, 840 kg/m³ |
| Spray angle [°] | 45 ° |
| Spray pattern | Solid |
| spray pattern marking | S |
| UL evaluated | Out of scope |
| Capacity [kg/h] | 2.67 kg/h |
| Capacity [l/h] | 0 L/h |
| Capacity [USgal/h] | 0.65 gal/h |
| CE evaluated | Out of scope |
| CEN | No |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Description | 0.65GAL 45S LE |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(a)-I 6(c) |
| Filter grade [µm] | 30 |
| Filter type | Sinter |
| LE anti-drip valve | Yes |
| Material type | Brass |
| Packing format | Industrial pack |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reference point | 7 bar, 3.4 cSt, 820 kg/m³ |
| SCIP dossier no. | 2e5b5d5c-a225-4f44-9a73-5b44abae4fe7 |
| SCIP dossier product name | LE Nozzles 0.40-1.75 gph |
| Shape | Conical |
| Specification point | 11.6 bar, 3.4 cSt, 840 kg/m³ |
| Spray angle [°] | 45 ° |
| Spray pattern | Solid |
| spray pattern marking | S |
| UL evaluated | Out of scope |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 030F4714 030F4714 ES_030F8704.pdf | 1 Mbytes |
|
