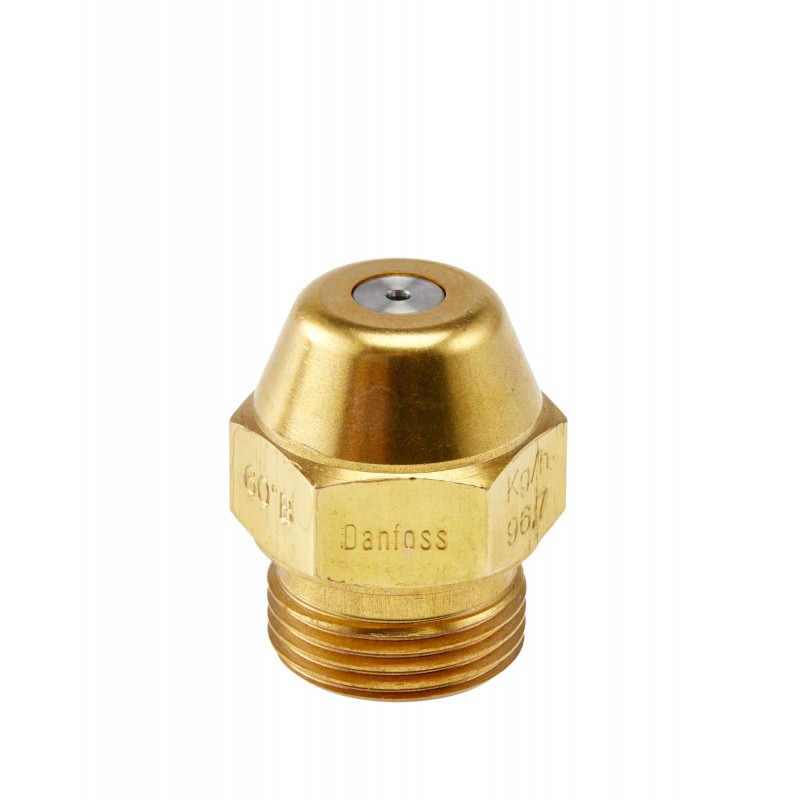

030B0147 DANFOSS HEATING Nozzle 19.50 gph 60° B OD
030B0147
DANFOSS HEATING
10
Nozzle 19.50 gph 60° B OD
Oil Nozzles, OD B, 19.5 gal/h, 76.21 kg/h, 60 °, Semi solid
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲19.50GAL 60B OD
Product details
| Gross weight | 0.027 Kilogram |
| Net weight | 0.026 Kilogram |
| Volume | 0.025 Liter |
| EAN | 5702425001499 |
| Type | OD B |
| Product group | Oil Nozzles |
| Gross weight | 0.027 Kilogram |
| Net weight | 0.026 Kilogram |
| Volume | 0.025 Liter |
| EAN | 5702425001499 |
| Type | OD B |
| Product group | Oil Nozzles |
| Capacity [kg/h] | 76.21 kg/h |
| Capacity [l/h] | 0 L/h |
| Capacity [USgal/h] | 19.5 gal/h |
| CE evaluated | Out of scope |
| CEN | No |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Description | 19.50GAL 60B OD |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(a)-I 6(c) |
| Filter type | None |
| LE anti-drip valve | No |
| Material type | Brass |
| Packing format | Industrial pack |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reference point | 7 bar, 3.4 cSt, 820 kg/m³ |
| SCIP dossier no. | 21e3e541-16e1-47f4-9b1f-b4c4f1399730 |
| SCIP dossier product name | OD - Nozzle - 12.00-32.00 gph |
| Shape | Conical |
| Specification point | 10 bar, 3.4 cSt, 840 kg/m³ |
| Spray angle [°] | 60 ° |
| Spray pattern | Semi solid |
| spray pattern marking | B |
| UL evaluated | Out of scope |
| Capacity [kg/h] | 76.21 kg/h |
| Capacity [l/h] | 0 L/h |
| Capacity [USgal/h] | 19.5 gal/h |
| CE evaluated | Out of scope |
| CEN | No |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Description | 19.50GAL 60B OD |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(a)-I 6(c) |
| Filter type | None |
| LE anti-drip valve | No |
| Material type | Brass |
| Packing format | Industrial pack |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reference point | 7 bar, 3.4 cSt, 820 kg/m³ |
| SCIP dossier no. | 21e3e541-16e1-47f4-9b1f-b4c4f1399730 |
| SCIP dossier product name | OD - Nozzle - 12.00-32.00 gph |
| Shape | Conical |
| Specification point | 10 bar, 3.4 cSt, 840 kg/m³ |
| Spray angle [°] | 60 ° |
| Spray pattern | Semi solid |
| spray pattern marking | B |
| UL evaluated | Out of scope |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 030B0147 030B0147 EN_030F8152.pdf | 448 Kbytes |
|
