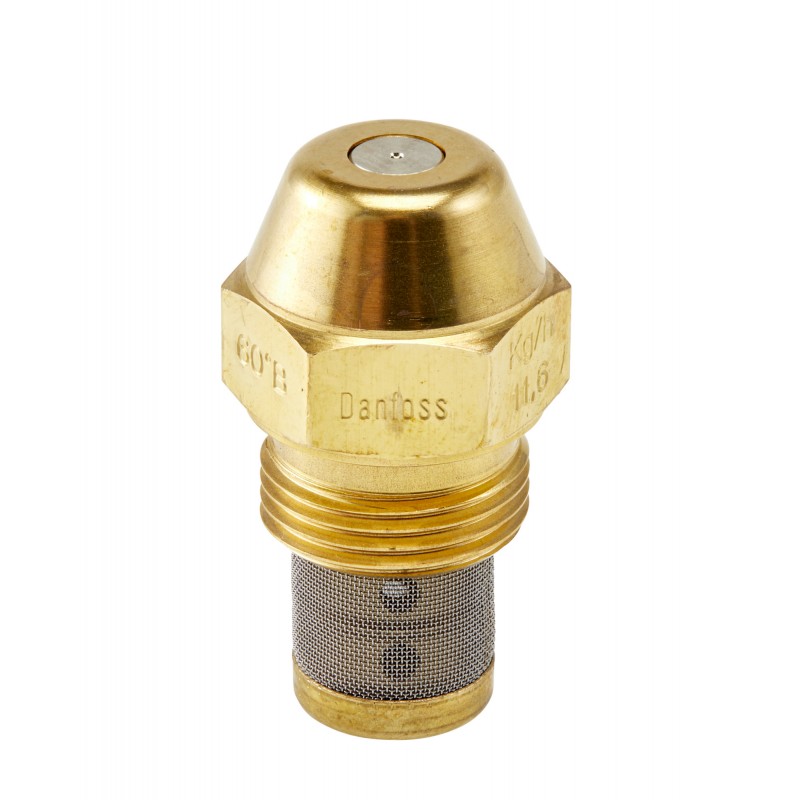

030B0119 DANFOSS HEATING Nozzle 3.75 gph 60° B OD **
030B0119
DANFOSS HEATING
10
Nozzle 3.75 gph 60° B OD **
Oil Nozzles, OD B, 3.75 gal/h, 13.80 kg/h, 60 °, Semi solid
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲3.75GAL 60B OD
Product details
| Gross weight | 0.034 Kilogram |
| Net weight | 0.034 Kilogram |
| Volume | 0.024 Liter |
| EAN | 5702425001581 |
| Gross weight | 0.034 Kilogram |
| Net weight | 0.034 Kilogram |
| Volume | 0.024 Liter |
| EAN | 5702425001581 |
| Approval | CE |
| Capacity [kg/h] | 13.8 kg/h |
| Capacity [l/h] | 0 L/h |
| Capacity [USgal/h] | 3.75 gal/h |
| CE evaluated | Yes |
| CEN | No |
| China RoHS compliance | Out of scope |
| Description | 3.75GAL 60B OD |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(a)-I 6(c) |
| Filter grade [µm] | 140 |
| Filter type | Monel strainer |
| In scope of WEEE and contain batteries | No |
| LE anti-drip valve | No |
| Material type | Brass |
| Packing format | Industrial pack |
| Product group | Oil Nozzles |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reference point | 7 bar, 3.4 cSt, 820 kg/m³ |
| SCIP dossier no. | 28e6ee88-87e8-4899-8be6-9efe56f29e2e |
| SCIP dossier product name | OD - Nozzle - 0.00-6.00 gph |
| Shape | Conical |
| Specification point | 10 bar, 3.4 cSt, 840 kg/m³ |
| Spray angle [°] | 60 ° |
| Spray pattern | Semi solid |
| spray pattern marking | B |
| Type | OD B |
| UK RoHS compliance | Yes with exemptions |
| UK RoHS exemption clause | 12 18 |
| UL evaluated | Out of scope |
| Approval | CE |
| Capacity [kg/h] | 13.8 kg/h |
| Capacity [l/h] | 0 L/h |
| Capacity [USgal/h] | 3.75 gal/h |
| CE evaluated | Yes |
| CEN | No |
| China RoHS compliance | Out of scope |
| Description | 3.75GAL 60B OD |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(a)-I 6(c) |
| Filter grade [µm] | 140 |
| Filter type | Monel strainer |
| In scope of WEEE and contain batteries | No |
| LE anti-drip valve | No |
| Material type | Brass |
| Packing format | Industrial pack |
| Product group | Oil Nozzles |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reference point | 7 bar, 3.4 cSt, 820 kg/m³ |
| SCIP dossier no. | 28e6ee88-87e8-4899-8be6-9efe56f29e2e |
| SCIP dossier product name | OD - Nozzle - 0.00-6.00 gph |
| Shape | Conical |
| Specification point | 10 bar, 3.4 cSt, 840 kg/m³ |
| Spray angle [°] | 60 ° |
| Spray pattern | Semi solid |
| spray pattern marking | B |
| Type | OD B |
| UK RoHS compliance | Yes with exemptions |
| UK RoHS exemption clause | 12 18 |
| UL evaluated | Out of scope |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 030B0119 030B0119 EN_030F4908.pdf | 496 Kbytes |
|
