014U0295 DANFOSS HEATING DN20S,qp1.5,130,MBus,L,RS,kWh
014U0295
DANFOSS HEATING
DN20S,qp1.5,130,MBus,L,RS,kWh

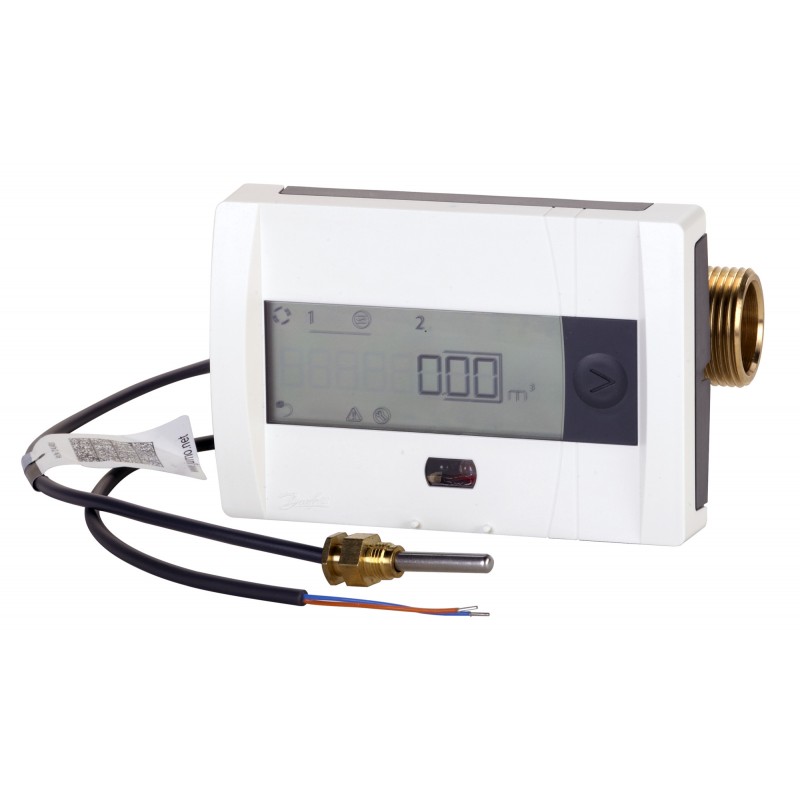

Energy meters, SonoSafe 10, 20 mm, qp [m³/h]: 1.5, Heating, Battery 1 A-cell, No integrated communication, No interface module
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Energy meter for residential applications
Product details
| Gross weight | 1.1 Kg |
| Net weight | 0.8 Kg |
| Volume | 3 Liter |
| EAN | 5702425155710 |
| Gross weight | 1.1 Kg |
| Net weight | 0.8 Kg |
| Volume | 3 Liter |
| EAN | 5702425155710 |
| 1 Primary battery SUM weight Kg | 0.018 |
| 1 Primary battery weight Kg | 0.018 |
| Accuracy standard | Class 2 to EN1434 |
| Application | Heating |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 1 |
| Battery type or Name | AA Lithium |
| Cable insulation material | PVC halogen free |
| Cable length between calculator and flow sensor [m] | 0.5 m |
| China RoHS | Out of scope |
| Commissioning tool | SonoApp |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 20 mm |
| Dynamic range | 1:100 |
| EU RoHS compliance | No - out of scope |
| In scope of WEEE and contain batteries | Yes |
| Integrated communication | No integrated communication |
| Interface module slot 1 | No interface module |
| IP protection class | IP65 |
| Length [mm] | 130 mm |
| Product group | Energy meters |
| qp [m³/h] | 1.5 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder |
| Supply voltage type | Battery 1 A-cell |
| Type | SonoSafe 10 |
| UK RoHS | Out of scope |
| 1 Primary battery SUM weight Kg | 0.018 |
| 1 Primary battery weight Kg | 0.018 |
| Accuracy standard | Class 2 to EN1434 |
| Application | Heating |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 1 |
| Battery type or Name | AA Lithium |
| Cable insulation material | PVC halogen free |
| Cable length between calculator and flow sensor [m] | 0.5 m |
| China RoHS | Out of scope |
| Commissioning tool | SonoApp |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 20 mm |
| Dynamic range | 1:100 |
| EU RoHS compliance | No - out of scope |
| In scope of WEEE and contain batteries | Yes |
| Integrated communication | No integrated communication |
| Interface module slot 1 | No interface module |
| IP protection class | IP65 |
| Length [mm] | 130 mm |
| Product group | Energy meters |
| qp [m³/h] | 1.5 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder |
| Supply voltage type | Battery 1 A-cell |
| Type | SonoSafe 10 |
| UK RoHS | Out of scope |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 014U0295 014U0295 EN_014U0350.pdf | 1 Mbytes |
|
