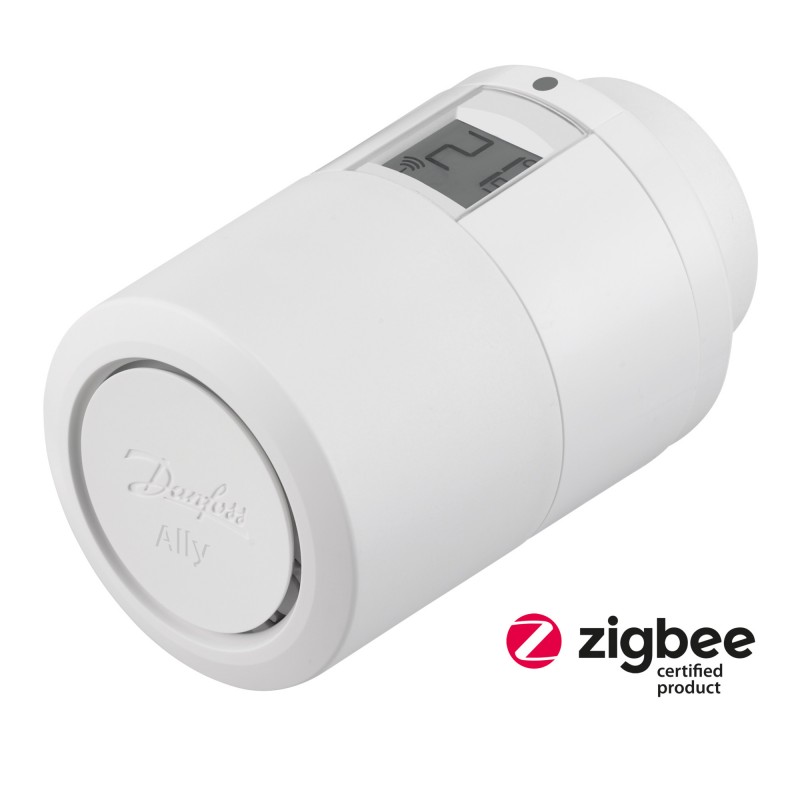

014G2461 DANFOSS HEATING Danfoss Ally Radiator Thermostat IT B2C
Reference: 014G2461
Manufacturer: DANFOSS HEATING
Description:
Danfoss Ally Radiator Thermostat IT B2C
Radiator thermostat, Danfoss Ally™, Adapter type: RA; Caleffi; M30; Giacomini, 2.4 GHz
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
Electronic thermostatic radiator valve for the Danfoss Ally™ system, RA; Caleffi; M30; Giacomini, Zigbee
Product details
| Gross weight | 0.283 Kilogram |
| Net weight | 0.2 Kilogram |
| Volume | 0.767 Liter |
| EAN | 5702425245121 |
| Type | Danfoss Ally™ |
| Product group | Radiator thermostat |
| Gross weight | 0.283 Kilogram |
| Net weight | 0.2 Kilogram |
| Volume | 0.767 Liter |
| EAN | 5702425245121 |
| Type | Danfoss Ally™ |
| Product group | Radiator thermostat |
| 1 Primary battery SUM weight Kg | 0.044 |
| 1 Primary battery weight Kg | 0.022 |
| Actuator type | ABRA-A5 |
| Adapter type | RA M30 Caleffi Giacomini |
| Ambient temperature [°C] [max] | 40 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Residential (pollution degree 2) |
| Approval | CE UA.TR.089 EAC UKCA |
| Ball pressure test temperature [°C] | 75 °C |
| Battery lifetime [Years] | 2 yr |
| Battery qty | 2 |
| Battery type or Name | Alkaline AA (LR6/ZR6) |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour | RAL 9016 |
| Contains batteries | Yes |
| Control | PID |
| Description | Electronic thermostatic radiator valve for the Danfoss Ally™ system |
| Display type | LCD with backlight |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I |
| Heating control type | Radiator thermostat |
| In scope of WEEE | Yes |
| Low battery indicator | Yes |
| Noise level Heat dB(A) JIS C 9612 | <30 |
| Open-window function | Yes |
| Power consumption (standby) [mW] | 3 mW |
| Power consumption [W] | 1.2 W |
| Product width [mm] | 55 mm |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Diboron trioxide (B2O3, CAS no. 1303-86-2) |
| Safety classification | Type 1 |
| SCIP dossier no. | a90f68b8-f3fb-4eb7-93b0-8738ffc7d80c |
| SCIP dossier product name | Danfoss Ally eTRV - Electronic thermostatic radiator valve |
| Software class | A |
| Spindle movement | Linear, up to 4.5 mm, max. 2 mm on valve (1 mm/s) |
| Supply batteries | 2 x 1,5 V AA-Alkaline batteries |
| System integration | Danfoss Ally™ |
| Temperature measurement interval | 1 min |
| Temperature setting range [°C] [Max] | 35 °C |
| Temperature setting range [°C] [Min] | 5 °C |
| Thermostat IP Class | 20 |
| Transmission frequency [GHz] | 2.4 GHz |
| Water temperature [°C] [Max] | 90 °C |
| Weight per battery | 23 g |
| Wireless standard | Zigbee |
| 1 Primary battery SUM weight Kg | 0.044 |
| 1 Primary battery weight Kg | 0.022 |
| Actuator type | ABRA-A5 |
| Adapter type | RA M30 Caleffi Giacomini |
| Ambient temperature [°C] [max] | 40 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Residential (pollution degree 2) |
| Approval | CE UA.TR.089 EAC UKCA |
| Ball pressure test temperature [°C] | 75 °C |
| Battery lifetime [Years] | 2 yr |
| Battery qty | 2 |
| Battery type or Name | Alkaline AA (LR6/ZR6) |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour | RAL 9016 |
| Contains batteries | Yes |
| Control | PID |
| Description | Electronic thermostatic radiator valve for the Danfoss Ally™ system |
| Display type | LCD with backlight |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I |
| Heating control type | Radiator thermostat |
| In scope of WEEE | Yes |
| Low battery indicator | Yes |
| Noise level Heat dB(A) JIS C 9612 | <30 |
| Open-window function | Yes |
| Power consumption (standby) [mW] | 3 mW |
| Power consumption [W] | 1.2 W |
| Product width [mm] | 55 mm |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Diboron trioxide (B2O3, CAS no. 1303-86-2) |
| Safety classification | Type 1 |
| SCIP dossier no. | a90f68b8-f3fb-4eb7-93b0-8738ffc7d80c |
| SCIP dossier product name | Danfoss Ally eTRV - Electronic thermostatic radiator valve |
| Software class | A |
| Spindle movement | Linear, up to 4.5 mm, max. 2 mm on valve (1 mm/s) |
| Supply batteries | 2 x 1,5 V AA-Alkaline batteries |
| System integration | Danfoss Ally™ |
| Temperature measurement interval | 1 min |
| Temperature setting range [°C] [Max] | 35 °C |
| Temperature setting range [°C] [Min] | 5 °C |
| Thermostat IP Class | 20 |
| Transmission frequency [GHz] | 2.4 GHz |
| Water temperature [°C] [Max] | 90 °C |
| Weight per battery | 23 g |
| Wireless standard | Zigbee |
