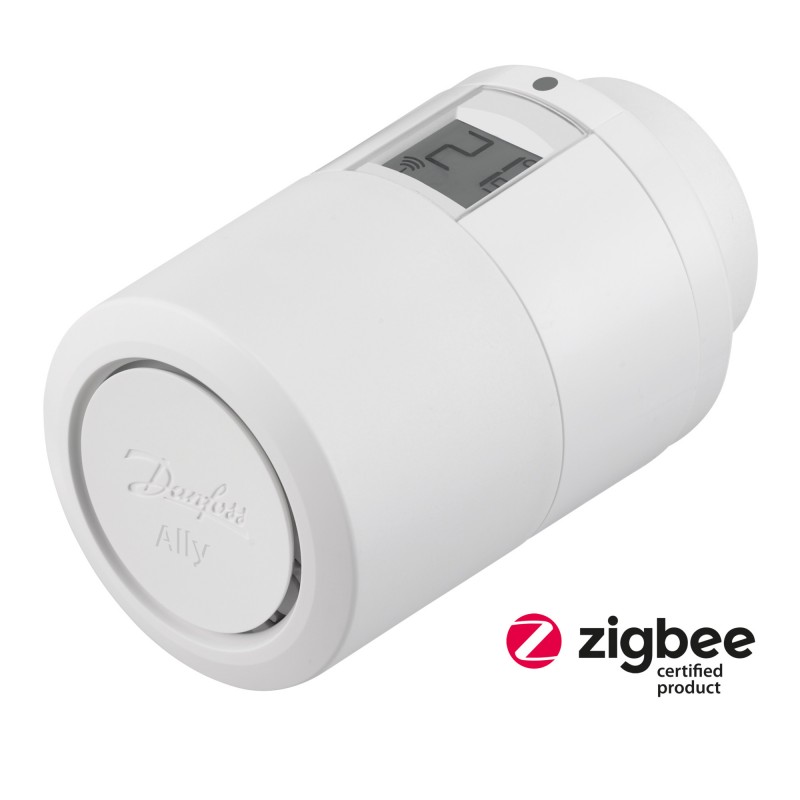

014G2460 DANFOSS HEATING Danfoss Ally Radiator Thermostat EU B2C
014G2460
DANFOSS HEATING
Danfoss Ally Radiator Thermostat EU B2C
Radiator thermostat, Danfoss Ally™, Adapter type: RAV; RA; RAVL; M30, 2.4 GHz
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Electronic thermostatic radiator valve for the Danfoss Ally™ system, Zigbee, RAV; RA; RAVL; M30, Zigbee
Product details
| Gross weight | 0.251 Kilogram |
| Net weight | 0.2 Kilogram |
| Volume | 0.828 Liter |
| EAN | 5702425245015 |
| Type | Danfoss Ally™ |
| Product group | Radiator thermostat |
| Gross weight | 0.251 Kilogram |
| Net weight | 0.2 Kilogram |
| Volume | 0.828 Liter |
| EAN | 5702425245015 |
| Type | Danfoss Ally™ |
| Product group | Radiator thermostat |
| Actuator type | Electromechanical |
| Adapter type | RA M30 RAVL RAV |
| Ambient temperature [°C] [max] | 40 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Residential (pollution degree 2) |
| Approval | CE UA.TR.089 EAC UKCA |
| Ball pressure test temperature [°C] | 75 °C |
| Battery lifetime [Years] | 2.5 yr |
| Battery type or Name | Alkaline AA (LR6/ZR6) |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour | RAL 9016 |
| Contains batteries | No |
| Control | PID |
| Description | Electronic thermostatic radiator valve for the Danfoss Ally™ system, Zigbee |
| Display type | LCD with backlight |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I |
| Heating control type | Radiator thermostat |
| In scope of WEEE | Yes |
| Low battery indicator | Yes |
| Noise level Heat dB(A) JIS C 9612 | <30 |
| Open-window function | Yes |
| Power consumption (standby) [mW] | 3 mW |
| Power consumption [W] | 1.2 W |
| Product width [mm] | 55 mm |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Diboron trioxide (B2O3, CAS no. 1303-86-2) |
| Safety classification | Type 1 |
| SCIP dossier no. | a90f68b8-f3fb-4eb7-93b0-8738ffc7d80c |
| SCIP dossier product name | Danfoss Ally eTRV - Electronic thermostatic radiator valve |
| Software class | A |
| Spindle movement | Linear, up to 4.5 mm, max. 2 mm on valve (1 mm/s) |
| Supply batteries | 2 x 1,5 V AA-Alkaline batteries |
| System integration | Danfoss Ally™ |
| Temperature measurement interval | 1 min |
| Temperature setting range [°C] [Max] | 35 °C |
| Temperature setting range [°C] [Min] | 5 °C |
| Thermostat IP Class | 20 |
| Transmission frequency [GHz] | 2.4 GHz |
| UNSPSC CODE | 40101801 |
| Water temperature [°C] [Max] | 90 °C |
| Wireless standard | Zigbee |
| Actuator type | Electromechanical |
| Adapter type | RA M30 RAVL RAV |
| Ambient temperature [°C] [max] | 40 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Residential (pollution degree 2) |
| Approval | CE UA.TR.089 EAC UKCA |
| Ball pressure test temperature [°C] | 75 °C |
| Battery lifetime [Years] | 2.5 yr |
| Battery type or Name | Alkaline AA (LR6/ZR6) |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour | RAL 9016 |
| Contains batteries | No |
| Control | PID |
| Description | Electronic thermostatic radiator valve for the Danfoss Ally™ system, Zigbee |
| Display type | LCD with backlight |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I |
| Heating control type | Radiator thermostat |
| In scope of WEEE | Yes |
| Low battery indicator | Yes |
| Noise level Heat dB(A) JIS C 9612 | <30 |
| Open-window function | Yes |
| Power consumption (standby) [mW] | 3 mW |
| Power consumption [W] | 1.2 W |
| Product width [mm] | 55 mm |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Diboron trioxide (B2O3, CAS no. 1303-86-2) |
| Safety classification | Type 1 |
| SCIP dossier no. | a90f68b8-f3fb-4eb7-93b0-8738ffc7d80c |
| SCIP dossier product name | Danfoss Ally eTRV - Electronic thermostatic radiator valve |
| Software class | A |
| Spindle movement | Linear, up to 4.5 mm, max. 2 mm on valve (1 mm/s) |
| Supply batteries | 2 x 1,5 V AA-Alkaline batteries |
| System integration | Danfoss Ally™ |
| Temperature measurement interval | 1 min |
| Temperature setting range [°C] [Max] | 35 °C |
| Temperature setting range [°C] [Min] | 5 °C |
| Thermostat IP Class | 20 |
| Transmission frequency [GHz] | 2.4 GHz |
| UNSPSC CODE | 40101801 |
| Water temperature [°C] [Max] | 90 °C |
| Wireless standard | Zigbee |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 014G2460 014G2460 EN_014G2420.pdf | 487 Kbytes |
|
