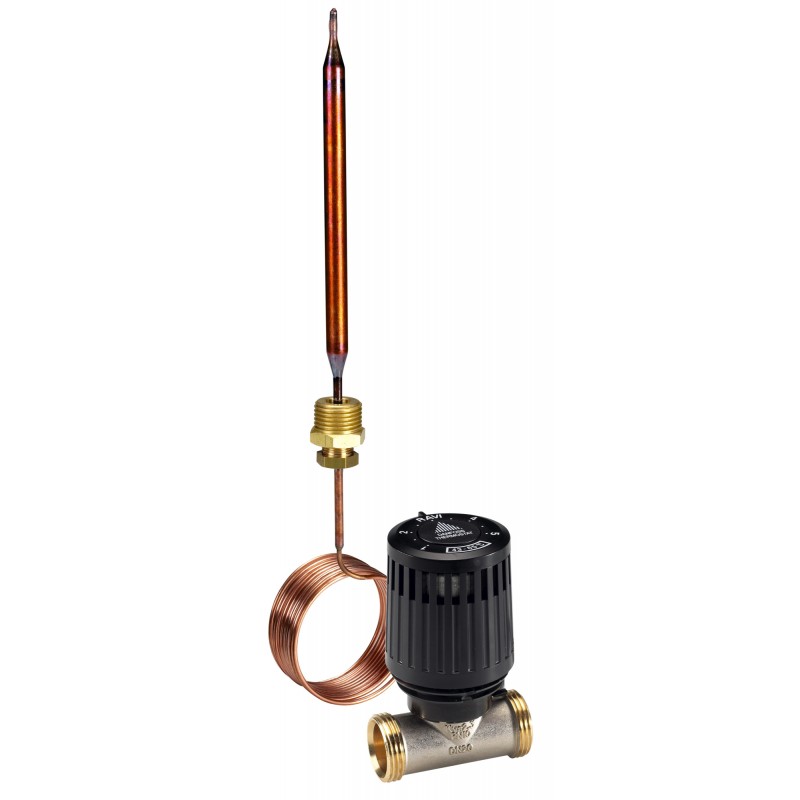

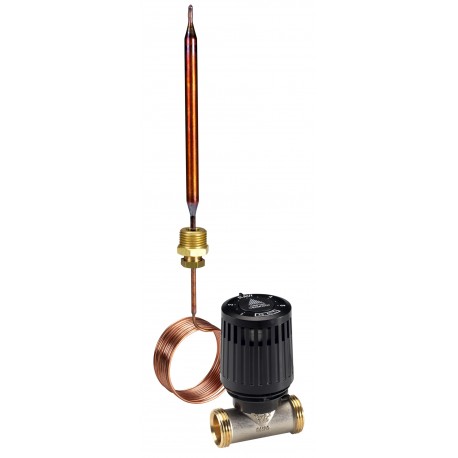

013U8086 DANFOSS HEATING RAVI-VMT PN10 25/8 43-65/2m ext. thread
013U8086
DANFOSS HEATING
RAVI-VMT PN10 25/8 43-65/2m ext. thread
RAVI-VMT, PN 10, DN 25, 8 m³/h, 43 °C - 65 °C, 2 m, External Thread
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲RAVI-VMT PN10 25/8 43-65/2m ext. thread
Product details
| Gross weight | 1.403 Kilogram |
| Net weight | 1.403 Kilogram |
| Volume | 2.368 Liter |
| EAN | 5702421500606 |
| Type | RAVI-VMT |
| Product group | Temperature controllers |
| Gross weight | 1.403 Kilogram |
| Net weight | 1.403 Kilogram |
| Volume | 2.368 Liter |
| EAN | 5702421500606 |
| Type | RAVI-VMT |
| Product group | Temperature controllers |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | DIN 14597:2005-12 TR838 |
| Capillary tube length [m] | 2 m |
| Cavitation factor | 0.5 |
| Cone /seat sealing material | NBR / Brass W. No 2.0402 |
| Connection size | G 1 1/4 A |
| Connection standard | ISO 228/1 |
| Connection types | External Thread |
| Contains batteries | No |
| Description | RAVI-VMT PN10 25/8 43-65/2m ext. thread |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 0.8 bar |
| EU RoHS compliance | Yes with exemptions |
| Flow characteristic | Linear |
| Flow control | No |
| Function | Temp. controller |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | Yes |
| Impulse tube material | Copper mat. No 2.0090 |
| Kvs values [m³/h] | 8 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature at sensor [°C] [Max] | 120 °C |
| Medium alternative | Glycolic water up to 30% |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 10 |
| Pressure nominal [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rection time close [sec] | 3 " |
| Rection time open [sec] | 3 " |
| Return limiter function | No |
| Temperature control | Yes |
| Temperature sensor diameter [mm] | 9.5 mm |
| Temperature sensor length [mm] | 150 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature sensor mounting | Colder |
| Temperature setting range [°C] [Max] | 65 °C |
| Temperature setting range [°C] [Min] | 43 °C |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Valve body material | Brass CuZn40Pb2 W. no 2.0402 |
| Valve size | DN 25 |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | DIN 14597:2005-12 TR838 |
| Capillary tube length [m] | 2 m |
| Cavitation factor | 0.5 |
| Cone /seat sealing material | NBR / Brass W. No 2.0402 |
| Connection size | G 1 1/4 A |
| Connection standard | ISO 228/1 |
| Connection types | External Thread |
| Contains batteries | No |
| Description | RAVI-VMT PN10 25/8 43-65/2m ext. thread |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 0.8 bar |
| EU RoHS compliance | Yes with exemptions |
| Flow characteristic | Linear |
| Flow control | No |
| Function | Temp. controller |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | Yes |
| Impulse tube material | Copper mat. No 2.0090 |
| Kvs values [m³/h] | 8 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature at sensor [°C] [Max] | 120 °C |
| Medium alternative | Glycolic water up to 30% |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 10 |
| Pressure nominal [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rection time close [sec] | 3 " |
| Rection time open [sec] | 3 " |
| Return limiter function | No |
| Temperature control | Yes |
| Temperature sensor diameter [mm] | 9.5 mm |
| Temperature sensor length [mm] | 150 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature sensor mounting | Colder |
| Temperature setting range [°C] [Max] | 65 °C |
| Temperature setting range [°C] [Min] | 43 °C |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Valve body material | Brass CuZn40Pb2 W. no 2.0402 |
| Valve size | DN 25 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
