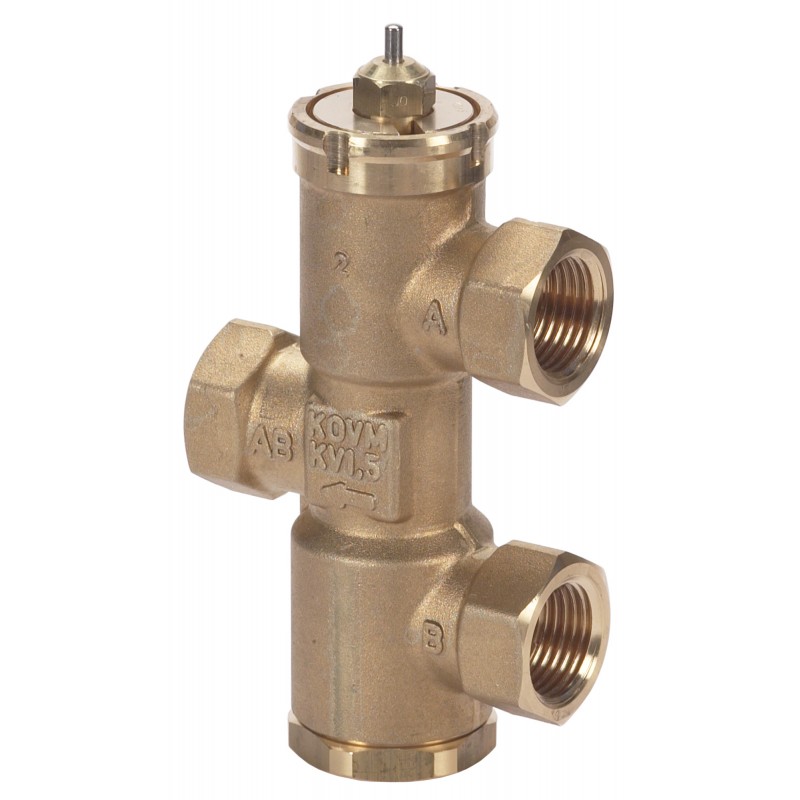

013U3020 DANFOSS HEATING KOVM PN10 15/2 3-way int. thread
Reference: 013U3020
Manufacturer: DANFOSS HEATING
Description:
KOVM PN10 15/2 3-way int. thread
KOVM, PN 10, DN 15, 2 m³/h, Rp 1/2
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
KOVM PN10 15/2 3-way int. thread
Product details
| Gross weight | 0.645 Kilogram |
| Net weight | 0.645 Kilogram |
| Volume | 0.821 Liter |
| EAN | 5702421300442 |
| Type | KOVM |
| Product group | Motorized control valves |
| Gross weight | 0.645 Kilogram |
| Net weight | 0.645 Kilogram |
| Volume | 0.821 Liter |
| EAN | 5702421300442 |
| Type | KOVM |
| Product group | Motorized control valves |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| Connection size | Rp 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | KOVM PN10 15/2 3-way int. thread |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 1.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow characteristic | Linear |
| Function | Control valve |
| Function 2 | Mixing valve |
| Kvs values [m³/h] | 2 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 90 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 6 |
| Pressure class | PN 10 |
| Pressure nominal [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle material | Stainless steel 18/8 |
| Spindle position | Normally open |
| Stroke [mm] | 1.5 mm |
| Valve body material | Brass W. No 2.0402 |
| Valve cone material | EPDM |
| Valve size | DN 15 |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| Connection size | Rp 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | KOVM PN10 15/2 3-way int. thread |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 1.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow characteristic | Linear |
| Function | Control valve |
| Function 2 | Mixing valve |
| Kvs values [m³/h] | 2 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 90 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 6 |
| Pressure class | PN 10 |
| Pressure nominal [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle material | Stainless steel 18/8 |
| Spindle position | Normally open |
| Stroke [mm] | 1.5 mm |
| Valve body material | Brass W. No 2.0402 |
| Valve cone material | EPDM |
| Valve size | DN 15 |
DATASHEET - PDF
