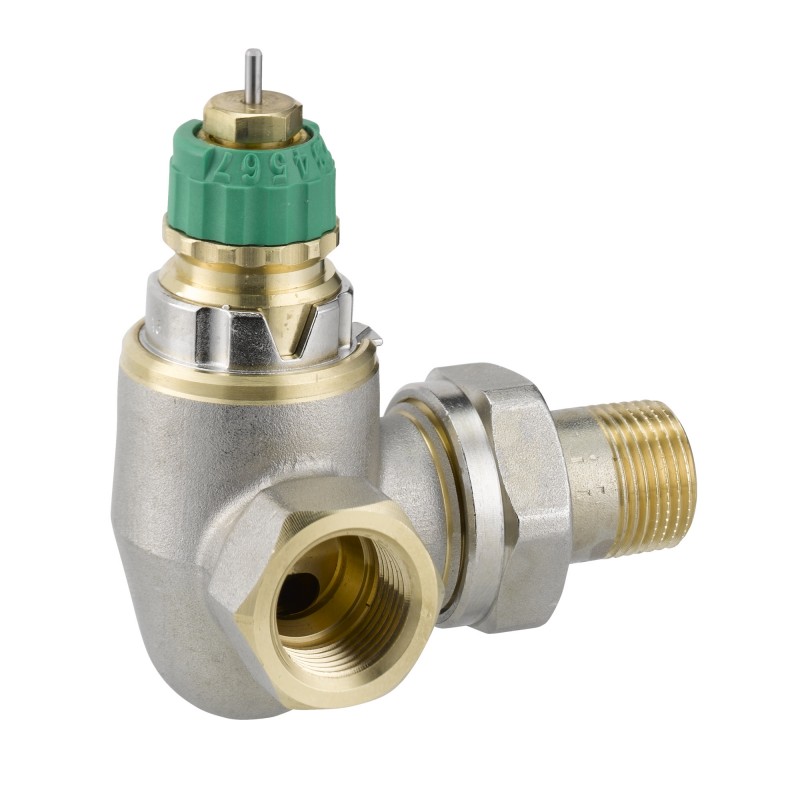

013G7718 DANFOSS HEATING RA-DV 10, LEFT
013G7718
DANFOSS HEATING
RA-DV 10, LEFT
Radiator Valves, RA-DV, Dynamic (pressure independent), DN 10, Double angle left, Other permitted
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Dynamic valve, pressure independent
Product details
| Gross weight | 0.278 Kilogram |
| Net weight | 0.265 Kilogram |
| Volume | 0.329 Liter |
| EAN | 5702425126949 |
| Type | RA-DV |
| Product group | Radiator Valves |
| Gross weight | 0.278 Kilogram |
| Net weight | 0.265 Kilogram |
| Volume | 0.329 Liter |
| EAN | 5702425126949 |
| Type | RA-DV |
| Product group | Radiator Valves |
| Application | 2-pipe system |
| BAC efficiency ISO 52120-1 and ISO 16484-4 | Class A |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | Rp 3/8 |
| Connection size out | R 3/8 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | Dynamic valve, pressure independent |
| Design | Double angle left |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Differential pressure range [bar] [Min] | 0.1 bar |
| Dimension standard | Other permitted |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Finish | Nickel plated |
| Flow [l/h] [Max] | 135 L/h |
| Flow at setting 1 [l/h] [Max] | 10 L/h |
| Flow at setting 2 [l/h] [Max] | 15 L/h |
| Flow at setting 3 [l/h] [Max] | 20 L/h |
| Flow at setting 4 [l/h] [Max] | 35 L/h |
| Flow at setting 5 [l/h] [Max] | 50 L/h |
| Flow at setting 6 [l/h] [Max] | 80 L/h |
| Flow at setting 7 [l/h] [Max] | 100 L/h |
| Flow at setting N [l/h] [Max] | 135 L/h |
| Flow temperature [°C] [Max] | 95 °C |
| Presetting | yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 0d86001d-3a28-4ee4-8d0a-7c500968c9cc |
| SCIP dossier product name | RA-DV Dynamic radiator valve |
| Tailpiece type | Standard |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve size | DN 10 |
| Valve type | Dynamic (pressure independent) |
| Working pressure [bar] [Max] | 10 bar |
| Application | 2-pipe system |
| BAC efficiency ISO 52120-1 and ISO 16484-4 | Class A |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | Rp 3/8 |
| Connection size out | R 3/8 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | Dynamic valve, pressure independent |
| Design | Double angle left |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Differential pressure range [bar] [Min] | 0.1 bar |
| Dimension standard | Other permitted |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Finish | Nickel plated |
| Flow [l/h] [Max] | 135 L/h |
| Flow at setting 1 [l/h] [Max] | 10 L/h |
| Flow at setting 2 [l/h] [Max] | 15 L/h |
| Flow at setting 3 [l/h] [Max] | 20 L/h |
| Flow at setting 4 [l/h] [Max] | 35 L/h |
| Flow at setting 5 [l/h] [Max] | 50 L/h |
| Flow at setting 6 [l/h] [Max] | 80 L/h |
| Flow at setting 7 [l/h] [Max] | 100 L/h |
| Flow at setting N [l/h] [Max] | 135 L/h |
| Flow temperature [°C] [Max] | 95 °C |
| Presetting | yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 0d86001d-3a28-4ee4-8d0a-7c500968c9cc |
| SCIP dossier product name | RA-DV Dynamic radiator valve |
| Tailpiece type | Standard |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve size | DN 10 |
| Valve type | Dynamic (pressure independent) |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 013G7718 013G7718 EN_013G7714.pdf | 6 Mbytes |
|
