DANFOSS HEATING013G6815 DANFOSS HEATING RA-IN 15 S, external thread

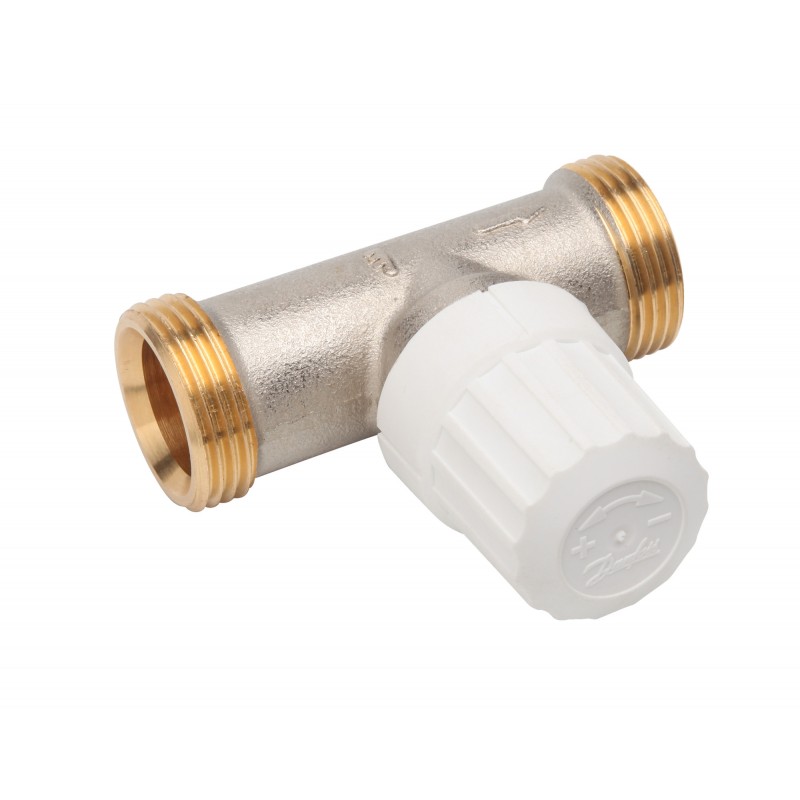

DANFOSS HEATING 013G6815 013G6815 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

013G6815 DANFOSS HEATING RA-IN 15 S, external thread

Reference: 013G6815

Manufacturer: DANFOSS HEATING

Description:

RA-IN 15 S, external thread
RA-IN 15 S, ext. thread
Radiator Valves, RA-IN, Normal flow, DN 15, Straight, Other permitted

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 13,31 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

4-step presetting thermostatic valve, external thread, no tailpiece

Product details

Gross weight0.205 Kilogram
Net weight0.195 Kilogram
Volume0.23 Liter
EAN5702425157479
TypeRA-IN
Product groupRadiator Valves
Gross weight0.205 Kilogram
Net weight0.195 Kilogram
Volume0.23 Liter
EAN5702425157479
TypeRA-IN
Product groupRadiator Valves

Application2-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection size inG 3/4
Connection size outG 3/4
Connection typesExternal Thread
Contains batteriesNo
Description4-step presetting thermostatic valve, external thread, no tailpiece
DesignStraight
Differential pressure range [bar] [Max]0.6 bar
Dimension standardOther permitted
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishNickel plated
Flow temperature [°C] [Max]120 °C
Kv value at setting 1 [m³/h]0.058 m³/h
Kv value at setting 2 [m³/h]0.12 m³/h
Kv value at setting 3 [m³/h]0.26 m³/h
Kv value at setting 4 [m³/h]0.43 m³/h
Kv value at setting N [m³/h]0.73 m³/h
Kvs values [m³/h]0.9 m³/h
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.ec70e424-c29e-4aa7-a0e4-00dd89774cca
SCIP dossier product nameRA-N & -IN Radiator valve 4
Tailpiece typeWithout tailpiece
Test pressure [bar]10 bar
UL evaluatedOut of scope
Valve sizeDN 15
Valve typeNormal flow
Working pressure [bar] [Max]10 bar
Application2-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection size inG 3/4
Connection size outG 3/4
Connection typesExternal Thread
Contains batteriesNo
Description4-step presetting thermostatic valve, external thread, no tailpiece
DesignStraight
Differential pressure range [bar] [Max]0.6 bar
Dimension standardOther permitted
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishNickel plated
Flow temperature [°C] [Max]120 °C
Kv value at setting 1 [m³/h]0.058 m³/h
Kv value at setting 2 [m³/h]0.12 m³/h
Kv value at setting 3 [m³/h]0.26 m³/h
Kv value at setting 4 [m³/h]0.43 m³/h
Kv value at setting N [m³/h]0.73 m³/h
Kvs values [m³/h]0.9 m³/h
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.ec70e424-c29e-4aa7-a0e4-00dd89774cca
SCIP dossier product nameRA-N & -IN Radiator valve 4
Tailpiece typeWithout tailpiece
Test pressure [bar]10 bar
UL evaluatedOut of scope
Valve sizeDN 15
Valve typeNormal flow
Working pressure [bar] [Max]10 bar
