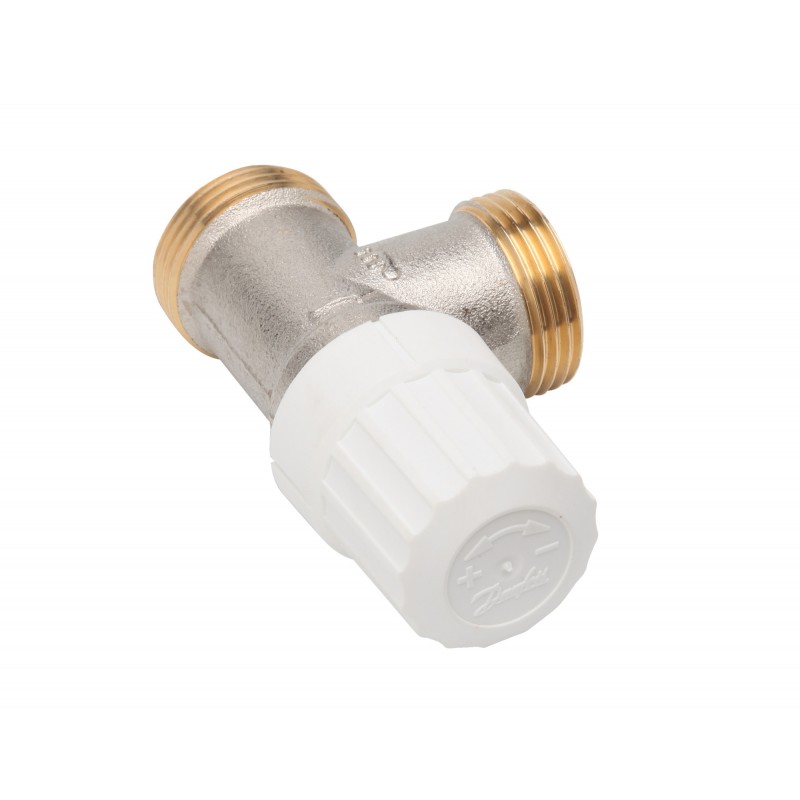

013G6814 DANFOSS HEATING RA-IN 15 A, external thread
013G6814
DANFOSS HEATING
RA-IN 15 A, external thread
RA-IN 15 A, ext. thread
Radiator Valves, RA-IN, Normal flow, DN 15, Angle, Other permitted
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲4-step presetting thermostatic valve, external thread, no tailpiece
Product details
| Gross weight | 0.162 Kilogram |
| Net weight | 0.152 Kilogram |
| Volume | 0.23 Liter |
| EAN | 5702425240003 |
| Type | RA-IN |
| Product group | Radiator Valves |
| Gross weight | 0.162 Kilogram |
| Net weight | 0.152 Kilogram |
| Volume | 0.23 Liter |
| EAN | 5702425240003 |
| Type | RA-IN |
| Product group | Radiator Valves |
| Application | 2-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | G 3/4 |
| Connection size out | G 3/4 |
| Connection types | External Thread |
| Contains batteries | No |
| Description | 4-step presetting thermostatic valve, external thread, no tailpiece |
| Design | Angle |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Dimension standard | Other permitted |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 120 °C |
| Kv value at setting 1 [m³/h] | 0.058 m³/h |
| Kv value at setting 2 [m³/h] | 0.12 m³/h |
| Kv value at setting 3 [m³/h] | 0.26 m³/h |
| Kv value at setting 4 [m³/h] | 0.43 m³/h |
| Kv value at setting N [m³/h] | 0.73 m³/h |
| Kvs values [m³/h] | 0.9 m³/h |
| Presetting | yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ec70e424-c29e-4aa7-a0e4-00dd89774cca |
| SCIP dossier product name | RA-N & -IN Radiator valve 4 |
| Tailpiece type | Without tailpiece |
| Test pressure [bar] | 10 bar |
| UL evaluated | Out of scope |
| Valve size | DN 15 |
| Valve type | Normal flow |
| Working pressure [bar] [Max] | 10 bar |
| Application | 2-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | G 3/4 |
| Connection size out | G 3/4 |
| Connection types | External Thread |
| Contains batteries | No |
| Description | 4-step presetting thermostatic valve, external thread, no tailpiece |
| Design | Angle |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Dimension standard | Other permitted |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 120 °C |
| Kv value at setting 1 [m³/h] | 0.058 m³/h |
| Kv value at setting 2 [m³/h] | 0.12 m³/h |
| Kv value at setting 3 [m³/h] | 0.26 m³/h |
| Kv value at setting 4 [m³/h] | 0.43 m³/h |
| Kv value at setting N [m³/h] | 0.73 m³/h |
| Kvs values [m³/h] | 0.9 m³/h |
| Presetting | yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ec70e424-c29e-4aa7-a0e4-00dd89774cca |
| SCIP dossier product name | RA-N & -IN Radiator valve 4 |
| Tailpiece type | Without tailpiece |
| Test pressure [bar] | 10 bar |
| UL evaluated | Out of scope |
| Valve size | DN 15 |
| Valve type | Normal flow |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 013G6814 013G6814 EN_013G6814.pdf | 662 Kbytes |
|
