DANFOSS HEATING013G6805 DANFOSS HEATING RA-N 15 straight ext. thread

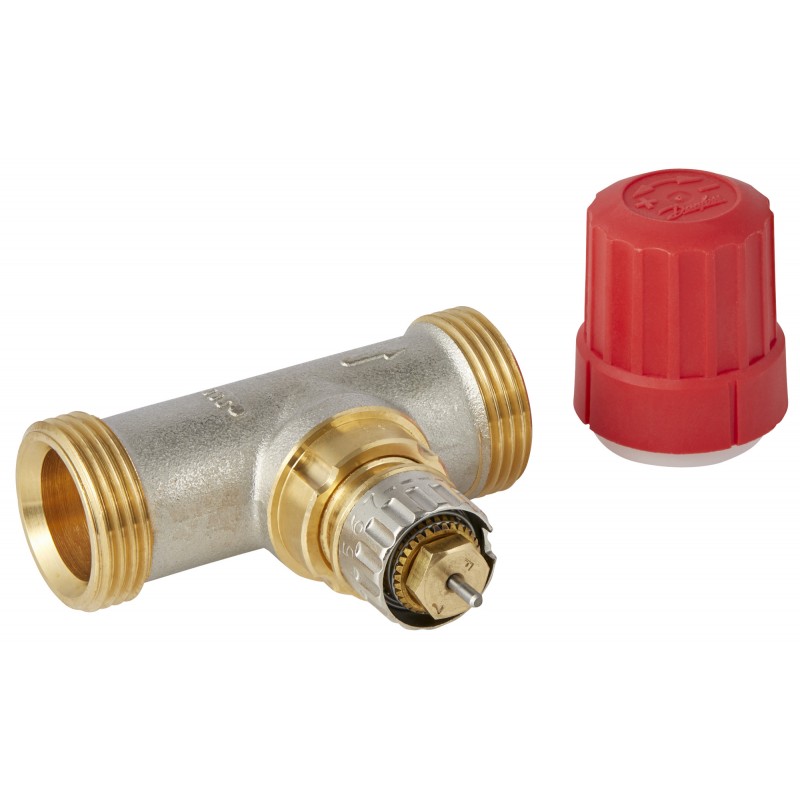

DANFOSS HEATING 013G6805 013G6805 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

013G6805 DANFOSS HEATING RA-N 15 straight ext. thread

Reference: 013G6805

Manufacturer: DANFOSS HEATING

Description:

RA-N 15 straight ext. thread
Radiator Valves, RA-N, Normal flow, DN 15, Straight

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Normal flow valves with presetting

Product details

Gross weight0.207 Kilogram
Net weight0.195 Kilogram
Volume0.259 Liter
EAN5702425149603
TypeRA-N
Product groupRadiator Valves
Gross weight0.207 Kilogram
Net weight0.195 Kilogram
Volume0.259 Liter
EAN5702425149603
TypeRA-N
Product groupRadiator Valves

Application2-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection size inG 3/4
Connection size outG 3/4
Connection typesExternal Thread
Contains batteriesNo
DescriptionNormal flow valves with presetting
DesignStraight
Differential pressure range [bar] [Max]0.6 bar
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishNickel plated
Flow temperature [°C] [Max]120 °C
Kv value at setting 1 [m³/h]0.04 m³/h
Kv value at setting 2 [m³/h]0.09 m³/h
Kv value at setting 3 [m³/h]0.16 m³/h
Kv value at setting 4 [m³/h]0.25 m³/h
Kv value at setting 5 [m³/h]0.36 m³/h
Kv value at setting 6 [m³/h]0.43 m³/h
Kv value at setting 7 [m³/h]0.52 m³/h
Kv value at setting N [m³/h]0.73 m³/h
Kvs values [m³/h]0.9 m³/h
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.ec70e424-c29e-4aa7-a0e4-00dd89774cca
SCIP dossier product nameRA-N & -IN Radiator valve 4
Tailpiece typeWithout tailpiece
Test pressure [bar]16 bar
UL evaluatedOut of scope
Valve sizeDN 15
Valve typeNormal flow
Working pressure [bar] [Max]10 bar
Application2-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection size inG 3/4
Connection size outG 3/4
Connection typesExternal Thread
Contains batteriesNo
DescriptionNormal flow valves with presetting
DesignStraight
Differential pressure range [bar] [Max]0.6 bar
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishNickel plated
Flow temperature [°C] [Max]120 °C
Kv value at setting 1 [m³/h]0.04 m³/h
Kv value at setting 2 [m³/h]0.09 m³/h
Kv value at setting 3 [m³/h]0.16 m³/h
Kv value at setting 4 [m³/h]0.25 m³/h
Kv value at setting 5 [m³/h]0.36 m³/h
Kv value at setting 6 [m³/h]0.43 m³/h
Kv value at setting 7 [m³/h]0.52 m³/h
Kv value at setting N [m³/h]0.73 m³/h
Kvs values [m³/h]0.9 m³/h
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.ec70e424-c29e-4aa7-a0e4-00dd89774cca
SCIP dossier product nameRA-N & -IN Radiator valve 4
Tailpiece typeWithout tailpiece
Test pressure [bar]16 bar
UL evaluatedOut of scope
Valve sizeDN 15
Valve typeNormal flow
Working pressure [bar] [Max]10 bar

DATASHEET - PDF

Title
Size
Type
013G6805 013G6805 EN_013G0037.pdf
600 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
