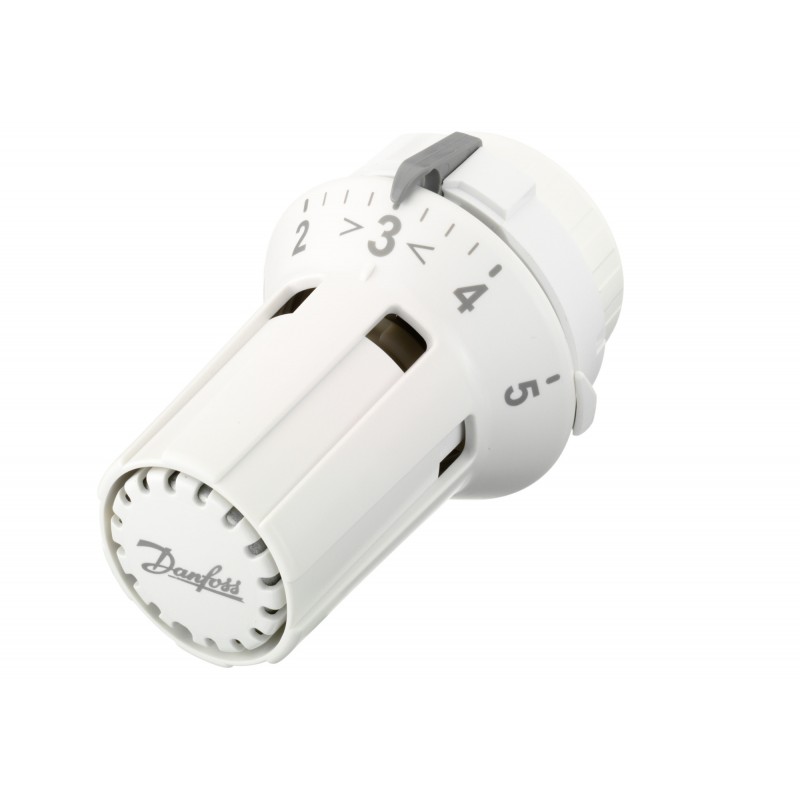

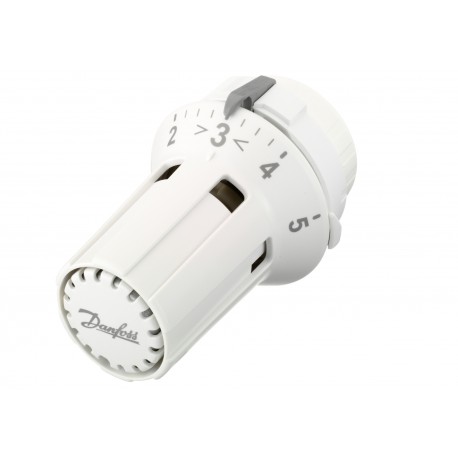

013G5010 DANFOSS HEATING RAW 5010, IF
013G5010
DANFOSS HEATING
RAW 5010, IF
RAW Sensors, RAW 5010, Liquid, Sensor type: Built-in sensor, 8 °C - 28 °C, RA
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲White socket; temperature limitation feature
Product details
| Gross weight | 0.15 Kilogram |
| Net weight | 0.131 Kilogram |
| Volume | 0.354 Liter |
| EAN | 5702420018409 |
| Type | RAW Sensors |
| Product group | Radiator Sensors |
| Gross weight | 0.15 Kilogram |
| Net weight | 0.131 Kilogram |
| Volume | 0.354 Liter |
| EAN | 5702420018409 |
| Type | RAW Sensors |
| Product group | Radiator Sensors |
| Capillary tube length [m] [Max] | 0 m |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Colour | White RAL 9016 |
| Connection type to sensor | RA-click |
| Connection type to valve | RA |
| Contains batteries | No |
| Contents of set | Sensor |
| Description | White socket; temperature limitation feature |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frost protection | Yes |
| REACH Candidate List substances | No |
| Sensor design | RAW |
| Sensor media | Liquid |
| Sensor setting temperature [°C] [Max] | 28 °C |
| Sensor setting temperature [°C] [Min] | 8 °C |
| Sensor type | Built-in sensor |
| Sensor version | RAW 5010 |
| Shut-off function | No |
| Temperature limitation | Yes |
| UL evaluated | Out of scope |
| UNSPSC CODE | 40101801 |
| Capillary tube length [m] [Max] | 0 m |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Colour | White RAL 9016 |
| Connection type to sensor | RA-click |
| Connection type to valve | RA |
| Contains batteries | No |
| Contents of set | Sensor |
| Description | White socket; temperature limitation feature |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frost protection | Yes |
| REACH Candidate List substances | No |
| Sensor design | RAW |
| Sensor media | Liquid |
| Sensor setting temperature [°C] [Max] | 28 °C |
| Sensor setting temperature [°C] [Min] | 8 °C |
| Sensor type | Built-in sensor |
| Sensor version | RAW 5010 |
| Shut-off function | No |
| Temperature limitation | Yes |
| UL evaluated | Out of scope |
| UNSPSC CODE | 40101801 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 013G5010 013G5010 ES_013G5014.pdf | 500 Kbytes |
|
