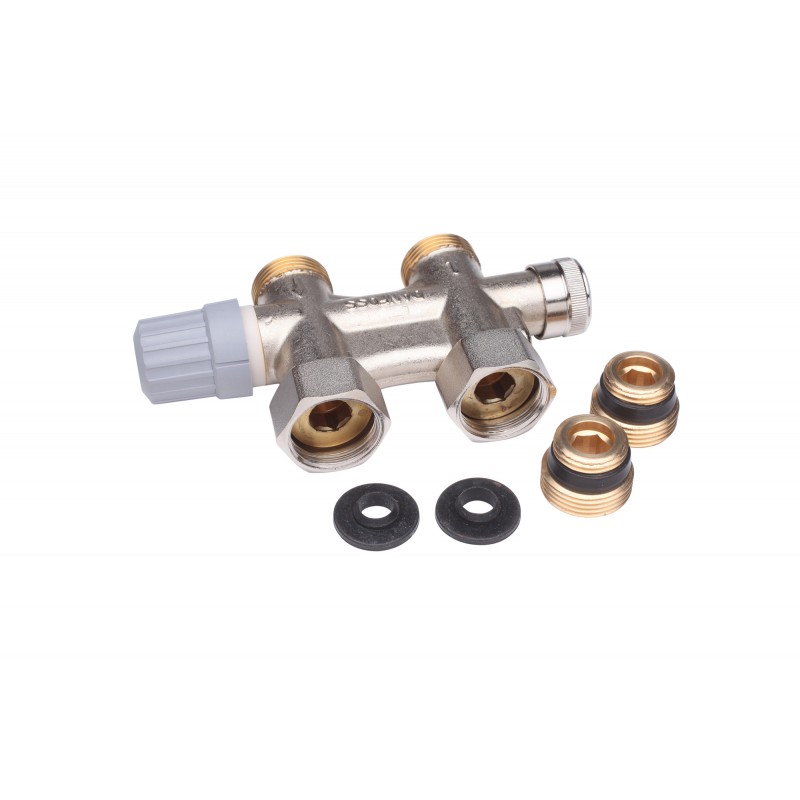

013G4692 DANFOSS HEATING VHS-E 15 one-pipe straight
013G4692
DANFOSS HEATING
VHS-E 15 one-pipe straight
VHS-E, 15, Straight
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VHS-E 3/4" x 1/2" straight, nickel-plated with drain-off
Product details
| Gross weight | 0.75 Kilogram |
| Net weight | 0.75 Kilogram |
| Volume | 0.854 Liter |
| EAN | 5702420046716 |
| Type | VHS-E |
| Product group | VHS valves |
| Gross weight | 0.75 Kilogram |
| Net weight | 0.75 Kilogram |
| Volume | 0.854 Liter |
| EAN | 5702420046716 |
| Type | VHS-E |
| Product group | VHS valves |
| Application | 1-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | G 3/4 A |
| Connection size out | G 1/2 A |
| Contains batteries | No |
| Description | VHS-E 3/4" x 1/2" straight, nickel-plated with drain-off |
| Design | Straight |
| Differential pressure range [bar] [Max] | 0.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow temperature [°C] [Max] | 120 °C |
| Kvs values [m³/h] | 1.2 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Recomended differential pressure [bar] [Max] | 0.2 bar |
| Recomended differential pressure [bar] [Min] | 0.05 bar |
| SCIP dossier no. | 1c6c9887-9101-48a2-b8fc-d494f92365dd |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve size | 15 |
| Valve type | Fixed capacity |
| Working pressure [bar] [Max] | 10 bar |
| Application | 1-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | G 3/4 A |
| Connection size out | G 1/2 A |
| Contains batteries | No |
| Description | VHS-E 3/4" x 1/2" straight, nickel-plated with drain-off |
| Design | Straight |
| Differential pressure range [bar] [Max] | 0.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow temperature [°C] [Max] | 120 °C |
| Kvs values [m³/h] | 1.2 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Recomended differential pressure [bar] [Max] | 0.2 bar |
| Recomended differential pressure [bar] [Min] | 0.05 bar |
| SCIP dossier no. | 1c6c9887-9101-48a2-b8fc-d494f92365dd |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve size | 15 |
| Valve type | Fixed capacity |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 013G4692 013G4692 ES_013G4691.pdf | 1 Mbytes |
|
