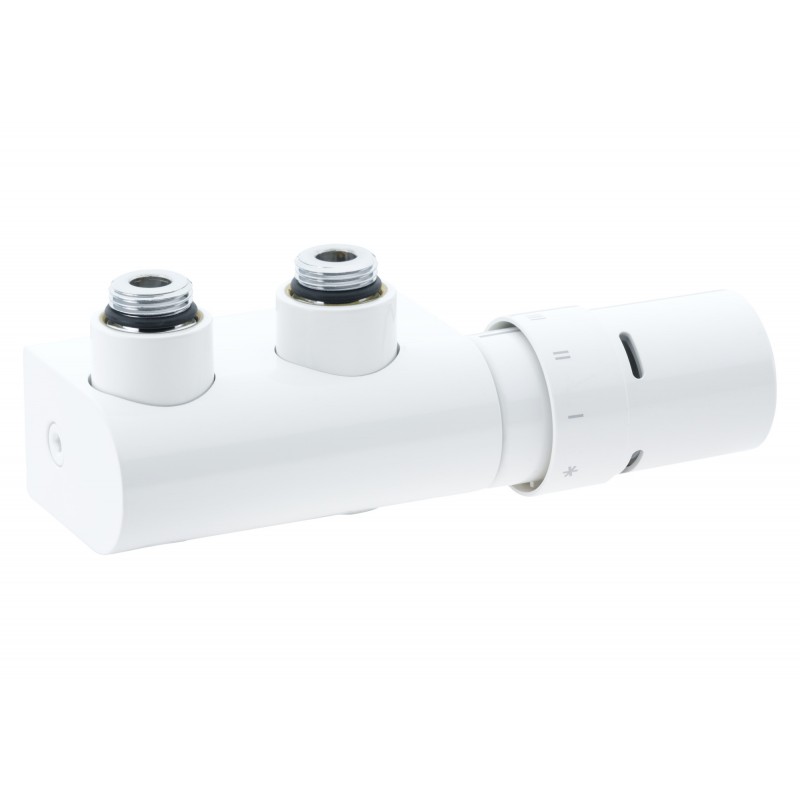

013G4281 DANFOSS HEATING VHX/RAX angle 2-pipe RAL9016
013G4281
DANFOSS HEATING
VHX/RAX angle 2-pipe RAL9016
VHX/RAX sets (X-tra Collection), VHX-DUO, RAX, Angle, dual 50 mm connection, White RAL 9016
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VHX/RAX angle 2-pipe RAL 9016, set includes RAX sensor
Product details
| Gross weight | 2.216 Kilogram |
| Net weight | 2.044 Kilogram |
| Volume | 2.953 Liter |
| EAN | 5702420073224 |
| Type | VHX/RAX sets (X-tra Collection) |
| Product group | Products for design radiators |
| Gross weight | 2.216 Kilogram |
| Net weight | 2.044 Kilogram |
| Volume | 2.953 Liter |
| EAN | 5702420073224 |
| Type | VHX/RAX sets (X-tra Collection) |
| Product group | Products for design radiators |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Colour | White RAL 9016 |
| Connection size in | G 1/2 |
| Connection size out | G 1/2 A |
| Contains batteries | No |
| Contents of set | Valve, sensor |
| Description | VHX/RAX angle 2-pipe RAL 9016, set includes RAX sensor |
| Design | Angle, dual 50 mm connection |
| Differential pressure range [bar] [Max] | 0.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow temperature [°C] [Max] | 120 °C |
| Kv value at Xp = 1 K [m³/h] | 0.12 m³/h |
| Kv value at Xp = 2 K [m³/h] | 0.49 m³/h |
| Kvs values [m³/h] [Max] | 0.56 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| RLV type | Integrated |
| SCIP dossier no. | 225627d5-f9d1-4b4d-ae72-4a07ee57569d |
| SCIP dossier product name | VHX/RAX pipe |
| Sensor design | RAX |
| Sensor type | Thermostatic sensor |
| UL evaluated | Out of scope |
| Valve type | VHX-DUO |
| Working pressure [bar] [Max] | 10 bar |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Colour | White RAL 9016 |
| Connection size in | G 1/2 |
| Connection size out | G 1/2 A |
| Contains batteries | No |
| Contents of set | Valve, sensor |
| Description | VHX/RAX angle 2-pipe RAL 9016, set includes RAX sensor |
| Design | Angle, dual 50 mm connection |
| Differential pressure range [bar] [Max] | 0.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow temperature [°C] [Max] | 120 °C |
| Kv value at Xp = 1 K [m³/h] | 0.12 m³/h |
| Kv value at Xp = 2 K [m³/h] | 0.49 m³/h |
| Kvs values [m³/h] [Max] | 0.56 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| RLV type | Integrated |
| SCIP dossier no. | 225627d5-f9d1-4b4d-ae72-4a07ee57569d |
| SCIP dossier product name | VHX/RAX pipe |
| Sensor design | RAX |
| Sensor type | Thermostatic sensor |
| UL evaluated | Out of scope |
| Valve type | VHX-DUO |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 013G4281 013G4281 ES_013G4281.pdf | 973 Kbytes |
|
