DANFOSS HEATING013G4279 DANFOSS HEATING VHX/RAX angle 2-pipe Cr.plated
DANFOSS HEATING 013G4279 013G4279 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

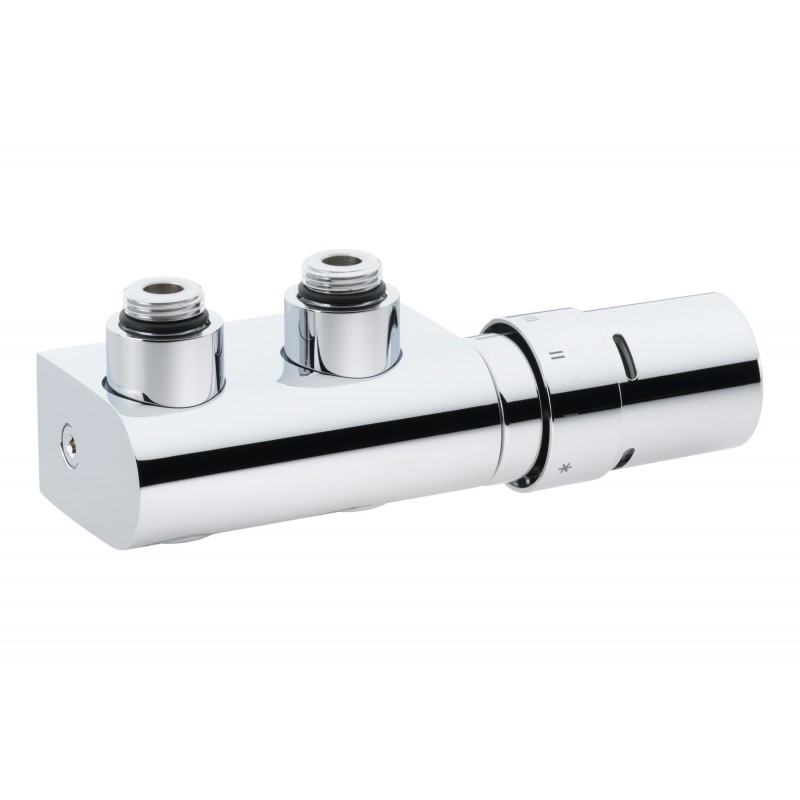

013G4279 DANFOSS HEATING VHX/RAX angle 2-pipe Cr.plated

Reference: 013G4279

Manufacturer: DANFOSS HEATING

Description:

VHX/RAX angle 2-pipe Cr.plated
VHX/RAX sets (X-tra Collection), VHX-DUO, RAX, Angle, dual 50 mm connection, Chrome

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

VHX/RAX angle 2-pipe chrome plated, set includes RAX sensor

Product details

Gross weight2.242 Kilogram
Net weight2.068 Kilogram
Volume2.953 Liter
EAN5702420073200
TypeVHX/RAX sets (X-tra Collection)
Product groupProducts for design radiators
Gross weight2.242 Kilogram
Net weight2.068 Kilogram
Volume2.953 Liter
EAN5702420073200
TypeVHX/RAX sets (X-tra Collection)
Product groupProducts for design radiators

CE evaluatedOut of scope
China RoHS complianceOut of scope
ColourChrome
Connection size inG 1/2
Connection size outG 1/2 A
Contains batteriesNo
Contents of setValve, sensor
DescriptionVHX/RAX angle 2-pipe chrome plated, set includes RAX sensor
DesignAngle, dual 50 mm connection
Differential pressure range [bar] [Max]0.6 bar
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow temperature [°C] [Max]120 °C
Kv value at Xp = 1 K [m³/h]0.12 m³/h
Kv value at Xp = 2 K [m³/h]0.49 m³/h
Kvs values [m³/h] [Max]0.56 m³/h
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RLV typeIntegrated
SCIP dossier no.225627d5-f9d1-4b4d-ae72-4a07ee57569d
SCIP dossier product nameVHX/RAX pipe
Sensor designRAX
Sensor typeThermostatic sensor
UL evaluatedOut of scope
Valve typeVHX-DUO
Working pressure [bar] [Max]10 bar
CE evaluatedOut of scope
China RoHS complianceOut of scope
ColourChrome
Connection size inG 1/2
Connection size outG 1/2 A
Contains batteriesNo
Contents of setValve, sensor
DescriptionVHX/RAX angle 2-pipe chrome plated, set includes RAX sensor
DesignAngle, dual 50 mm connection
Differential pressure range [bar] [Max]0.6 bar
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow temperature [°C] [Max]120 °C
Kv value at Xp = 1 K [m³/h]0.12 m³/h
Kv value at Xp = 2 K [m³/h]0.49 m³/h
Kvs values [m³/h] [Max]0.56 m³/h
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RLV typeIntegrated
SCIP dossier no.225627d5-f9d1-4b4d-ae72-4a07ee57569d
SCIP dossier product nameVHX/RAX pipe
Sensor designRAX
Sensor typeThermostatic sensor
UL evaluatedOut of scope
Valve typeVHX-DUO
Working pressure [bar] [Max]10 bar

DATASHEET - PDF

Title
Size
Type
013G4279 013G4279 ES_013G4281.pdf
973 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
