DANFOSS HEATING013G4240 DANFOSS HEATING RA-NCX 15, left mounted
DANFOSS HEATING 013G4240 013G4240 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

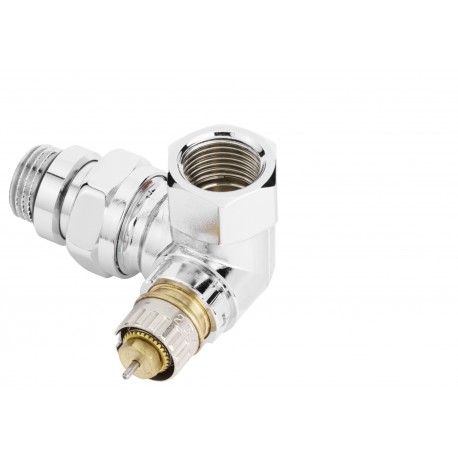

013G4240 DANFOSS HEATING RA-NCX 15, left mounted

Reference: 013G4240

Manufacturer: DANFOSS HEATING

Description:

RA-NCX 15, left mounted
RA-NCX 15 Left mounted
RA-NCX, Normal flow, DN 15, Double angle left, Other permitted, Chrome

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 42,58 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Radiator valve with integrated pre-setting

Product details

Gross weight0.315 Kilogram
Net weight0.302 Kilogram
Volume0.329 Liter
EAN5702420072173
TypeRA-NCX
Product groupProducts for design radiators
Gross weight0.315 Kilogram
Net weight0.302 Kilogram
Volume0.329 Liter
EAN5702420072173
TypeRA-NCX
Product groupProducts for design radiators

Application2-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
ColourChrome
Connection size inRp 1/2
Connection size outR 1/2
Connection typesInternal thread
Contains batteriesNo
DescriptionRadiator valve with integrated pre-setting
DesignDouble angle left
Differential pressure range [bar] [Max]0.6 bar
Dimension standardOther permitted
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishChrome plated
Flow temperature [°C] [Max]120 °C
Kv value at setting 1 [m³/h]0.04 m³/h
Kv value at setting 2 [m³/h]0.09 m³/h
Kv value at setting 3 [m³/h]0.16 m³/h
Kv value at setting 4 [m³/h]0.25 m³/h
Kv value at setting 5 [m³/h]0.36 m³/h
Kv value at setting 6 [m³/h]0.43 m³/h
Kv value at setting 7 [m³/h]0.52 m³/h
Kv value at setting N [m³/h]0.73 m³/h
Kvs values [m³/h]0.9 m³/h
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.d382b2f4-764a-46fe-84e8-d09cf0f0c07c
SCIP dossier product nameRA-N & -IN Radiator valve w. sealing 1
Tailpiece typeStandard
Test pressure [bar]16 bar
UL evaluatedOut of scope
Valve sizeDN 15
Valve typeNormal flow
Working pressure [bar] [Max]10 bar
Application2-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
ColourChrome
Connection size inRp 1/2
Connection size outR 1/2
Connection typesInternal thread
Contains batteriesNo
DescriptionRadiator valve with integrated pre-setting
DesignDouble angle left
Differential pressure range [bar] [Max]0.6 bar
Dimension standardOther permitted
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishChrome plated
Flow temperature [°C] [Max]120 °C
Kv value at setting 1 [m³/h]0.04 m³/h
Kv value at setting 2 [m³/h]0.09 m³/h
Kv value at setting 3 [m³/h]0.16 m³/h
Kv value at setting 4 [m³/h]0.25 m³/h
Kv value at setting 5 [m³/h]0.36 m³/h
Kv value at setting 6 [m³/h]0.43 m³/h
Kv value at setting 7 [m³/h]0.52 m³/h
Kv value at setting N [m³/h]0.73 m³/h
Kvs values [m³/h]0.9 m³/h
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.d382b2f4-764a-46fe-84e8-d09cf0f0c07c
SCIP dossier product nameRA-N & -IN Radiator valve w. sealing 1
Tailpiece typeStandard
Test pressure [bar]16 bar
UL evaluatedOut of scope
Valve sizeDN 15
Valve typeNormal flow
Working pressure [bar] [Max]10 bar

DATASHEET - PDF

Title
Size
Type
013G4240 013G4240 ES_003L0273.pdf
693 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
