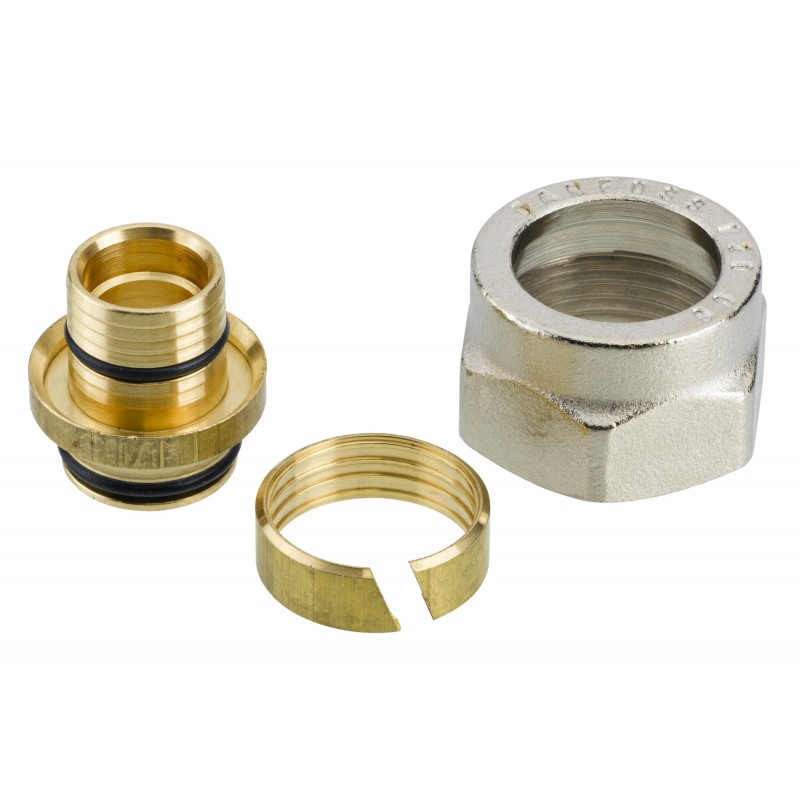

013G4160 DANFOSS HEATING Fitting for 20x2mm PEX tubes, G 3/4"
Reference: 013G4160
Manufacturer: DANFOSS HEATING
Description:
Fitting for 20x2mm PEX tubes, G 3/4"
FH Pipes, Fittings, Compression fitting, Connection size: 3/4", Connection diameter side 1 [mm]: 20, Connection diameter side 2 [mm]: 0
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
PEX fittings for pipe 20 x 2 mm
Product details
| Gross weight | 0.07 Kilogram |
| Net weight | 0.07 Kilogram |
| Volume | 0.073 Liter |
| EAN | 5702420032986 |
| Type | Fittings |
| Product group | FH Pipes |
| Gross weight | 0.07 Kilogram |
| Net weight | 0.07 Kilogram |
| Volume | 0.073 Liter |
| EAN | 5702420032986 |
| Type | Fittings |
| Product group | FH Pipes |
| Connection diameter side 1 [mm] | 20 mm |
| Connection diameter side 2 [mm] | 0 mm |
| Connection diameter side 3 [mm] | 0 mm |
| Connection size | 3/4" |
| Connection types | Compression fitting |
| Connections | G 3/4" |
| Contains batteries | No |
| Description | PEX fittings for pipe 20 x 2 mm |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 95 °C |
| For tubings | PEX plastic |
| For valves | Couplings Manifold CFD RA 15/6T RA 15/6TB RA-C 15 RLV-K RLV-KDV RLV-KS |
| Label product | Yes |
| Material | Brass / Stainless Steel |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a76c5ed7-e33e-4d63-b06e-8751d1fc2312 |
| Test pressure [bar] | 10 bar |
| Thread | Internal |
| Tube dimension [mm] | 20x2 |
| UNSPSC CODE | 40141616 |
| Usage | for Pex tubes |
| Working pressure [bar] [Max] | 6 bar |
| Connection diameter side 1 [mm] | 20 mm |
| Connection diameter side 2 [mm] | 0 mm |
| Connection diameter side 3 [mm] | 0 mm |
| Connection size | 3/4" |
| Connection types | Compression fitting |
| Connections | G 3/4" |
| Contains batteries | No |
| Description | PEX fittings for pipe 20 x 2 mm |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 95 °C |
| For tubings | PEX plastic |
| For valves | Couplings Manifold CFD RA 15/6T RA 15/6TB RA-C 15 RLV-K RLV-KDV RLV-KS |
| Label product | Yes |
| Material | Brass / Stainless Steel |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a76c5ed7-e33e-4d63-b06e-8751d1fc2312 |
| Test pressure [bar] | 10 bar |
| Thread | Internal |
| Tube dimension [mm] | 20x2 |
| UNSPSC CODE | 40141616 |
| Usage | for Pex tubes |
| Working pressure [bar] [Max] | 6 bar |
