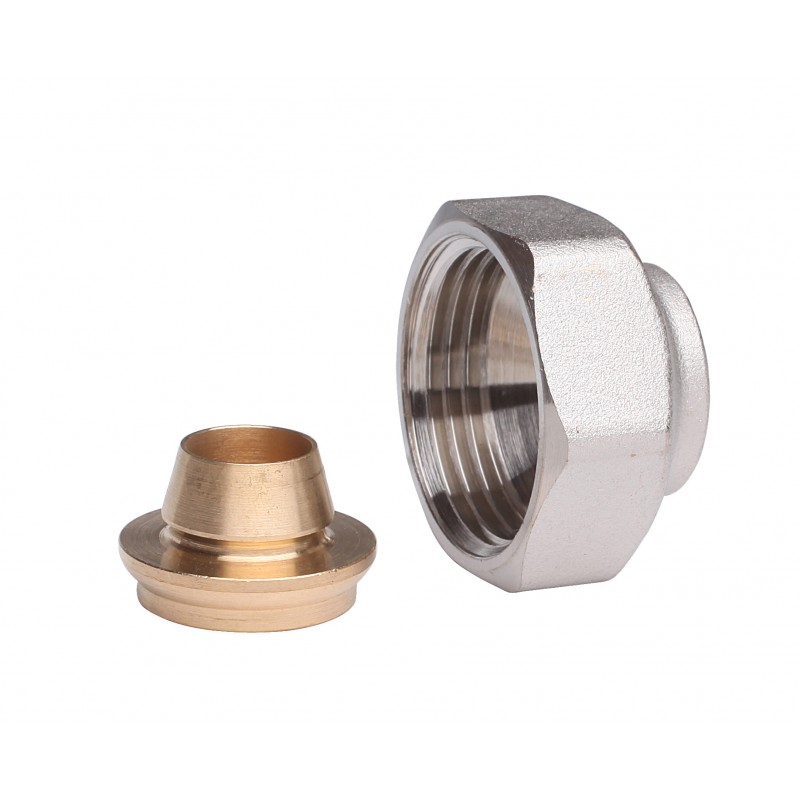

013G4120 DANFOSS HEATING Fitting for 10mm Cu/steel tubes, G3/4"
013G4120
DANFOSS HEATING
Fitting for 10mm Cu/steel tubes, G3/4"
Compression fittings for steel and copper tubings, G 3/4", 10, Nickel plated
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Cu/Steel fittings for pipe 10 mm
Product details
| Gross weight | 0.06 Kilogram |
| Net weight | 0.057 Kilogram |
| Volume | 0.05 Liter |
| EAN | 5702420033334 |
| Type | Compression fittings for steel and copper tubings |
| Product group | Compression fittings |
| Gross weight | 0.06 Kilogram |
| Net weight | 0.057 Kilogram |
| Volume | 0.05 Liter |
| EAN | 5702420033334 |
| Type | Compression fittings for steel and copper tubings |
| Product group | Compression fittings |
| CE evaluated | Out of scope |
| Connections | G 3/4" |
| Contains batteries | No |
| Description | Cu/Steel fittings for pipe 10 mm |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 120 °C |
| For tubings | Steel and Copper |
| For valves | Couplings Manifold CFD RA 15/6T RA 15/6TB RA-C 15 RLV-K RLV-KS RLV-KDV |
| Label product | Yes |
| Packing format | Industrial pack |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a76c5ed7-e33e-4d63-b06e-8751d1fc2312 |
| Test pressure [bar] | 16 bar |
| Thread | Internal |
| Tube dimension [mm] | 10 |
| UL evaluated | Out of scope |
| Usage | for steel & copper |
| Working pressure [bar] [Max] | 10 bar |
| CE evaluated | Out of scope |
| Connections | G 3/4" |
| Contains batteries | No |
| Description | Cu/Steel fittings for pipe 10 mm |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 120 °C |
| For tubings | Steel and Copper |
| For valves | Couplings Manifold CFD RA 15/6T RA 15/6TB RA-C 15 RLV-K RLV-KS RLV-KDV |
| Label product | Yes |
| Packing format | Industrial pack |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a76c5ed7-e33e-4d63-b06e-8751d1fc2312 |
| Test pressure [bar] | 16 bar |
| Thread | Internal |
| Tube dimension [mm] | 10 |
| UL evaluated | Out of scope |
| Usage | for steel & copper |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 013G4120 013G4120 EN_013G4163.pdf | 172 Kbytes |
|
