DANFOSS HEATING 013G4008 013G4008 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

013G4008 DANFOSS HEATING Left-set 9016 (RA-URX, RLV-X and RAX)

Reference: 013G4008

Manufacturer: DANFOSS HEATING

Description:

Left-set 9016 (RA-URX, RLV-X and RAX)
RAX Design sets, Left mounted sensor, RAX, White RAL 9016

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 212,93 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

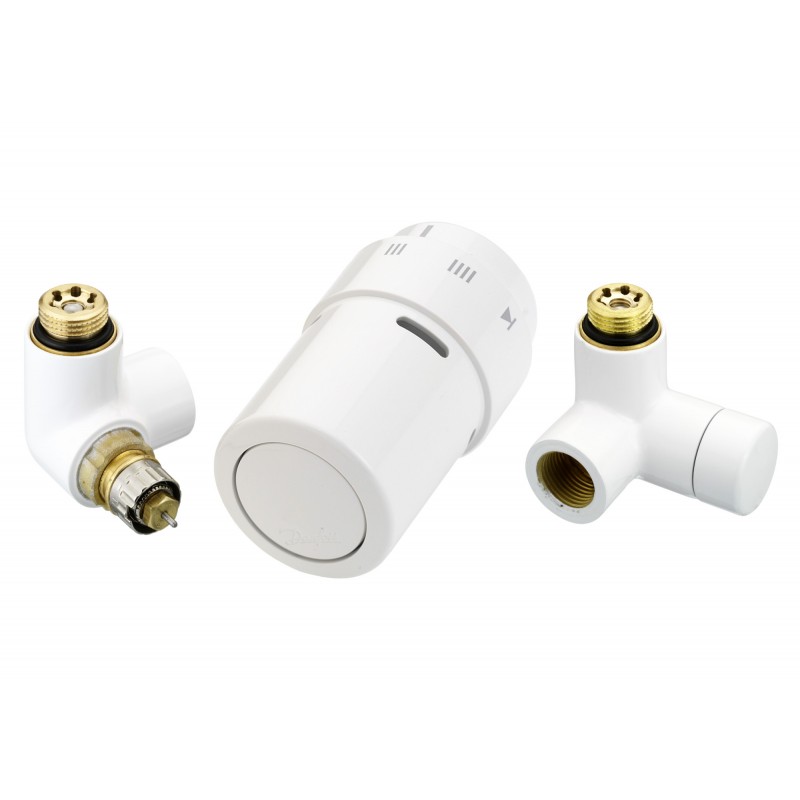

Left-set 9016, includes RAX sensor, valve and lockshield valve

Product details

Gross weight1.128 Kilogram
Net weight1.128 Kilogram
Volume1.759 Liter
EAN5702420059570
TypeRAX Design sets
Product groupProducts for design radiators
Gross weight1.128 Kilogram
Net weight1.128 Kilogram
Volume1.759 Liter
EAN5702420059570
TypeRAX Design sets
Product groupProducts for design radiators

CE evaluatedOut of scope
China RoHS complianceOut of scope
ColourWhite RAL 9016
Connection size inRp 1/2
Connection size outR 1/2
Contains batteriesNo
Contents of setValve, sensor, lockshield
DescriptionLeft-set 9016, includes RAX sensor, valve and lockshield valve
DesignLeft mounted sensor
Differential pressure range [bar] [Max]0.6 bar
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)
6(c)
Flow temperature [°C] [Max]120 °C
Kv value at Xp = 1 K [m³/h]0.03 m³/h
Kv value at Xp = 2 K [m³/h]0.34 m³/h
Kvs values [m³/h] [Max]0.44 m³/h
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RLV typeRLV-X
SCIP dossier no.c0678492-9b82-427a-8ba9-b942b9e7a5ad
SCIP dossier product nameRight/Left-set 9016 (RA-URX, RLV-X, RAX and RTX)
Sensor designRAX
Sensor typeThermostatic sensor
UL evaluatedOut of scope
Valve typeRA-URX, RLV-X
Working pressure [bar] [Max]10 bar
CE evaluatedOut of scope
China RoHS complianceOut of scope
ColourWhite RAL 9016
Connection size inRp 1/2
Connection size outR 1/2
Contains batteriesNo
Contents of setValve, sensor, lockshield
DescriptionLeft-set 9016, includes RAX sensor, valve and lockshield valve
DesignLeft mounted sensor
Differential pressure range [bar] [Max]0.6 bar
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)
6(c)
Flow temperature [°C] [Max]120 °C
Kv value at Xp = 1 K [m³/h]0.03 m³/h
Kv value at Xp = 2 K [m³/h]0.34 m³/h
Kvs values [m³/h] [Max]0.44 m³/h
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RLV typeRLV-X
SCIP dossier no.c0678492-9b82-427a-8ba9-b942b9e7a5ad
SCIP dossier product nameRight/Left-set 9016 (RA-URX, RLV-X, RAX and RTX)
Sensor designRAX
Sensor typeThermostatic sensor
UL evaluatedOut of scope
Valve typeRA-URX, RLV-X
Working pressure [bar] [Max]10 bar
