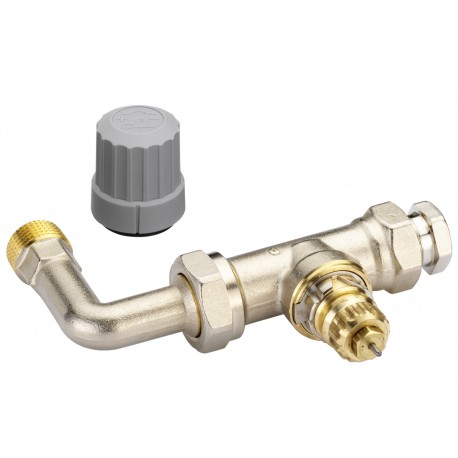

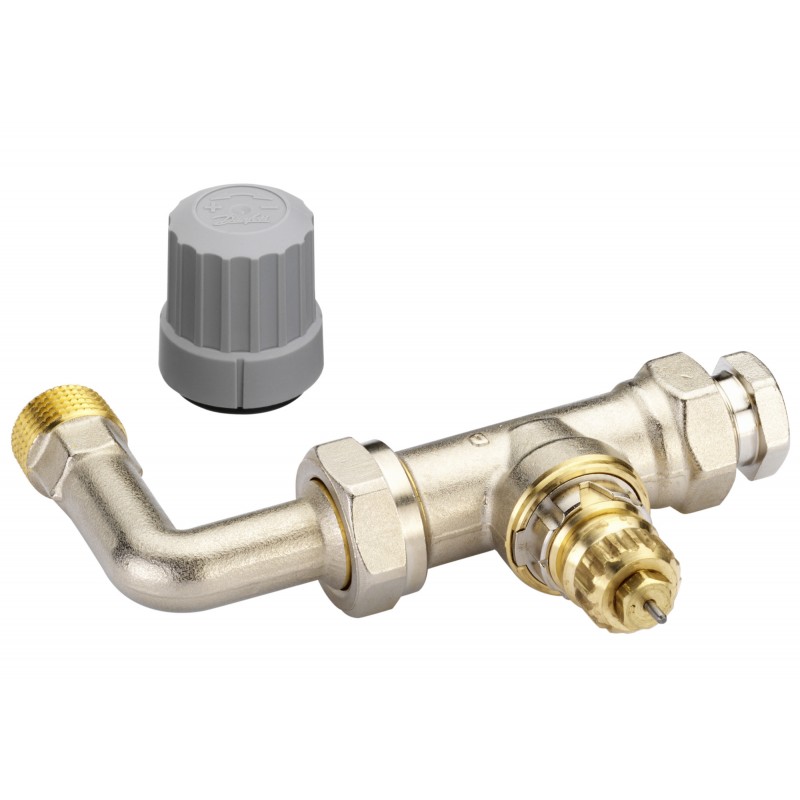

013G3362 DANFOSS HEATING VALVE w/ ELBOW
013G3362
DANFOSS HEATING
VALVE w/ ELBOW
Manifold Assemblies, RA-KE with elbow, no RLV, Straight
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲RA-KE Valve body
Product details
| Gross weight | 0.374 Kilogram |
| Net weight | 0.374 Kilogram |
| Volume | 0.343 Liter |
| EAN | 5702420031781 |
| Type | RA-KE/KEW |
| Product group | Manifold Assemblies |
| Gross weight | 0.374 Kilogram |
| Net weight | 0.374 Kilogram |
| Volume | 0.343 Liter |
| EAN | 5702420031781 |
| Type | RA-KE/KEW |
| Product group | Manifold Assemblies |
| Application | 1-pipe system |
| CE evaluated | Out of scope |
| Connection size in | G 1/2 |
| Connection size out | R 1/2 |
| Contains batteries | No |
| Contents of set | Valve |
| Description | RA-KE Valve body |
| Design | Straight |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Flow temperature [°C] [Max] | 120 °C |
| Kvs values [m³/h] [Max] | 2.5 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| RLV type | no RLV |
| SCIP dossier no. | 48bf382d-d382-4045-8bc9-894be749ddcd |
| SCIP dossier product name | VALVE W/ ELBOW |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve type | RA-KE with elbow |
| Working pressure [bar] [Max] | 10 bar |
| Application | 1-pipe system |
| CE evaluated | Out of scope |
| Connection size in | G 1/2 |
| Connection size out | R 1/2 |
| Contains batteries | No |
| Contents of set | Valve |
| Description | RA-KE Valve body |
| Design | Straight |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Flow temperature [°C] [Max] | 120 °C |
| Kvs values [m³/h] [Max] | 2.5 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| RLV type | no RLV |
| SCIP dossier no. | 48bf382d-d382-4045-8bc9-894be749ddcd |
| SCIP dossier product name | VALVE W/ ELBOW |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve type | RA-KE with elbow |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 013G3362 013G3362 EN_013G3362.pdf | 379 Kbytes |
|
