DANFOSS HEATING013G3299 DANFOSS HEATING RA-UR 10 A, reverse flow

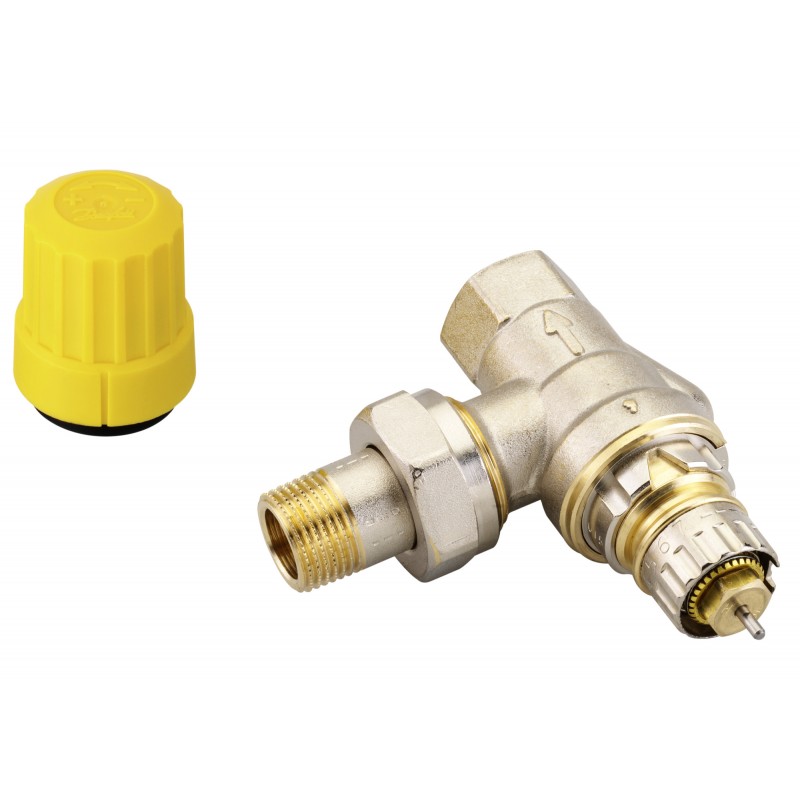

DANFOSS HEATING 013G3299 013G3299 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

013G3299 DANFOSS HEATING RA-UR 10 A, reverse flow

Reference: 013G3299

Manufacturer: DANFOSS HEATING

Description:

RA-UR 10 A, reverse flow
RA-UR 10 VALVE BODY
Radiator Valves, RA-UR, Low flow reverse, DN 10, Angle, D

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Reverse flow through the valve, can be installed on return

Product details

Gross weight0.264 Kilogram
Net weight0.254 Kilogram
Volume0.23 Liter
EAN5702420000244
TypeRA-UR
Product groupRadiator Valves
Gross weight0.264 Kilogram
Net weight0.254 Kilogram
Volume0.23 Liter
EAN5702420000244
TypeRA-UR
Product groupRadiator Valves

Application2-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection size inRp 3/8
Connection size outR 3/8
Connection typesInternal thread
Contains batteriesNo
DescriptionReverse flow through the valve, can be installed on return
DesignAngle
Differential pressure range [bar] [Max]0.6 bar
Dimension standardD
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishNickel plated
Flow temperature [°C] [Max]120 °C
Kv value at setting 1 [m³/h]0.02 m³/h
Kv value at setting 2 [m³/h]0.03 m³/h
Kv value at setting 3 [m³/h]0.06 m³/h
Kv value at setting 4 [m³/h]0.08 m³/h
Kv value at setting 5 [m³/h]0.14 m³/h
Kv value at setting 6 [m³/h]0.2 m³/h
Kv value at setting 7 [m³/h]0.27 m³/h
Kv value at setting N [m³/h]0.47 m³/h
Kvs values [m³/h]0.53 m³/h
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.a20c9a73-05c1-4d11-8b64-ae928f053c4c
SCIP dossier product nameRA-UR 10 VALVE BODY
Tailpiece typeStandard
Test pressure [bar]16 bar
UL evaluatedOut of scope
Valve sizeDN 10
Valve typeLow flow reverse
Working pressure [bar] [Max]10 bar
Application2-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection size inRp 3/8
Connection size outR 3/8
Connection typesInternal thread
Contains batteriesNo
DescriptionReverse flow through the valve, can be installed on return
DesignAngle
Differential pressure range [bar] [Max]0.6 bar
Dimension standardD
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishNickel plated
Flow temperature [°C] [Max]120 °C
Kv value at setting 1 [m³/h]0.02 m³/h
Kv value at setting 2 [m³/h]0.03 m³/h
Kv value at setting 3 [m³/h]0.06 m³/h
Kv value at setting 4 [m³/h]0.08 m³/h
Kv value at setting 5 [m³/h]0.14 m³/h
Kv value at setting 6 [m³/h]0.2 m³/h
Kv value at setting 7 [m³/h]0.27 m³/h
Kv value at setting N [m³/h]0.47 m³/h
Kvs values [m³/h]0.53 m³/h
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.a20c9a73-05c1-4d11-8b64-ae928f053c4c
SCIP dossier product nameRA-UR 10 VALVE BODY
Tailpiece typeStandard
Test pressure [bar]16 bar
UL evaluatedOut of scope
Valve sizeDN 10
Valve typeLow flow reverse
Working pressure [bar] [Max]10 bar

DATASHEET - PDF

Title
Size
Type
013G3299 013G3299 ES_013G3298.pdf
679 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
