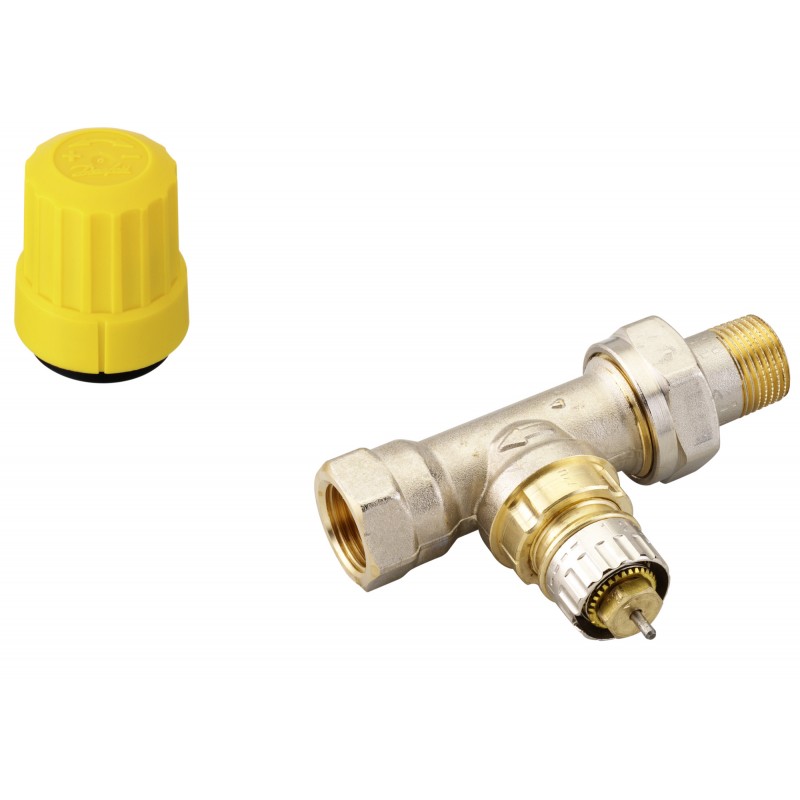

013G3298 DANFOSS HEATING RA-UR 10 S, reverse flow
013G3298
DANFOSS HEATING
RA-UR 10 S, reverse flow
RA-UR 10 VALVE BODY
Radiator Valves, RA-UR, Low flow reverse, DN 10, Straight, D
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Reverse flow through the valve, can be installed on return
Product details
| Gross weight | 0.22 Kilogram |
| Net weight | 0.21 Kilogram |
| Volume | 0.23 Liter |
| EAN | 5702420003955 |
| Type | RA-UR |
| Product group | Radiator Valves |
| Gross weight | 0.22 Kilogram |
| Net weight | 0.21 Kilogram |
| Volume | 0.23 Liter |
| EAN | 5702420003955 |
| Type | RA-UR |
| Product group | Radiator Valves |
| Application | 2-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | Rp 3/8 |
| Connection size out | R 3/8 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | Reverse flow through the valve, can be installed on return |
| Design | Straight |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Dimension standard | D |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 120 °C |
| Kv value at setting 1 [m³/h] | 0.02 m³/h |
| Kv value at setting 2 [m³/h] | 0.03 m³/h |
| Kv value at setting 3 [m³/h] | 0.06 m³/h |
| Kv value at setting 4 [m³/h] | 0.08 m³/h |
| Kv value at setting 5 [m³/h] | 0.14 m³/h |
| Kv value at setting 6 [m³/h] | 0.2 m³/h |
| Kv value at setting 7 [m³/h] | 0.27 m³/h |
| Kv value at setting N [m³/h] | 0.47 m³/h |
| Kvs values [m³/h] | 0.53 m³/h |
| Presetting | yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a20c9a73-05c1-4d11-8b64-ae928f053c4c |
| SCIP dossier product name | RA-UR 10 VALVE BODY |
| Tailpiece type | Standard |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve size | DN 10 |
| Valve type | Low flow reverse |
| Working pressure [bar] [Max] | 10 bar |
| Application | 2-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | Rp 3/8 |
| Connection size out | R 3/8 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | Reverse flow through the valve, can be installed on return |
| Design | Straight |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Dimension standard | D |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 120 °C |
| Kv value at setting 1 [m³/h] | 0.02 m³/h |
| Kv value at setting 2 [m³/h] | 0.03 m³/h |
| Kv value at setting 3 [m³/h] | 0.06 m³/h |
| Kv value at setting 4 [m³/h] | 0.08 m³/h |
| Kv value at setting 5 [m³/h] | 0.14 m³/h |
| Kv value at setting 6 [m³/h] | 0.2 m³/h |
| Kv value at setting 7 [m³/h] | 0.27 m³/h |
| Kv value at setting N [m³/h] | 0.47 m³/h |
| Kvs values [m³/h] | 0.53 m³/h |
| Presetting | yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a20c9a73-05c1-4d11-8b64-ae928f053c4c |
| SCIP dossier product name | RA-UR 10 VALVE BODY |
| Tailpiece type | Standard |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve size | DN 10 |
| Valve type | Low flow reverse |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 013G3298 013G3298 ES_013G3298.pdf | 679 Kbytes |
|
