DANFOSS HEATING013G3237 DANFOSS HEATING RA-N 15 A, press-fit, sealing

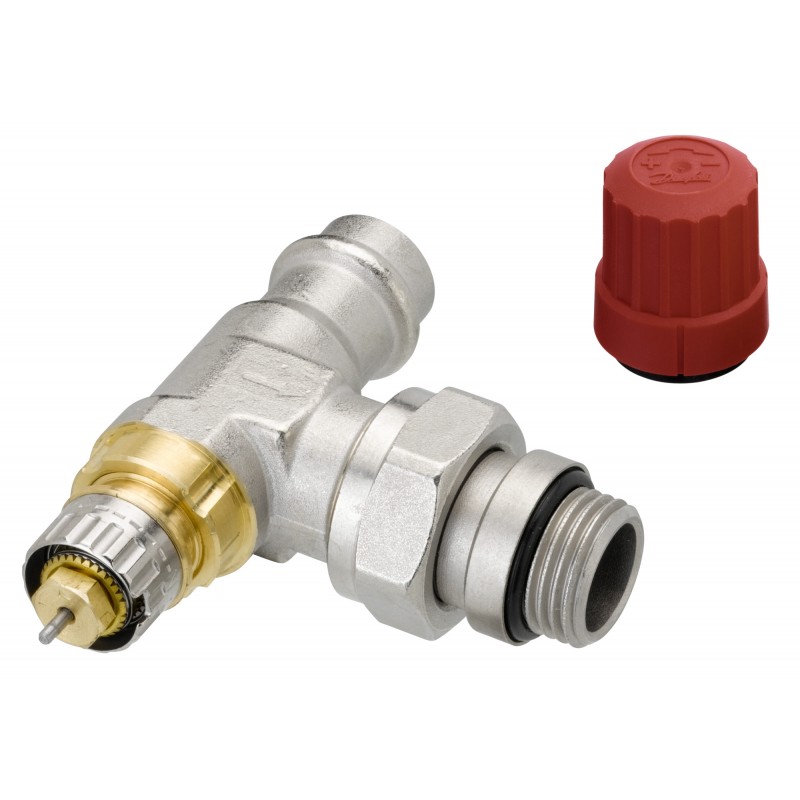

DANFOSS HEATING 013G3237 013G3237 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

013G3237 DANFOSS HEATING RA-N 15 A, press-fit, sealing

Reference: 013G3237

Manufacturer: DANFOSS HEATING

Description:

RA-N 15 A, press-fit, sealing
RA-N press-fit angle, sealing
Radiator Valves, RA-N, Normal flow, DN 15, Angle, D

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 30,66 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Normal flow valves with presetting

Product details

Gross weight0.285 Kilogram
Net weight0.272 Kilogram
Volume0.343 Liter
EAN5702420091709
TypeRA-N
Product groupRadiator Valves
Gross weight0.285 Kilogram
Net weight0.272 Kilogram
Volume0.343 Liter
EAN5702420091709
TypeRA-N
Product groupRadiator Valves

Application2-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection size in15 mm
Connection size outR 1/2
Connection typesPress-fit
Contains batteriesNo
DescriptionNormal flow valves with presetting
DesignAngle
Differential pressure range [bar] [Max]0.6 bar
Dimension standardD
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishNickel plated
Flow temperature [°C] [Max]120 °C
Kv value at setting 1 [m³/h]0.04 m³/h
Kv value at setting 2 [m³/h]0.09 m³/h
Kv value at setting 3 [m³/h]0.16 m³/h
Kv value at setting 4 [m³/h]0.25 m³/h
Kv value at setting 5 [m³/h]0.36 m³/h
Kv value at setting 6 [m³/h]0.43 m³/h
Kv value at setting 7 [m³/h]0.52 m³/h
Kv value at setting N [m³/h]0.73 m³/h
Kvs values [m³/h]0.9 m³/h
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.6b284ddd-9c03-4fa3-be5b-2ab4a062de89
SCIP dossier product nameRA-N & -IN Radiator valve w. sealing 2
Tailpiece typeSelf-sealing
Test pressure [bar]16 bar
UL evaluatedOut of scope
UNSPSC CODE40101801
Valve sizeDN 15
Valve typeNormal flow
Working pressure [bar] [Max]10 bar
Application2-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection size in15 mm
Connection size outR 1/2
Connection typesPress-fit
Contains batteriesNo
DescriptionNormal flow valves with presetting
DesignAngle
Differential pressure range [bar] [Max]0.6 bar
Dimension standardD
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishNickel plated
Flow temperature [°C] [Max]120 °C
Kv value at setting 1 [m³/h]0.04 m³/h
Kv value at setting 2 [m³/h]0.09 m³/h
Kv value at setting 3 [m³/h]0.16 m³/h
Kv value at setting 4 [m³/h]0.25 m³/h
Kv value at setting 5 [m³/h]0.36 m³/h
Kv value at setting 6 [m³/h]0.43 m³/h
Kv value at setting 7 [m³/h]0.52 m³/h
Kv value at setting N [m³/h]0.73 m³/h
Kvs values [m³/h]0.9 m³/h
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.6b284ddd-9c03-4fa3-be5b-2ab4a062de89
SCIP dossier product nameRA-N & -IN Radiator valve w. sealing 2
Tailpiece typeSelf-sealing
Test pressure [bar]16 bar
UL evaluatedOut of scope
UNSPSC CODE40101801
Valve sizeDN 15
Valve typeNormal flow
Working pressure [bar] [Max]10 bar

DATASHEET - PDF

Title
Size
Type
013G3237 013G3237 EN_013G0037.pdf
600 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
