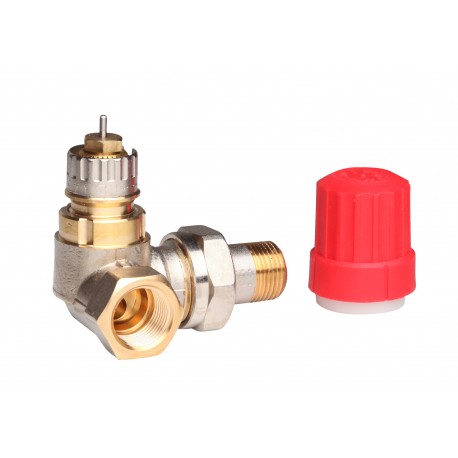

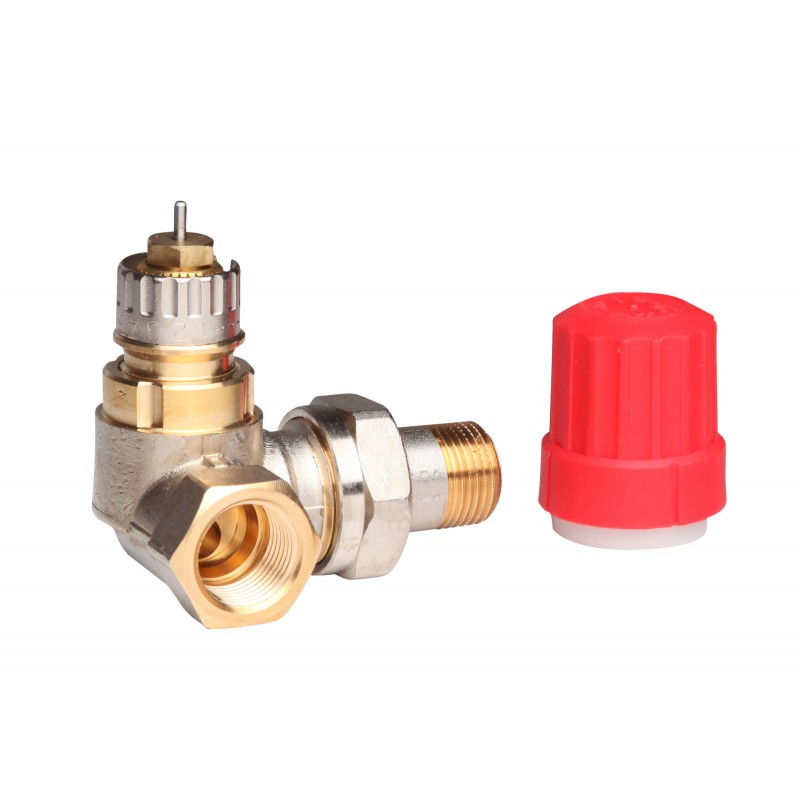

013G0232 DANFOSS HEATING RA-N 10, left mounted
013G0232
DANFOSS HEATING
RA-N 10, left mounted
VALVE BODY LEFT MOUNTED
Radiator Valves, RA-N, Normal flow, DN 10, Double angle left, Other permitted
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Normal flow valves with presetting
Product details
| Gross weight | 0.236 Kilogram |
| Net weight | 0.223 Kilogram |
| Volume | 0.329 Liter |
| EAN | 5702420010694 |
| Type | RA-N |
| Product group | Radiator Valves |
| Gross weight | 0.236 Kilogram |
| Net weight | 0.223 Kilogram |
| Volume | 0.329 Liter |
| EAN | 5702420010694 |
| Type | RA-N |
| Product group | Radiator Valves |
| Application | 2-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | Rp 3/8 |
| Connection size out | R 3/8 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | Normal flow valves with presetting |
| Design | Double angle left |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Dimension standard | Other permitted |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 120 °C |
| Kv value at setting 1 [m³/h] | 0.04 m³/h |
| Kv value at setting 2 [m³/h] | 0.08 m³/h |
| Kv value at setting 3 [m³/h] | 0.12 m³/h |
| Kv value at setting 4 [m³/h] | 0.19 m³/h |
| Kv value at setting 5 [m³/h] | 0.25 m³/h |
| Kv value at setting 6 [m³/h] | 0.33 m³/h |
| Kv value at setting 7 [m³/h] | 0.38 m³/h |
| Kv value at setting N [m³/h] | 0.56 m³/h |
| Kvs values [m³/h] | 0.65 m³/h |
| Presetting | yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 559d6453-eea7-4470-b478-48ca4a0b0c86 |
| SCIP dossier product name | RA-N & -IN Radiator valve 1 |
| Tailpiece type | Standard |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve size | DN 10 |
| Valve type | Normal flow |
| Working pressure [bar] [Max] | 10 bar |
| Application | 2-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | Rp 3/8 |
| Connection size out | R 3/8 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | Normal flow valves with presetting |
| Design | Double angle left |
| Differential pressure range [bar] [Max] | 0.6 bar |
| Dimension standard | Other permitted |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 120 °C |
| Kv value at setting 1 [m³/h] | 0.04 m³/h |
| Kv value at setting 2 [m³/h] | 0.08 m³/h |
| Kv value at setting 3 [m³/h] | 0.12 m³/h |
| Kv value at setting 4 [m³/h] | 0.19 m³/h |
| Kv value at setting 5 [m³/h] | 0.25 m³/h |
| Kv value at setting 6 [m³/h] | 0.33 m³/h |
| Kv value at setting 7 [m³/h] | 0.38 m³/h |
| Kv value at setting N [m³/h] | 0.56 m³/h |
| Kvs values [m³/h] | 0.65 m³/h |
| Presetting | yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 559d6453-eea7-4470-b478-48ca4a0b0c86 |
| SCIP dossier product name | RA-N & -IN Radiator valve 1 |
| Tailpiece type | Standard |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve size | DN 10 |
| Valve type | Normal flow |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 013G0232 013G0232 EN_013G0037.pdf | 600 Kbytes |
|
