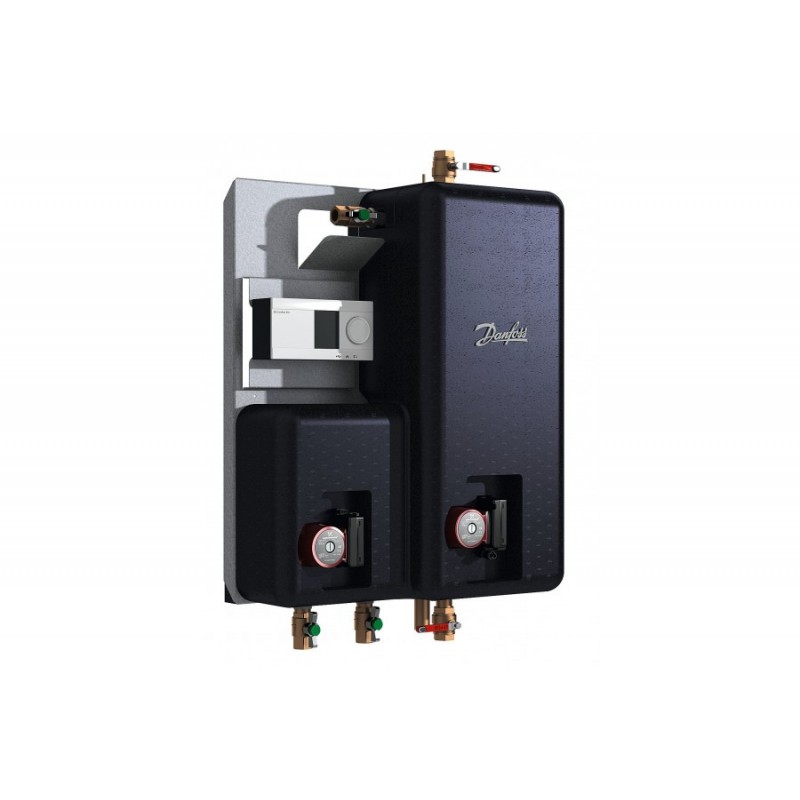

004X1540 DANFOSS HEATING TD-FLS 175kW PUMP-CTRL ECL
004X1540
DANFOSS HEATING
TD-FLS 175kW PUMP-CTRL ECL
DHW system, TD-FLS, 175 kW
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲TD-FLS 175kW PUMP-CTRL ECL
Product details
| Gross weight | 60 Kilogram |
| Net weight | 40 Kilogram |
| Volume | 0.885 Cubic meter |
| EAN | 5715162745441 |
| Type | TD-FLS |
| Product group | DHW system |
| Gross weight | 60 Kilogram |
| Net weight | 40 Kilogram |
| Volume | 0.885 Cubic meter |
| EAN | 5715162745441 |
| Type | TD-FLS |
| Product group | DHW system |
| Allowed temperature [˚C] [Min] | 2 °C |
| Application type | Fresh water modules |
| Approval | CE |
| Capacity [kW] | 175 kW |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Circulation connection size | G1" |
| Circulation connection type | Internal thread |
| Circulation pipe size | DN25 |
| Connection direction primary and secondary | Vertical |
| Contains batteries | No |
| Cover material | EPP Foam |
| Current [A] [Max] | 2 A |
| DCW static pressure [bar] [Min] | 1 bar |
| Delta P secondary [bar] [Max] | 0.24 bar |
| Depth without cover [mm] | 298 mm |
| Description | TD-FLS 175kW PUMP-CTRL ECL |
| Design | Wall mounted |
| DHW circulation | Yes |
| DHW circulation pump brand | Grundfos |
| DHW circulation pump type | UPM GEO N |
| DHW connection size | G1 1/4" |
| DHW connection type | Internal thread |
| DHW Control type | Electronic |
| DHW controller name | ECL 310 |
| DHW pipe size | DN32 |
| EU RoHS compliance | Out of scope |
| Flow circulation [m3/h] [Max] | 2 m³/h |
| Flow primary [m3/h] [Max] | 3.35 m³/h |
| Flow secondary [m3/h] [Max] | 3 m³/h |
| HE connection size | Rp1 1/4" |
| HE connection type | Internal thread |
| HE pipe size | DN32 |
| Heating pump brand | Grundfos |
| Heating pump type | UPM GEO |
| Height without cover [mm] | 1077 mm |
| HEX DHW alloy | 1.4404 |
| HEX DHW brazed/gasketed material | Brazed copper |
| Insulation material | EPP Foam |
| Manufacturer's name | Danfoss |
| P circulation [bar] [Max] | 0.25 bar |
| Package depth [mm] | 800 mm |
| Package height [mm] | 500 mm |
| Package width [mm] | 1200 mm |
| PED category | § 4.3 |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Pressure primary [bar] [Max] | 10 bar |
| Pressure secondary [bar] [Max] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Substation version | TD-FLS, 175kW, pump, ECL |
| Supply temperature construction [˚C] | 90 °C |
| Supply voltage [V] AC | 230 V |
| UL evaluated | Out of scope |
| Width without cover [mm] | 700 mm |
| Allowed temperature [˚C] [Min] | 2 °C |
| Application type | Fresh water modules |
| Approval | CE |
| Capacity [kW] | 175 kW |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Circulation connection size | G1" |
| Circulation connection type | Internal thread |
| Circulation pipe size | DN25 |
| Connection direction primary and secondary | Vertical |
| Contains batteries | No |
| Cover material | EPP Foam |
| Current [A] [Max] | 2 A |
| DCW static pressure [bar] [Min] | 1 bar |
| Delta P secondary [bar] [Max] | 0.24 bar |
| Depth without cover [mm] | 298 mm |
| Description | TD-FLS 175kW PUMP-CTRL ECL |
| Design | Wall mounted |
| DHW circulation | Yes |
| DHW circulation pump brand | Grundfos |
| DHW circulation pump type | UPM GEO N |
| DHW connection size | G1 1/4" |
| DHW connection type | Internal thread |
| DHW Control type | Electronic |
| DHW controller name | ECL 310 |
| DHW pipe size | DN32 |
| EU RoHS compliance | Out of scope |
| Flow circulation [m3/h] [Max] | 2 m³/h |
| Flow primary [m3/h] [Max] | 3.35 m³/h |
| Flow secondary [m3/h] [Max] | 3 m³/h |
| HE connection size | Rp1 1/4" |
| HE connection type | Internal thread |
| HE pipe size | DN32 |
| Heating pump brand | Grundfos |
| Heating pump type | UPM GEO |
| Height without cover [mm] | 1077 mm |
| HEX DHW alloy | 1.4404 |
| HEX DHW brazed/gasketed material | Brazed copper |
| Insulation material | EPP Foam |
| Manufacturer's name | Danfoss |
| P circulation [bar] [Max] | 0.25 bar |
| Package depth [mm] | 800 mm |
| Package height [mm] | 500 mm |
| Package width [mm] | 1200 mm |
| PED category | § 4.3 |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Pressure primary [bar] [Max] | 10 bar |
| Pressure secondary [bar] [Max] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Substation version | TD-FLS, 175kW, pump, ECL |
| Supply temperature construction [˚C] | 90 °C |
| Supply voltage [V] AC | 230 V |
| UL evaluated | Out of scope |
| Width without cover [mm] | 700 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 004X1540 EN_004X1540.pdf | 915 Kbytes |
|
