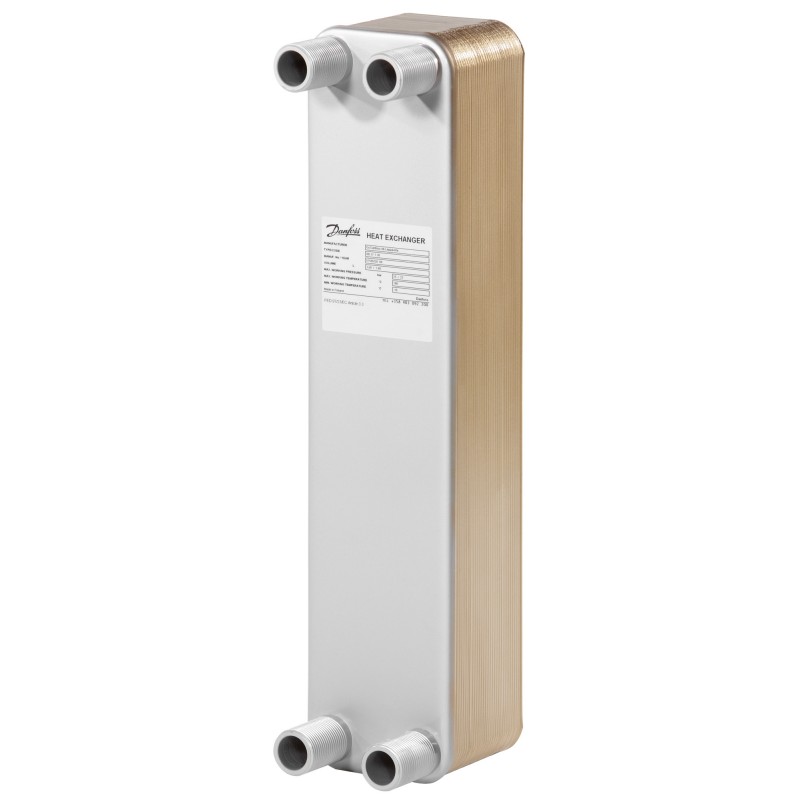

004B1709 DANFOSS HEATING XB37H-1-30 2 25 A 1G1 1G1 50mm connect.
004B1709
DANFOSS HEATING
XB37H-1-30_2_25_A_1G1_1G1 50mm connect.
Micro Plate heat exchanger, XB37H-1, Number of plates: 30
Home > DANFOSS HEATING
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
More info
▲Brazing material: Copper, 25 bar
Product details
| Gross weight | 7.4 Kg |
| Net weight | 7.1 Kg |
| Volume | 11.32 Liter |
| EAN | 5702421664063 |
| Gross weight | 7.4 Kg |
| Net weight | 7.1 Kg |
| Volume | 11.32 Liter |
| EAN | 5702421664063 |
| Approval | PED |
| Brazing material | Copper |
| Connection length 1 [mm] | 50 mm |
| Connection length 2 [mm] | 50 mm |
| Connection length side 1 [mm] | 50 mm |
| Connection length side 2 [mm] | 50 mm |
| Connection size 1 | 1 |
| Connection size 2 | 1 |
| Connection standard | DIN ISO 228/1 |
| Connection type 1 | G |
| Connection type 2 | G |
| Fluid Group | 2 |
| Horizontal center porthole[mm] | 72 mm |
| In scope of WEEE and contain batteries | No |
| Material Description (Short Te | XB37H-1-30_2_25_A_1G1_1G1 50mm |
| Max working pressure 1 [bar] | 25 bar |
| Max working pressure 2 [bar] | 25 bar |
| Number of passes | 1 |
| Number of plates | 30 |
| Packing format | Single pack |
| PED category | Art. 4, par. 3 |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | H |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 180 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 525 mm |
| Total width [mm] | 119 mm |
| Type | XB37H-1 |
| Vertical center porthole 1[mm] | 479 mm |
| Vertical center porthole 2[mm] | 479 mm |
| Vertical center porthole side 1 [mm] | 479 mm |
| Volume per channel 1 [l] | 0.069 L |
| Volume per channel 2 [l] | 0.069 L |
| Approval | PED |
| Brazing material | Copper |
| Connection length 1 [mm] | 50 mm |
| Connection length 2 [mm] | 50 mm |
| Connection length side 1 [mm] | 50 mm |
| Connection length side 2 [mm] | 50 mm |
| Connection size 1 | 1 |
| Connection size 2 | 1 |
| Connection standard | DIN ISO 228/1 |
| Connection type 1 | G |
| Connection type 2 | G |
| Fluid Group | 2 |
| Horizontal center porthole[mm] | 72 mm |
| In scope of WEEE and contain batteries | No |
| Material Description (Short Te | XB37H-1-30_2_25_A_1G1_1G1 50mm |
| Max working pressure 1 [bar] | 25 bar |
| Max working pressure 2 [bar] | 25 bar |
| Number of passes | 1 |
| Number of plates | 30 |
| Packing format | Single pack |
| PED category | Art. 4, par. 3 |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | H |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 180 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 525 mm |
| Total width [mm] | 119 mm |
| Type | XB37H-1 |
| Vertical center porthole 1[mm] | 479 mm |
| Vertical center porthole 2[mm] | 479 mm |
| Vertical center porthole side 1 [mm] | 479 mm |
| Volume per channel 1 [l] | 0.069 L |
| Volume per channel 2 [l] | 0.069 L |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 004B1709 004B1709 ES_004H7285.pdf | 902 Kbytes |
 |
