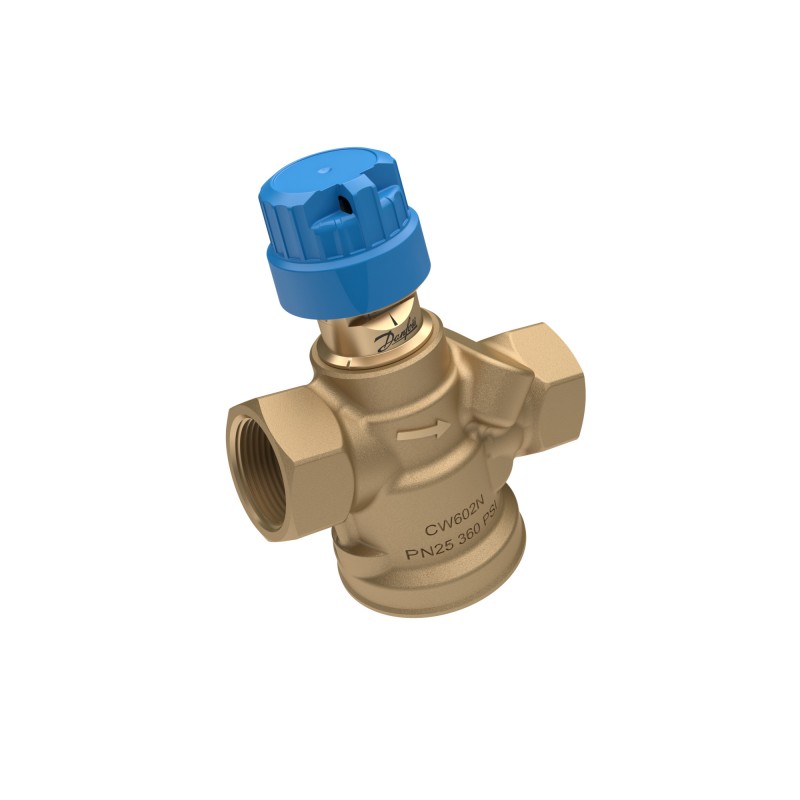

003Z8322 DANFOSS HEATING AB-QM DN 15 HF w/o TP, Int.
003Z8322
DANFOSS HEATING
AB-QM DN 15 HF w/o TP, Int.
AB-QM, DN 15, High flow, Without test plugs, Internal thread
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲AB-QM DN 15 High flow, without test plugs, Internal thread, PN25, pressure independent balancing and control valve
Product details
| Gross weight | 0.558 Kilogram |
| Net weight | 0.503 Kilogram |
| Volume | 0.968 Liter |
| EAN | 5714279039986 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 0.558 Kilogram |
| Net weight | 0.503 Kilogram |
| Volume | 0.968 Liter |
| EAN | 5714279039986 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | AB-QM DN 15 High flow, without test plugs, Internal thread, PN25, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| Differential pressure [kPa] [Min] | 25 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 1.2 m³/h |
| Flow type | High flow |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b2a642ef-a80a-42a1-a9af-6eb95466dd1d |
| SCIP dossier product name | AB-QM 10-32 - 4g |
| Starting pressure [kPa] | 32 KPa |
| Stroke [mm] | 4 mm |
| Test plugs | Without test plugs |
| Valve body material | DZR Brass (CW 602N) |
| Valve size | DN 15 |
| Version | AB-QM 4.0 |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | AB-QM DN 15 High flow, without test plugs, Internal thread, PN25, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| Differential pressure [kPa] [Min] | 25 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 1.2 m³/h |
| Flow type | High flow |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b2a642ef-a80a-42a1-a9af-6eb95466dd1d |
| SCIP dossier product name | AB-QM 10-32 - 4g |
| Starting pressure [kPa] | 32 KPa |
| Stroke [mm] | 4 mm |
| Test plugs | Without test plugs |
| Valve body material | DZR Brass (CW 602N) |
| Valve size | DN 15 |
| Version | AB-QM 4.0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003Z8322 003Z8322 EN_003Z8307.pdf | 5 Mbytes |
|
