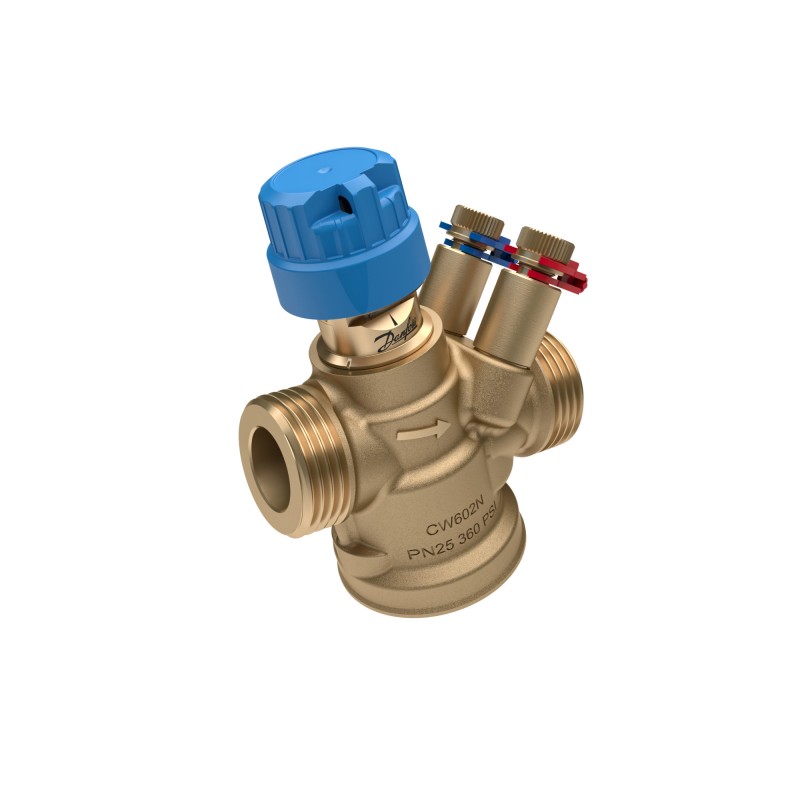

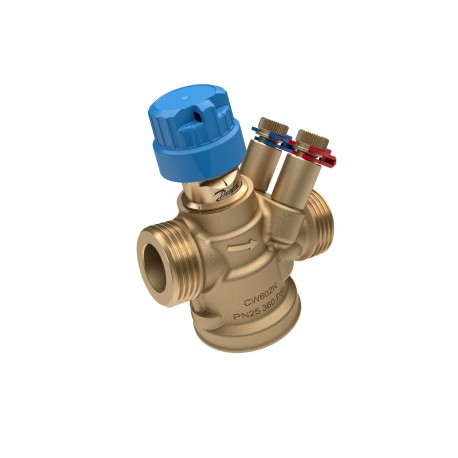

003Z8204 DANFOSS HEATING AB-QM DN 20 HF with TP, Ext.
Reference: 003Z8204
Manufacturer: DANFOSS HEATING
Description:
AB-QM DN 20 HF with TP, Ext.
AB-QM, DN 20, High flow, With test plugs, External Thread
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
AB-QM DN 20 HF, with test plugs, external thread, PN25, pressure independent balancing and control valve
Product details
| Gross weight | 0.753 Kilogram |
| Net weight | 0.697 Kilogram |
| Volume | 1 Liter |
| EAN | 5714279039351 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 0.753 Kilogram |
| Net weight | 0.697 Kilogram |
| Volume | 1 Liter |
| EAN | 5714279039351 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-QM DN 20 HF, with test plugs, external thread, PN25, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| Differential pressure [kPa] [Min] | 25 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 1.9 m³/h |
| Flow type | High flow |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | f034d530-3ba3-4a14-b35c-6b59f907acbb |
| SCIP dossier product name | AB-QM DN 15 HF with TP. Ext. |
| Starting pressure [kPa] | 25 KPa |
| Stroke [mm] | 4 mm |
| Test plugs | With test plugs |
| Valve body material | DZR Brass (CW 602N) |
| Valve size | DN 20 |
| Version | AB-QM 4.0 |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-QM DN 20 HF, with test plugs, external thread, PN25, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| Differential pressure [kPa] [Min] | 25 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 1.9 m³/h |
| Flow type | High flow |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | f034d530-3ba3-4a14-b35c-6b59f907acbb |
| SCIP dossier product name | AB-QM DN 15 HF with TP. Ext. |
| Starting pressure [kPa] | 25 KPa |
| Stroke [mm] | 4 mm |
| Test plugs | With test plugs |
| Valve body material | DZR Brass (CW 602N) |
| Valve size | DN 20 |
| Version | AB-QM 4.0 |
