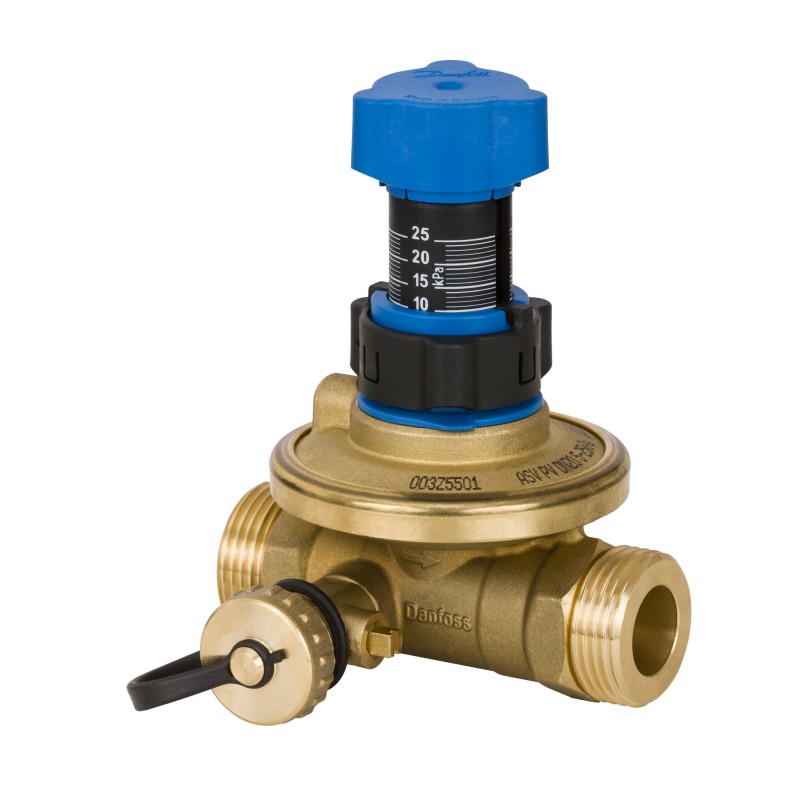

003Z5615 DANFOSS HEATING ASV-PV DN40 5-25 kPa Ext. Thread
003Z5615
DANFOSS HEATING
ASV-PV DN40 5-25 kPa Ext. Thread
ASV-PV 4G, DN 40, 5 KPa - 25 KPa, External Thread, With insulation
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲ASV-PV DN 40, 5-25 kPa, External thread, with insulation, automatic balancing valve
Product details
| Gross weight | 4.12 Kilogram |
| Net weight | 3.786 Kilogram |
| Volume | 9.72 Liter |
| EAN | 5710104081717 |
| Type | ASV-PV 4G |
| Product group | Automatic balancing |
| Gross weight | 4.12 Kilogram |
| Net weight | 3.786 Kilogram |
| Volume | 9.72 Liter |
| EAN | 5710104081717 |
| Type | ASV-PV 4G |
| Product group | Automatic balancing |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | ASV-PV DN 40, 5-25 kPa, External thread, with insulation, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] | 250 KPa |
| Differential pressure setting [kPa] [Max] | 25 KPa |
| Differential pressure setting [kPa] [Min] | 5 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Factory setting [kPa] | 10 KPa |
| Impulse tube length [m] | 1.5 m |
| Insulation | With insulation |
| Kvs values [m³/h] | 10 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 0 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4f955b0e-1f38-4945-8238-1c1c60373eeb |
| SCIP dossier product name | "ASV-PV DN 15 - 50" |
| Shut-off function | Yes |
| Valve body material | Brass |
| Valve size | DN 40 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | ASV-PV DN 40, 5-25 kPa, External thread, with insulation, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] | 250 KPa |
| Differential pressure setting [kPa] [Max] | 25 KPa |
| Differential pressure setting [kPa] [Min] | 5 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Factory setting [kPa] | 10 KPa |
| Impulse tube length [m] | 1.5 m |
| Insulation | With insulation |
| Kvs values [m³/h] | 10 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 0 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4f955b0e-1f38-4945-8238-1c1c60373eeb |
| SCIP dossier product name | "ASV-PV DN 15 - 50" |
| Shut-off function | Yes |
| Valve body material | Brass |
| Valve size | DN 40 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003Z5615 003Z5615 EN_003Z5516.pdf | 328 Kbytes |
|
