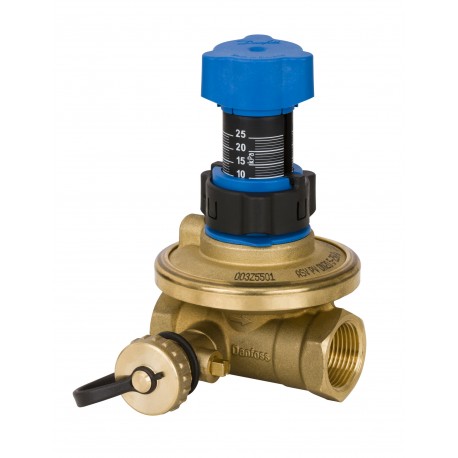

003Z5504 DANFOSS HEATING ASV-PV DN32 5-25 kPa without insulation
Reference: 003Z5504
Manufacturer: DANFOSS HEATING
Description:
ASV-PV DN32 5-25 kPa without insulation
ASV-PV 4G, DN 32, 5 KPa - 25 KPa, Internal thread, Without insulation
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
LAST VIEWED
MORE INFO
ASV-PV DN 32, 5-25 kPa, internal thread, without insulation, automatic balancing valve
Product details
| Gross weight | 2.898 Kilogram |
| Net weight | 2.874 Kilogram |
| Volume | 6.318 Liter |
| EAN | 5710104081571 |
| Type | ASV-PV 4G |
| Product group | Automatic balancing |
| Gross weight | 2.898 Kilogram |
| Net weight | 2.874 Kilogram |
| Volume | 6.318 Liter |
| EAN | 5710104081571 |
| Type | ASV-PV 4G |
| Product group | Automatic balancing |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | ASV-PV DN 32, 5-25 kPa, internal thread, without insulation, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] | 250 KPa |
| Differential pressure setting [kPa] [Max] | 25 KPa |
| Differential pressure setting [kPa] [Min] | 5 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Factory setting [kPa] | 10 KPa |
| Impulse tube length [m] | 1.5 m |
| Insulation | Without insulation |
| Kvs values [m³/h] | 6.3 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 0 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4f955b0e-1f38-4945-8238-1c1c60373eeb |
| SCIP dossier product name | "ASV-PV DN 15 - 50" |
| Shut-off function | Yes |
| Valve body material | Brass |
| Valve size | DN 32 |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | ASV-PV DN 32, 5-25 kPa, internal thread, without insulation, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] | 250 KPa |
| Differential pressure setting [kPa] [Max] | 25 KPa |
| Differential pressure setting [kPa] [Min] | 5 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Factory setting [kPa] | 10 KPa |
| Impulse tube length [m] | 1.5 m |
| Insulation | Without insulation |
| Kvs values [m³/h] | 6.3 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 0 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4f955b0e-1f38-4945-8238-1c1c60373eeb |
| SCIP dossier product name | "ASV-PV DN 15 - 50" |
| Shut-off function | Yes |
| Valve body material | Brass |
| Valve size | DN 32 |
