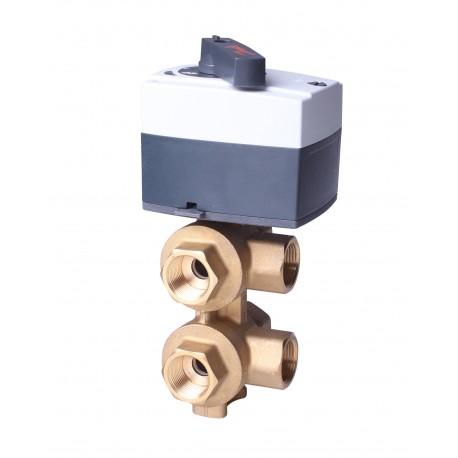

003Z3151 DANFOSS HEATING ChangeOver valve DN20
Reference: 003Z3151
Manufacturer: DANFOSS HEATING
Description:
ChangeOver valve DN20
ChangeOver6 valve, DN 20
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
ChangeOver6 DN 20, motorized 6-port ball valve
Product details
| Gross weight | 1.854 Kilogram |
| Net weight | 1.75 Kilogram |
| Volume | 1.386 Liter |
| EAN | 5702428960212 |
| Type | ChangeOver6 valve |
| Product group | Other valves |
| Gross weight | 1.854 Kilogram |
| Net weight | 1.75 Kilogram |
| Volume | 1.386 Liter |
| EAN | 5702428960212 |
| Type | ChangeOver6 valve |
| Product group | Other valves |
| Actuator connection | Quick fix connection |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | ChangeOver6 DN 20, motorized 6-port ball valve |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| For valve size | DN 20 |
| Kvs values [m³/h] | 4 m³/h |
| Label product | Yes |
| Media temperature [°C] [Max] | 90 °C |
| Media temperature [°C] [Min] | 0 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d1cc861f-3685-4955-b9ef-2f9cb2c117ec |
| SCIP dossier product name | 003Z3151 |
| Shut off pressure [kPa] [Max] | 801 KPa |
| Shut-off function | Yes |
| Valve body material | DZR Brass (CW 602N) |
| Actuator connection | Quick fix connection |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | ChangeOver6 DN 20, motorized 6-port ball valve |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| For valve size | DN 20 |
| Kvs values [m³/h] | 4 m³/h |
| Label product | Yes |
| Media temperature [°C] [Max] | 90 °C |
| Media temperature [°C] [Min] | 0 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d1cc861f-3685-4955-b9ef-2f9cb2c117ec |
| SCIP dossier product name | 003Z3151 |
| Shut off pressure [kPa] [Max] | 801 KPa |
| Shut-off function | Yes |
| Valve body material | DZR Brass (CW 602N) |
