DANFOSS HEATING003Z3150 DANFOSS HEATING ChangeOver valve DN15

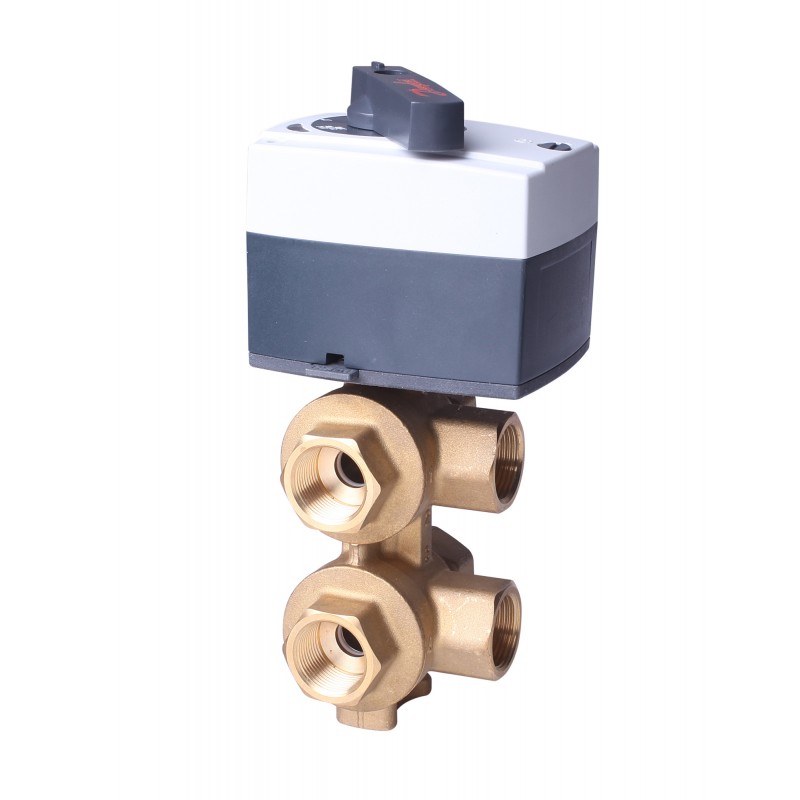

DANFOSS HEATING 003Z3150 003Z3150 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003Z3150 DANFOSS HEATING ChangeOver valve DN15

Reference: 003Z3150

Manufacturer: DANFOSS HEATING

Description:

ChangeOver valve DN15
ChangeOver6 valve, DN15

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 177,57 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ChangeOver6 DN 15, motorized 6-port ball valve

Product details

Gross weight1.166 Kilogram
Net weight1.15 Kilogram
Volume0.819 Liter
EAN5702428926140
TypeChangeOver6 valve
Product groupOther valves
Gross weight1.166 Kilogram
Net weight1.15 Kilogram
Volume0.819 Liter
EAN5702428926140
TypeChangeOver6 valve
Product groupOther valves

Actuator connectionQuick fix connection
China RoHS complianceOut of scope
Connection typesInternal thread
Contains batteriesNo
DescriptionChangeOver6 DN 15, motorized 6-port ball valve
EPD availableYes
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
For valve sizeDN15
Kvs values [m³/h]2.4 m³/h
Label productYes
Media temperature [°C] [Max]90 °C
Media temperature [°C] [Min]0 °C
Pressure classPN 16
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.d1cc861f-3685-4955-b9ef-2f9cb2c117ec
SCIP dossier product name003Z3150
Shut off pressure [kPa] [Max]800 KPa
Shut-off functionYes
Valve body materialDZR Brass (CW 602N)
Actuator connectionQuick fix connection
China RoHS complianceOut of scope
Connection typesInternal thread
Contains batteriesNo
DescriptionChangeOver6 DN 15, motorized 6-port ball valve
EPD availableYes
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
For valve sizeDN15
Kvs values [m³/h]2.4 m³/h
Label productYes
Media temperature [°C] [Max]90 °C
Media temperature [°C] [Min]0 °C
Pressure classPN 16
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.d1cc861f-3685-4955-b9ef-2f9cb2c117ec
SCIP dossier product name003Z3150
Shut off pressure [kPa] [Max]800 KPa
Shut-off functionYes
Valve body materialDZR Brass (CW 602N)

DATASHEET - PDF

Title
Size
Type
003Z3150 003Z3150 ES_003Z3150.pdf
2 Mbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
