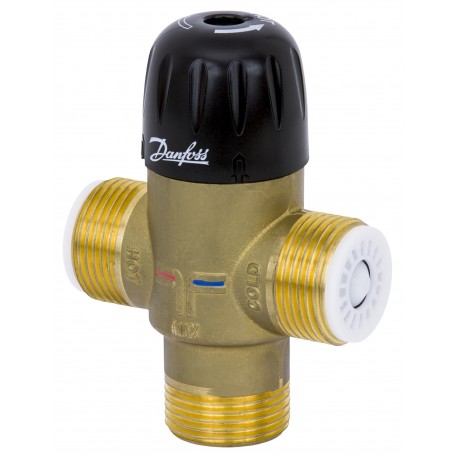

003Z3146 DANFOSS HEATING Mixing ValveTVM-W DN25 2g with NR
003Z3146
DANFOSS HEATING
Mixing ValveTVM-W DN25 2g with NR
TVM-W, DN 25
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲TVM-W DN 25, thermostatic mixing valve
Product details
| Gross weight | 0.498 Kilogram |
| Net weight | 0.498 Kilogram |
| Volume | 0.51 Liter |
| EAN | 5702425101717 |
| Type | TVM-W |
| Product group | Hot water balancing |
| Gross weight | 0.498 Kilogram |
| Net weight | 0.498 Kilogram |
| Volume | 0.51 Liter |
| EAN | 5702425101717 |
| Type | TVM-W |
| Product group | Hot water balancing |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | TVM-W DN 25, thermostatic mixing valve |
| Differential pressure range [bar] [Max] | 5 bar |
| EU RoHS compliance | Yes with exemptions |
| Factory setting [°C] | 50 °C |
| Integrated non-return valve | Yes |
| Kvs value with non-return valve [m3/h] | 3.3 m³/h |
| Label product | Yes |
| Media temperature [°C] [Max] | 90 °C |
| Pressure class | PN 10 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| RoHS Compliant | Out of scope |
| SCIP dossier no. | 053b7914-9873-46c2-9c7f-7244cdc4e115 |
| SCIP dossier product name | "003Z3146" |
| Temperature setting range [°C] [Max] | 70 °C |
| Temperature setting range [°C] [Min] | 35 °C |
| Valve body material | DZR brass + antilimescale treatment |
| Valve size | DN 25 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | TVM-W DN 25, thermostatic mixing valve |
| Differential pressure range [bar] [Max] | 5 bar |
| EU RoHS compliance | Yes with exemptions |
| Factory setting [°C] | 50 °C |
| Integrated non-return valve | Yes |
| Kvs value with non-return valve [m3/h] | 3.3 m³/h |
| Label product | Yes |
| Media temperature [°C] [Max] | 90 °C |
| Pressure class | PN 10 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| RoHS Compliant | Out of scope |
| SCIP dossier no. | 053b7914-9873-46c2-9c7f-7244cdc4e115 |
| SCIP dossier product name | "003Z3146" |
| Temperature setting range [°C] [Max] | 70 °C |
| Temperature setting range [°C] [Min] | 35 °C |
| Valve body material | DZR brass + antilimescale treatment |
| Valve size | DN 25 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003Z3146 003Z3146 ES_003Z3145.pdf | 746 Kbytes |
|
